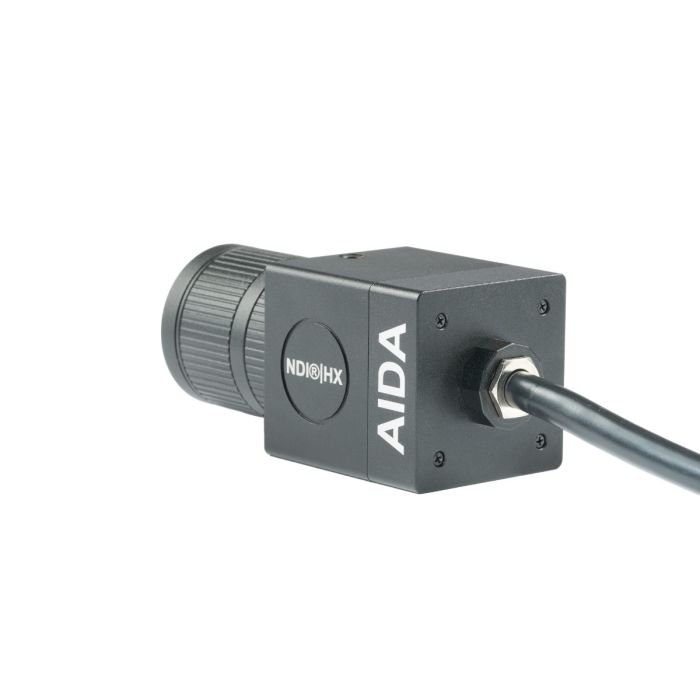

AIDA Imaging Full HD NDI HX/IP Streaming Weatherproof POV Camera with 2.8-12mm Varifocal Lens

SKU
HD-NDI-VF
$465.00

Product Highlights:

  • IP54 Weatherproof NDI Streaming Camera
  • Up to 1080p60 NDI|HX Video
  • UDP, SRT, RTMP, RTSP Streaming Protocols
  • 1/3" CMOS Image Sensor
  • 2.8 to 12mm Varifocal Lens
  • VISCA over IP Control
  • Integrated 10' I/O Cable
  • IP and NDI via Single RJ45 Output
  • Power via DC Input or PoE+ Dongle

Stream 1080p60 video in broadcast, education, and live production applications either indoors or outdoors using this AIDA Imaging Full HD NDI|HX/IP Streaming Weatherproof POV Camera. This HD-NDI-VF model features a 2.8 to 12mm varifocal lens with a 120° field of view at its wide end. Rated at IP54, the camera is weatherproof for use in outdoor environments. An integrated 10' I/O cable facilitates the camera's RJ45 IP and NDI streaming output and USB-A port for tweaks to the camera's settings.

VISCA over IP control protocol is supported by the device as well as UDP, SRT, RTSP, and RTMP IP streaming. Both NDI and IP streams are simultaneously output via a single Ethernet connection. An included PoE+ dongle adapter allows the RJ45 connection to provide power to the camera. Alternatively, the 12 VDC input port connects to the included power supply for another installation option.

Features at a Glance
  • WebUI streams directly to social media platforms and controls image parameters over IP
  • Versatile design with top and bottom tripod mounts
  • IP54 rated varifocal lens with 120° wide FOV and 36° tele FOV
  • Small form-factor and rugged design
  • PoE+ dongle adapter and power supply included
Write Your Own Review
You're reviewing:AIDA Imaging Full HD NDI HX/IP Streaming Weatherproof POV Camera with 2.8-12mm Varifocal Lens
Your Rating

Items Included:

  • AIDA Imaging Full HD NDI HX/IP Streaming Weatherproof POV Camera with 2.8-12mm Varifocal Lens
  • PoE+ Dongle Adapter
  • 12 VDC Power Supply and Socket Adapters
  • Limited 2-Year Manufacturer Warranty
More Information
SPECS
General
Sensor Size
0.21 x 0.1" / 5.35 x 3 mm (16:9)
Minimum Illumination
0.2 lux (Day)
0.1 lux (Night)
Image Sensor
1/3" CMOS
Output
IP (NDI|HX, SRT, RTMP, RTSP)
Pixel Size
2.75 x 2.75 μm
Color Space
4:2:2 (YCC) 10-bit
Protocols
IP: UDP|IP, RTSP|RTMP, SRT, NDI|HX
Control: VISCA over IP
Effective Pixels
1920 x 1080
Lens
2.8 to 12mm
White Balance
Auto, Manual (9000 to 11000K)
FOV
Wide: 120°
Tele" 36°
Inputs/Outputs
USB I/O
1 x USB-A Integrated Male Input
Video I/O
1x RJ45 Output
Resolutions
1080p at 60, 59.94, 50, 30, 29.97, 25, 24
1080i at 60, 59.94, 50
720p at 60, 59.94, 50
Power
Power Source
PoE, AC Adapter with Power Brick
DC Input Power
12 VDC
Physical
Mounting
2x Tripod Mount
Color
Black
Operating Conditions
32 to 104°F / 0 to 40°C
Cable Length
10' / 3 m
Dimensions
2.9 x 1.6 x 1.6" / 73 x 41 x 41 mm
Weight
16 oz / 454 g
Packaging Info
Package Weight
2.245 lb
Box Dimensions (LxWxH)
10.9 x 5.7 x 4.1"
