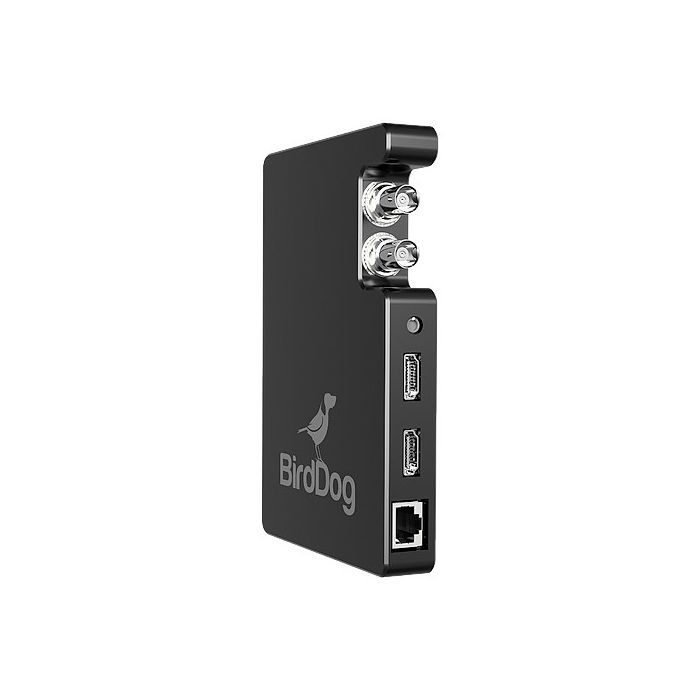

BirdDog Studio NDI SDI/HDMI to NDI Converter

SKU

BDSTUM01

$695.00

Product highlights:

Convert SDI/HDMI Input to NDI Output
Up to 1080p Video, HDMI and SDI Output
Tally Support, Web Management Interface
PoE (Power-over-Ethernet) Support

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Create a studio livestream production using NDI with the Studio NDI SDI/HDMI to NDI Converter from BirdDog. The Studio NDI inputs HDMI or 3G/HD/SD-SDI video and converts the signals to NDI (Network Device Interface) for live-streaming on a standard NDI network. The converter supports plug-and-play operation and can be powered via a power adapter, PoE (Power-over-Ethernet), or using a separately available V-mount or Gold mount battery plate. Configuration and software updates are made via a web interface and software updates can be applied to all BirdDog devices simultaneously.

The Studio NDI is universally compatible with any NDI compliant network device including the NewTek TriCaster and VMix live production systems. Remote cameras can easily be removed outside of the studio as the connection from BirdDog Studio NDI to your live show is via the standard Ethernet network. The Studio NDI can display tally onboard and externally via Tally out as well as both Program and Preview tally indicators.

SDI/HDMI to NDI (Network Device Interface) converter

SDI/HDMI cross converter

Onboard full screen & external tally light interface

802.3af/802.3at PoE (Power over Ethernet) compliant

SD, 720P, 1080i, and 1080p standards support

Flexible power options including PoE (Power over Ethernet)

Central management software interface (mobile and web)

HDMI 1.4 and 3G-SDI inputs and outputs

Simple plug-and-play operation

Compatible with all NDI compliant equipment

Access video resources such as cameras, PCs, consoles, and Blu-ray players from anywhere in the facility

Easily integrate tally into productions, even outside the studio

Simply set the display to be full screen tally or split screen to show both information and tally

Control and configure multiple BirdDog Studio NDI devices through our admin panel which is accessible via a web browser on both mobile devices and desktops

SDI and HDMI outputs are always live allowing you to convert from SDI to HDMI and vice versa

Connect a monitor to BirdDog Studio or simply use to loop out

Reviews

Write Your Own Review

You're reviewing:BirdDog Studio NDI SDI/HDMI to NDI Converter

Your Rating

Rating

1 star 2 stars 3 stars 4 stars 5 stars

Nickname

Summary

Review

items Included

Items included:

BirdDog Studio NDI SDI/HDMI to NDI Converter
12 VDC Power Adapter
D-Tap to Flying Leads DC Adapter
Limited 1-Year Warranty

Specification

BDSTUM01 - Specification

More Information

Input
Video Input Connectors :	1 x HDMI (HDMI 1.4) Female 1 x BNC (3G-SDI) Female
Input Video Format :	HDMI / SDI 1080p: 25/29.97 fps 1080i: 50/59.94 fps 720p: 50/59.94 fps PAL NTSC
Audio Input Connectors :	1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Stereo Analog Female
Embedded Audio Input :	HDMI SDI
Video Input Connectors :	1 x HDMI (HDMI 1.4) Female 1 x BNC (3G-SDI) Female
Input Video Format :	HDMI / SDI 1080p: 25/29.97 fps 1080i: 50/59.94 fps 720p: 50/59.94 fps PAL NTSC
Audio Input Connectors :	1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Stereo Analog Female
Embedded Audio Input :	HDMI SDI
Video Input Connectors :	1 x HDMI (HDMI 1.4) Female 1 x BNC (3G-SDI) Female
Input Video Format :	HDMI / SDI 1080p: 25/29.97 fps 1080i: 50/59.94 fps 720p: 50/59.94 fps PAL NTSC
Audio Input Connectors :	1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Stereo Analog Female
Embedded Audio Input :	HDMI SDI
Output
Video Output Connectors :	1 x BNC (3G-SDI / HD-SDI / SD-SDI) Female 1 x HDMI (HDMI 1.4) Female 1 x RJ45 (NDI) Female
Output Video Format :	HDMI / SDI / RJ45 1080p: 25/29.97 fps 1080i: 50/59.94 fps 720p: 50/59.94 fps PAL (768 x 576) NTSC
Audio Output Connectors :	1 x 1/8" / 3.5 mm TRS Stereo Analog Female
Embedded Audio Output :	HDMI RJ45 SDI
Video Output Connectors :	1 x BNC (3G-SDI / HD-SDI / SD-SDI) Female 1 x HDMI (HDMI 1.4) Female 1 x RJ45 (NDI) Female
Output Video Format :	HDMI / SDI / RJ45 1080p: 25/29.97 fps 1080i: 50/59.94 fps 720p: 50/59.94 fps PAL (768 x 576) NTSC
Audio Output Connectors :	1 x 1/8" / 3.5 mm TRS Stereo Analog Female
Embedded Audio Output :	HDMI RJ45 SDI
Video Output Connectors :	1 x BNC (3G-SDI / HD-SDI / SD-SDI) Female 1 x HDMI (HDMI 1.4) Female 1 x RJ45 (NDI) Female
Output Video Format :	HDMI / SDI / RJ45 1080p: 25/29.97 fps 1080i: 50/59.94 fps 720p: 50/59.94 fps PAL (768 x 576) NTSC
Audio Output Connectors :	1 x 1/8" / 3.5 mm TRS Stereo Analog Female
Embedded Audio Output :	HDMI RJ45 SDI
Connectivity
Other I/O :	1 x 3.5 mm GPI Output
Expansion Slots :	None
Other I/O :	1 x 3.5 mm GPI Output
Expansion Slots :	None
Other I/O :	1 x 3.5 mm GPI Output
Expansion Slots :	None
IP Streaming
Video IP Encoding :	NDI: 640 x 480 to 1920 x 1080 at 25p, 29.97p, 50i, 50p, 59.94i, 59.94p
Video IP Encoding :	NDI: 640 x 480 to 1920 x 1080 at 25p, 29.97p, 50i, 50p, 59.94i, 59.94p
Video IP Encoding :	NDI: 640 x 480 to 1920 x 1080 at 25p, 29.97p, 50i, 50p, 59.94i, 59.94p
Power
Power Connector :	1 x D-Tap (8 to 24 VDC) Input
PoE Support :	PoH 802.3at, PoE 802.3af
Power Connector :	1 x D-Tap (8 to 24 VDC) Input
PoE Support :	PoH 802.3at, PoE 802.3af
Power Connector :	1 x D-Tap (8 to 24 VDC) Input
PoE Support :	PoH 802.3at, PoE 802.3af
General
Dimensions:	5.6 x 4.1 x 0.7" / 14.2 x 10.5 x 1.9 cm
Warranty Length :	Limited 1-Year Warranty
Dimensions:	5.6 x 4.1 x 0.7" / 14.2 x 10.5 x 1.9 cm
Warranty Length :	Limited 1-Year Warranty
Dimensions:	5.6 x 4.1 x 0.7" / 14.2 x 10.5 x 1.9 cm
Warranty Length :	Limited 1-Year Warranty
Packaging Info
Package Weight :	1.99 lb
Box Dimensions (LxWxH) :	9.85 x 7.9 x 2.45"
Package Weight :	1.99 lb
Box Dimensions (LxWxH) :	9.85 x 7.9 x 2.45"
Package Weight :	1.99 lb
Box Dimensions (LxWxH) :	9.85 x 7.9 x 2.45"
