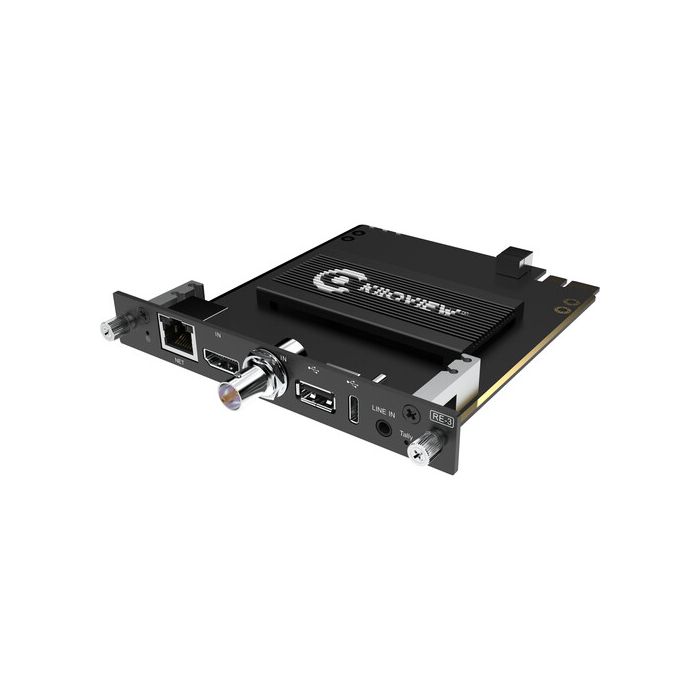

Kiloview RE-3 HDMI & 3G-SDI Dual-Channel 4K Rackmount Encoder for Cradle Series

SKU
RE-3
$499.00

Product Highlights:

  • Up to UHD 4K30 via HDMI
  • Supports Multiple Streaming Protocols
  • H.265 and H.264 Support
  • Streams to up to Eight Platforms
  • Low Capture/Encoding Latency

Part of the Kiloview Cradle Series of encoders and decoders, this RE-3 HDMI & 3G-SDI Dual Channel 4K Rackmount Video Encoder mounts in your cradle and features an HDMI input that can handle up to UHD 4K30 and a 3G-SDI input that supports up to 1080p60. Encoding of both inputs in H.264 and/or H.265 is possible at up to 1080p60 with multiple streaming protocols supported.

Boasting low capture/encoding latency, the RE-3 uses HEVC technology, which enables users to live stream to up to eight destinations simultaneously. Ideal for a variety of live production applications, including remote transmission and live streaming, the RE-3 enables users to combine both video inputs as one output or simultaneously encode both video inputs in 1080p.

Features at a Glance
  • HDMI and 3G-SDI encoding up to 4K30 / 1080p60
  • HDMI input with four-channel embedded audio
  • 3G-SDI input with eight-channel embedded audio
  • H.265/H.264 codec and multiple IP streaming protocols support including NDI|HX2, NDI|HX3, SRT, RTMP/ RTMPS, HLS, TS over UDP, RTP/RTSP
  • Up to eight destinations live streaming available
  • High-quality video deinterlacing
  • Multiple audio encoding formats support including AAC/MPEG-4/MPEG-3/MPEG-2/Opus/G.711
  • OSD available
  • Low capture/encoding latency
  • NTP server support
  • Local and NAS recording
  • KiloLink Server
  • Kiloview Intercom System (KIS)
Write Your Own Review
You're reviewing:Kiloview RE-3 HDMI & 3G-SDI Dual-Channel 4K Rackmount Encoder for Cradle Series
Your Rating

Items Included:

  • Kiloview RE-3 HDMI & 3G-SDI Dual-Channel 4K Rackmount Encoder for Cradle Series
  • Limited 1-Year Manufacturer Warranty



More Information
SPECS
IP Video
H.264/H.265:
3840 x 2160 at 30p Encoding
H.264/H.265:
1920 x 1080 at 60p Encoding
IP Audio
AAC/G.711: Encoding
Simultaneous Streams
8 Streams
Video I/O
1x HDMI Input
1x BNC (3G-SDI)
Embedded Audio
HDMI Input: 4-Channel
SDI Input: 8-Channel
IP Encoding/Decoding
IP Video
H.264/H.265:
3840 x 2160 at 30p Encoding
H.264/H.265:
1920 x 1080 at 60p Encoding
IP Audio
AAC/G.711: Encoding
Transport Protocols
HLS, NDI/HX, NDI/HX2, NDI/HX3, ONVIF, RTMP, RTMPS, RTP, RTSP, SRT, TS-MPEG, UDP
Simultaneous Streams
8 Streams
Wireless
Wireless
No
Wi-Fi
No
Bluetooth
No
Cellular Support
No
Interfaces
Video I/O
1x HDMI Input
1x BNC (3G-SDI)
Audio I/O
1x 1/8" / 3.5 mm TRS Input
Other I/O
1x RJ45 Gigabit Ethernet
Embedded Audio
HDMI Input: 4-Channel
SDI Input: 8-Channel
Packaging Info
Package Weight
0.735 lb
Box Dimensions (LxWxH)
7.7 x 7.4 x 1.8"
