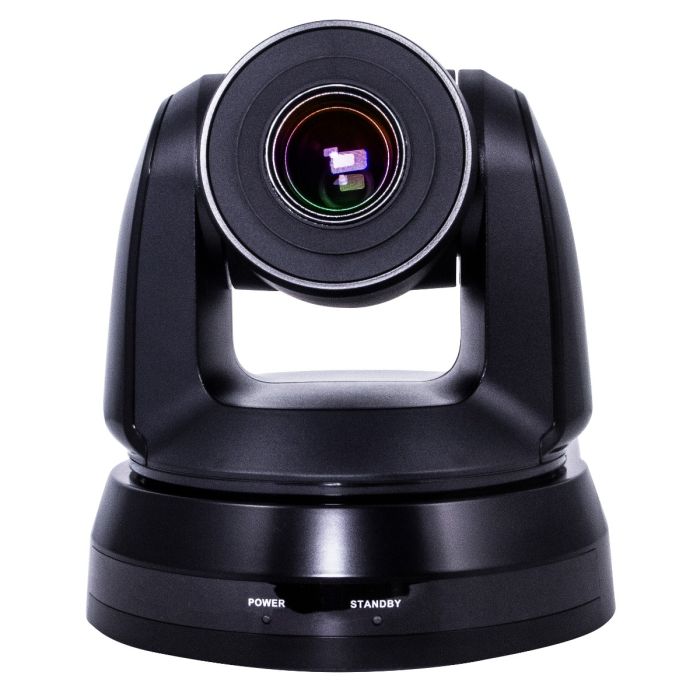

Marshall Electronics CV620 3G-SDI/HDMI PTZ Camera with 20x Optical Zoom (Black)

SKU

CV620-BK4

$1,799.00

Product Highlights:

Capture up to 1080p60 Video
2MP 1/2.8" Sensor, 5.3 to 110mm Lens
20x Optical Zoom, 12x Digital Zoom
3G/HD-SDI and HDMI Outputs
IR, RS-232, and RS-422 Serial Control
340° Pan, 120° Tilt

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

The black CV620 3G-SDI/HDMI PTZ Camera from Marshall Electronics is designed for professional conferencing applications. It captures video at up to 1080p resolution and is equipped with a 5.3 to 110mm lens for up to 20x optical zoom, and it also features a 12x digital zoom.

The CV620 features 3G/HD-SDI and HDMI outputs that support up to 1920 x 1080p60 resolution video. You can control and manage the camera using an IR remote or its RS-232 and RS-422 inputs with Pelco and VISCA serial protocols. It's compatible with separately available camera controllers such as the Marshall VS-PTC-IP. The camera is built with a smooth and quiet synchronous PTZ motor that pans 340° and tilts 120°.

Reviews

Write Your Own Review

You're reviewing:Marshall Electronics CV620 3G-SDI/HDMI PTZ Camera with 20x Optical Zoom (Black)

Your Rating

Rating

1 star 2 stars 3 stars 4 stars 5 stars

Nickname

Summary

Review

items Included

Items Included:

Marshall Electronics CV620 3G-SDI/HDMI PTZ Camera with 20x Optical Zoom (Black)
Remote Control
Power Adapter with Power Cord
RS-422 Connector
Ceiling Mount Kit
Limited 1-Year Warranty

Downloads

Specification

CV620-BK4 - Specification

More Information

Image Sensor
Image Sensor:	1-Chip 1/2.8" CMOS Sensor
Sensor Resolution:	1920 x 1080 (2.0 MP)
Image Sensor:	1-Chip 1/2.8" CMOS Sensor
Sensor Resolution:	1920 x 1080 (2.0 MP)
Camera
Max Digital Zoom:	12x
Flip / Mirror Support:	Image Flip, Mirror (Vertical)
Max Digital Zoom:	12x
Flip / Mirror Support:	Image Flip, Mirror (Vertical)
Lens
Optical Zoom Ratio:	20x
Focal Length:	4.7 to 94mm
Maximum Aperture:	f/1.6 to 3.5
Focus Control:	Autofocus Manual Focus
Optical Zoom Ratio:	20x
Focal Length:	4.7 to 94mm
Maximum Aperture:	f/1.6 to 3.5
Focus Control:	Autofocus Manual Focus
Video Output
Broadcast System Compatibility:	NTSC
Output Formats:	SDI, HDMI: 1920 x 1080p at 25, 29.97, 30, 50, 59.94, 60 fps 1920 x 1080i at 50, 59.94, 60 fps 1280 x 720p at 29.97, 30, 59.94, 60 fps
Embedded Audio:	SDI: 2-Channel HDMI: 2-Channel
Broadcast System Compatibility:	NTSC
Output Formats:	SDI, HDMI: 1920 x 1080p at 25, 29.97, 30, 50, 59.94, 60 fps 1920 x 1080i at 50, 59.94, 60 fps 1280 x 720p at 29.97, 30, 59.94, 60 fps
Embedded Audio:	SDI: 2-Channel HDMI: 2-Channel
Control
Presets:	9 via IR, RS-232
Move Speed:	Pan: 5 to 300°/sec Tilt: 5 to 300°/sec
Movement Range:	Pan: 340° Tilt: 120°
Tally Light:	Yes
Supported Control Protocols:	IR Pelco-D RS-232 RS-422 VISCA
Presets:	9 via IR, RS-232
Move Speed:	Pan: 5 to 300°/sec Tilt: 5 to 300°/sec
Movement Range:	Pan: 340° Tilt: 120°
Tally Light:	Yes
Supported Control Protocols:	IR Pelco-D RS-232 RS-422 VISCA
Interfaces
Video Output Connectors:	1 x BNC (3G-SDI) Male 1 x HDMI Type A Female
Control Interface:	1 x 8-Pin Mini-DIN (RS-232) Output 1 x 8-Pin Mini-DIN (RS-232) Input 1 x 9-Pin Terminal Block (RS-422)
Video Output Connectors:	1 x BNC (3G-SDI) Male 1 x HDMI Type A Female
Control Interface:	1 x 8-Pin Mini-DIN (RS-232) Output 1 x 8-Pin Mini-DIN (RS-232) Input 1 x 9-Pin Terminal Block (RS-422)
General
Security Lock Support:	Kensington Lock Slot
Dimensions:	7.33 x 7.3 x 6.85" / 186.2 x 185.5 x 174 mm
Weight:	4.41 lb / 2 kg
Security Lock Support:	Kensington Lock Slot
Dimensions:	7.33 x 7.3 x 6.85" / 186.2 x 185.5 x 174 mm
Weight:	4.41 lb / 2 kg
Packaging Info
Package Weight:	8.785 lb
Box Dimensions (LxWxH):	12.6 x 10.6 x 10.5"
Package Weight:	8.785 lb
Box Dimensions (LxWxH):	12.6 x 10.6 x 10.5"
