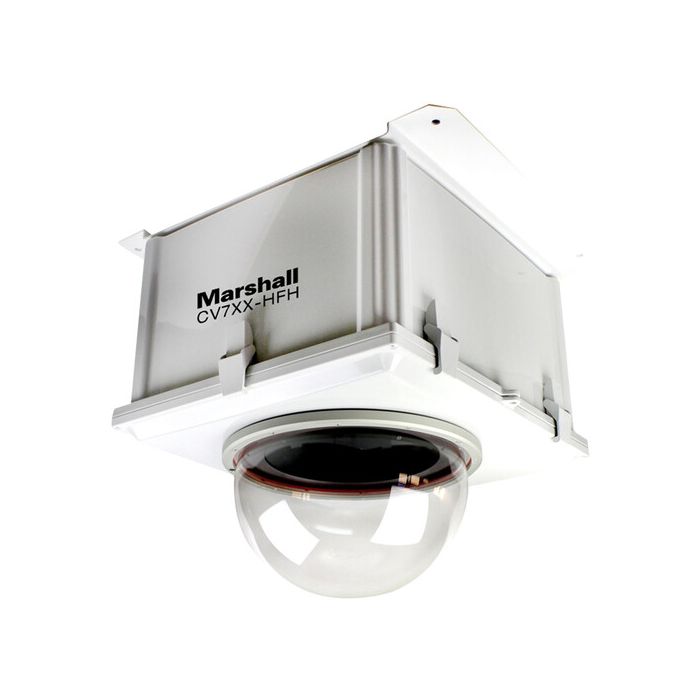

Marshall Electronics CV7XX-HFH IP68 Outdoor Camera Housing with Heater/Fan for CV730 PTZ Cameras

SKU
CV7XX-HFH
$2,799.00



Key Features
  • Weatherproof Dome PTZ Housing
  • Mount & Protect CV730 Series PTZ Cameras
  • 120 VAC to 12 VDC Power Input
  • Integrated Heater & Fan
  • IP68 Protects from Water, Dust, Debris
  • Heavy-Duty Clear Viewing Bubble

The CV7XX-HFH IP68 Outdoor Camera Housing with Heater/Fan from Marshall Electronics offers weatherproof protection for CV730 series PTZ cameras. This housing uses a fan and heater to protect your camera against cold and to keep the lens from fogging up in humid conditions. This housing can be powered using a 120 VAC power source. It also has internal 12 VDC outputs to power the camera, heater, and fans.

Key Features

Housing for CV730 series PTZ cameras
Rugged polycarbonate housing
IP68/NEMA 4X rated against water, dust, corrosion, and insects.
Clear acrylic viewing lens bubble, off-white semi-gloss finish, protective urethane foam gasket seals
Power conversion from 120 VAC standards to 12 VDC input for HD cameras and temperature control electronics
Write Your Own Review
You're reviewing:Marshall Electronics CV7XX-HFH IP68 Outdoor Camera Housing with Heater/Fan for CV730 PTZ Cameras
Your Rating
  • Marshall Electronics CV7XX-HFH IP68 Outdoor Camera Housing with Heater/Fan for CV730 PTZ Cameras
  • Pendant Mount
  • Wall Mount
  • Pole Mount
  • 3/8"-16 Concrete Anchor Screw Kit (4 Sets)
  • 2 x 1/4"-20 Button Head Screw
  • 12 x 6-32 Flat Head Screw
  • 4 x 10-32 Button Head Screw
More Information
SPECS
Camera Mounting
1/4"-20 Screws
Mounting Options
Wall, Pole
IP Rating
IP68
Heating Element
Yes
Cooling
Fan
AC Input
110 to 120 VAC
DC Output
12 VDC
Dimensions
27.4 x 19.7 x 18.75" / 69.6 x 50 x 47.6 cm
Weight
32 lb / 15 kg (without Camera)
