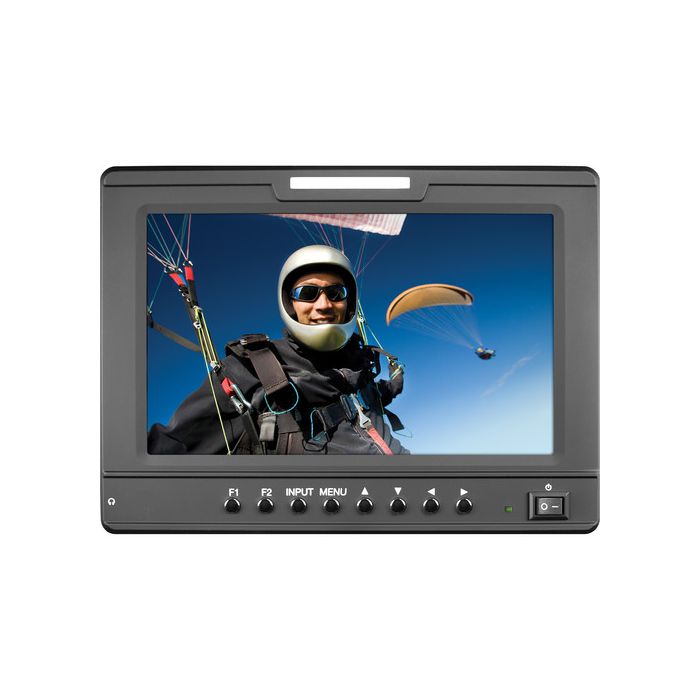

Marshall Electronics V-LCD70-AFHD 7" LCD On-Camera Monitor
Product Highlights:
- 7" 1024x600 3G-SDI & HDMI Monitor
- 500 Nit Brightness
- 700:1 Contrast Ratio
- Includes Power Supply
- Color Peaking
- False Color
- Screen Markers
The Marshall Electronics V-LCD70-AFHD 7" LCD On-Camera 3G-SDI/HDMI Monitor features a LED-backlight LCD screen that offers 500 cd/m2 brightness and a contrast ratio of 700:1. It features HDMI, 3G-SDI, component, and composite inputs for video signals and a three-color tally for control signals.
With the false color filter, this monitor aids in the setting of camera exposure. As the camera's exposure is adjusted, elements of the image will change color based on the luminance or brightness values. Using false color provides positive feedback to under/overexposed areas as well as properly exposed mid/skin tones. This monitor also features a peaking filter to aid the camera operator in focusing. When activated, the monitor displays a black-and-white image and highlights the sharp edges on the screen with the color red. Critical focus is achieved by racking the camera lens focus control back and forth until the desired portion of the image has red colored edges.
- Multiple inputs, including HDMI, 3G-SDI, component, and composite
- Three color tally (Red, Yellow, Green)
- 1/4" mounting on 4 sides plus VESA mount
- Lightweight for comfortable camera top use
- Audio level display from HDMI or SDI inputs
- On-screen framing marks
- Features image flip, false color level indication, peaking filter focus assist, auto HDMI CSC and HDMI ratio, pre-set gamma points, self-sensing, and re-clocked/re-shaped output for quick and easy setup
- 4-pin XLR connector for ENG power supplies
Items Included:
- Marshall Electronics V-LCD70-AFHD 7" LCD On-Camera Monitor
- 12V, 1.5A XLR Power Supply
- Limited 1-Year Warranty
|
