AB DIONIC Package BATTERY AND CHARGER KIT

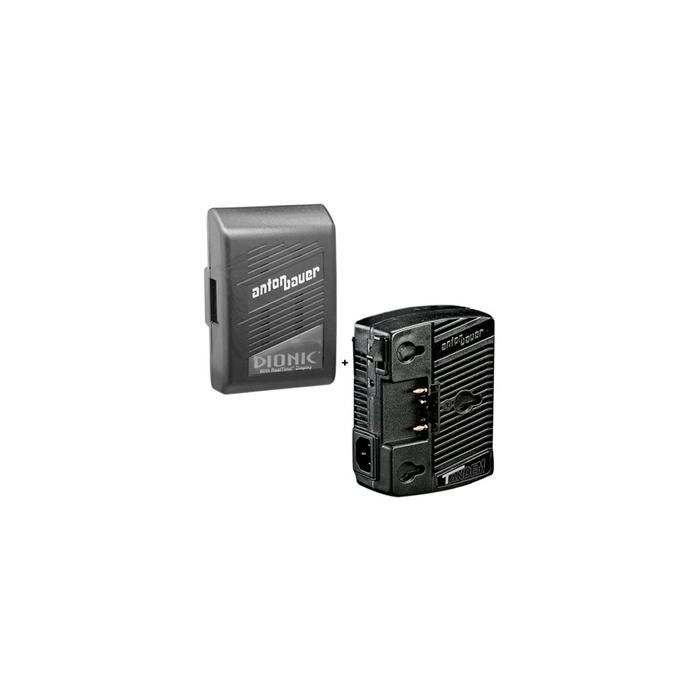

This packaged kit includes a Dionic 90 Battery and a Tandem Charger.

Dionic 90 Battery

The Anton Bauer Dionic 90 is a 90Wh Lithium-Ion battery and is the ideal battery choice when you want the best combination of low weight and long run-times. This battery can sustain a 6 amp load making it ideal for use with most of Flanders Scientific's monitors. Approximate run times, based on using the monitors in default settings, are listed below:

• LM-0750W: 6 hours.
• LM-0950W: 6 hours.
• CM-170W: 3.75 hours.
• LM-2140W: 3.2 hours.
• LM-2340W: 3 hours.
• LM-2461W*: 1.5 hours.

*If equipped with optional 12VDC option. Please note that a 10amp rated battery is recommended if using the LM-2461W at a higher than default (35) backlight setting.

The Anton Bauer Dionic 90 is incredibly lightweight, weighing in at only 1.8 lbs (0.8kg). This battery is compatible with both existing Anton Bauer Interactive2000 PowerChargers (may require software upgrade) and the Titan series chargers.

The Dionic 90 features a real time battery run-time display based on the automatically detected load of the connected device. Unlike many light duty video industry batteries, the Dionic 90 contains exclusive battery cell technology designed with specialized lithium-ion cells originally created for demanding military applications making it particularly well suited to demanding professional video environments.

Tandem 70 Charger

The Anton Bauer Tandem Charger combines the functionality of a one position InterActive Charger with the convenience of a low noise, lightweight, monitor or camera mounted AC mains adapter. The Tandem will operate equipment from any worldwide AC source. It also doubles as a full function InterActive Charger, capable of charging any Anton/Bauer Logic Series Battery. Charger Firmware is contained on a single field replaceable chip. Weighing only 1 pound (450 grams), the Tandem is the lightest and most compact charging option for your Anton Bauer batteries.

*Please note that the Tandem Charger can either charge your battery or provide power to your monitor/camera. It does not simultaneously provide power to the connected monitor/camera and charge your battery.

Features

Battery:

• Size: 2.12 x 5.25 x 3.50 in (5.38 x 13.34 x 8.89 cm)
• Weight: 1.8 lbs (0.8 kg)
• Integral digital features REALTIME display
• Meets regulatory requirements including CE
• 14.4v 90 Wh (Nominal 95Wh; Typical 93Wh)
• Li Ion battery MAXX 1.5 Warranty
• No Travel Restrictions

Charger:

• Works with the Dionic 90, Dionic HCX, and HyTron Batteries
• Size: 2.12 x 5.25 x 4.00 in (5.38 x 13.34 x 10.16 cm)
• Weight: 1.0 lbs (0.5 kg)
• 70 Watt, 16VDC Power Supply Output
• AC Input:100-240 VAC, 50/60 Hz. Wide Range Input
• MAXX III Warranty
• 7 full-time operating charge terminations
• Compatible with any Anton/Bauer Logic Series battery
• Field upgradable firmware for future compatibility
• Meets regulatory requirements including CE and FCC
• 1 Position Charging
• Seamless Tansition from AC to Battery Power
