Datavideo AD-200 6-Channel Audio Delay/Mixer with Level Adjustment

SKU

AD-200

Request for Price

Product Highlights:

4 Channel balanced audio inputs and 4 channel balanced audio outputs
2 Channel AUX inputs selectable of Mic/Line level and 2 channel unbalanced-audio outputs
6 Channel audio mixer and matrix router to 4 channel audio outputs
Support up to 3sec audio delay adjustment for each input channel
Audio level adjustment of each input

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

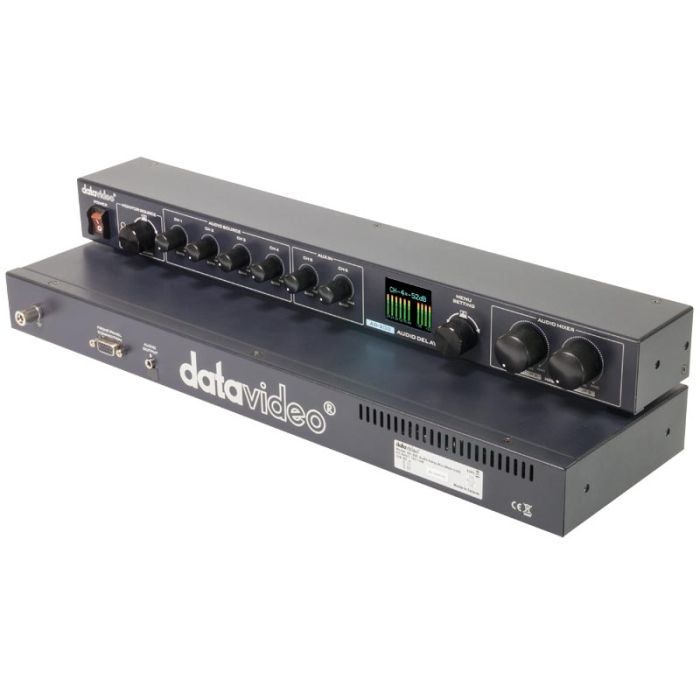

The Datavideo 1RU AD-200 6 Channel Audio Delay/Mixer with Level Adjustment from Datavideo is an integration of 6 channel audio delay with a matrix mapping function of 4 channel outputs audio mixer. The AD-200 is comprised of two separate parts: the main unit and the control unit. The two parts are 1RU each and can be easily installed on an OB Van or customized rack.

4 Channel balanced audio inputs and 4 channel balanced audio outputs
2 Channel AUX inputs selectable of Mic/Line level and 2 channel unbalanced-audio outputs
6 Channel audio mixer and matrix router to 4 channel audio outputs
Support up to 3sec audio delay adjustment for each input channel
Audio level adjustment of each input

Reviews

Write Your Own Review

You're reviewing:Datavideo AD-200 6-Channel Audio Delay/Mixer with Level Adjustment

Your Rating

Rating

1 star 2 stars 3 stars 4 stars 5 stars

Nickname

Summary

Review

items Included

Items Included:

Datavideo AD-200 6 Channel Audio Delay/Mixer with Level Adjustment (1 RU)
Sub-D to Sub-D Control cable
2 x Set Rack Ears
Limited 1-Year Warranty

Workflow

Specification

AD-200 - Specification

More Information

AUX Section
Impedance:	2 kOhms / 3 kOhms
Connector:	2 x 3-pin XLR Female
Mic Gain Range:	40 dB / 60 dB
Line Gain Range:	off to 12 ±3 d
THD+N:	0.01%
Signal to Noise Ratio:	80 min dB
Frequency Response:	20 Hz - 20 kHz ±3 d
Audio Input
Connectors:	4 x 3-pin XLR female 2 x RCA, unbalanced (L/R)
Input Impedance:	25 kOhms
Gain Range:	off to 12 ±3 d
THD+N:	0.01%
Frequency Response:	20 Hz - 20 kHz ±3 d
Signal to Noise Ratio:	80 dB
Impedance:	15 kOhms
Audio Output
Connectors:	4 x 3-pin XLR female 2 x RCA, unbalanced (L/R)
Impedance:	65 Ohms
Gain Range:	off to 12 dB
Output Level:	23 dBu
Headphones
Connector:	3.5 mm phone jack
Signal to Noise Ratio:	75 dB
THD+N:	0.01%
Frequency Response:	20 Hz - 20 kHz (±3 dB
General
Audio Delay:	0-3 sec for audio inputs
Connectors:	Main Unit: 15-pin Sub-D, Front panel 9-pin Sub-D, RS232 remote 3.5 mm phone jack, audio output Control Unit: 15-pin Sub-D, Front panel 3.5 mm phone jack, audio input
Phantom Power:	48 VDC
Power Consumption:	12 V / 19 W
Dimensions:	Main Unit: 5.8 x 17.3 x 1.7" (147.0 x 440.0 x 45.4 mm) Control Unit: 3.5 x 17.3 x 1.8" (90.5 x 440.0 x 47.5 mm)
Weight:	Main Unit: 4 lb (1.8 kg) Control Unit: 2.4 lb (1.1 kg)
Packaging Info
Package Weight:	9.55 lb
Box Dimensions (LxWxH):	20.3 x 10.5 x 8.1"
