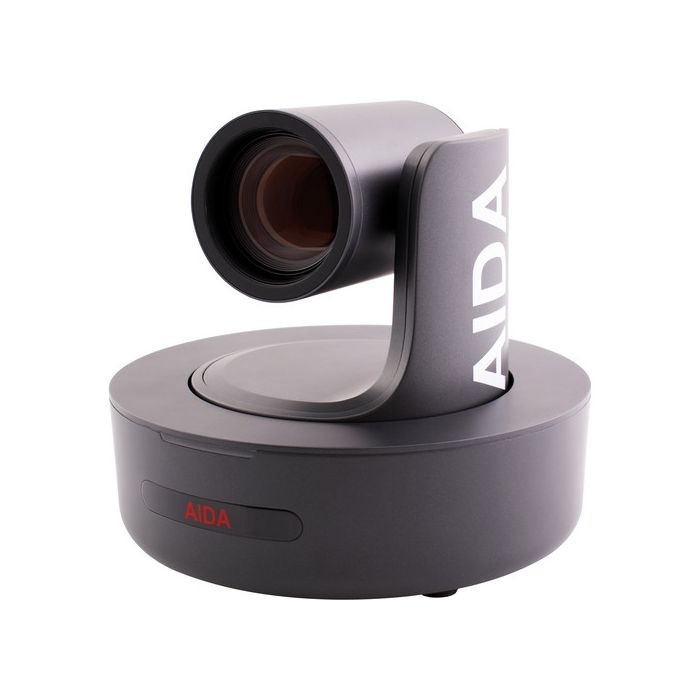

AIDA Imaging 12x Full HD IP Broadcast PTZ Camera

SKU
PTZ-X12-IP
$900.00

Product Highlights:

  • Simultaneous SDI, HDMI, USB, IP Outputs
  • RS-232 I/O, VISCA, TCP/IP, RTSP/RTMP
  • Up to 128 Presets over Serial Control
  • Motion-Compensated Noise Reduction
The 12x Full HD IP Broadcast PTZ Camera from AIDA Imaging offers four simultaneous video outputs—SDI, HDMI, USB, and IP streaming—each capable of delivering up to 1080p60 resolution. While the SDI, HDMI, and USB outputs must operate at the same resolution, the IP stream can be configured independently, supporting frame rates from 1 to 60 fps. Designed for flexibility and control, the camera features RS-232 input/output for serial communication and supports the VISCA control protocol as well as TCP/IP and RTSP/RTMP for IP-based control and streaming. The camera allows storage of up to 10 presets via the included IR remote, and up to 128 presets when using serial control, enabling fast switching between camera positions. Additional image processing features include a motion-compensated temporal noise reduction filter, which reduces noise while maintaining image clarity without introducing blur. Key Features: Simultaneous SDI, HDMI, USB, and IP outputs Supports video output up to 1080p60 Independent IP streaming resolution with H.264/H.265 encoding RS-232 serial control support VISCA over serial, TCP/IP, and RTSP/RTMP protocols 10 IR remote presets and up to 128 serial presets Advanced noise reduction filter with motion compensation SMPTE 424M/292M compliant Built-in OSD controls for on-the-fly adjustments 4:2:2 (YCbCr) 10-bit color space for enhanced image fidelity Multiple white balance modes: Auto, Manual, Auto Tracking, One-Push, Indoor, Outdoor Auto shutter speed for optimal exposure control
Write Your Own Review
You're reviewing:AIDA Imaging 12x Full HD IP Broadcast PTZ Camera
Your Rating

Items Included:

  • AIDA Imaging 12x Full HD IP Broadcast PTZ Camera
  • Remote Controller
  • Mounting Bracket
  • USB 3.0 Cable
  • Power Adapter
  • Power Cord
  • Limited 2-Year Manufacturer Warranty
More Information
SPECS
Key Specs
Image Sensor
1/2.5"-Type CMOS
Shutter Speed
1/10000 to 1 Second
Optical Zoom Ratio
12x
External Recording Modes
RJ45
1920 x 1080
1280 x 720
1024 x 576
620 x 360
SDI/BNC / HDMI / USB
1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps
1920 x 1080i at 50/59.94 fps
1280 x 720 at 25/29.97/50/59.94 fps
Broadcast Output
NTSC
IP Streaming
H.264/H.265 via NDI/ONVIF/RTMP/RTSP/SRT
620 x 360 to 1920 x 1080 up to 60p
Supported Control Protocols
IR
RS-232
VISCA
PoE Support
PoE+ 802.3at
Mounting
1x 1/4"-20 Female
Imaging
Image Sensor
1/2.5"-Type CMOS
Focus Control
Autofocus
Manual Focus
Exposure Control
Shutter Speed
1/10000 to 1 Second
Minimum Illumination
0.1 Lux
Flip / Mirror Support
Image Flip, Mirror (Vertical)
White Balance
Presets: Auto, Indoors, Manual, One Push, Outdoors
Lens
Focal Length
3.92 to 47.32mm
Optical Zoom Ratio
12x
Field of View
79 to 6.8°
Maximum Aperture
f/1.8 to 2.8
Video Capture
External Recording Modes
RJ45
1920 x 1080
1280 x 720
1024 x 576
620 x 360
SDI/BNC / HDMI / USB
1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps
1920 x 1080i at 50/59.94 fps
1280 x 720 at 25/29.97/50/59.94 fps
Embedded Audio
IP
Broadcast Output
NTSC
IP Streaming
H.264/H.265 via NDI/ONVIF/RTMP/RTSP/SRT
620 x 360 to 1920 x 1080 up to 60p
Control
Presets
10 via IR
128 via RS-232, VISCA
Pan/Tilt
Pan: 340° at 0 to 120°/s
Tilt: 120° (-30 to 90°) at 0 to 80°/s
Tally Light
No
Supported Control Protocols
IR
RS-232
VISCA
Interface
Video I/O
1x BNC (3G-SDI) Output
1x HDMI (Unspecified Signal) Output
1x USB-B 3.0 / 3.1/3.2 Gen 1 Output
Other I/O
1x Mini-DIN 8-Pin (RS-232, VISCA) Control Input (Shared with Video Output)
1x Mini-DIN 8-Pin (RS-232, VISCA) Control Output (Shared with Video Output)
1x RJ45 Control (Shared with Video Output)
1x USB-B (USB 3.2 / 3.1 Gen 1) Control (Shared with Video Output)
Built-In Microphone
No
Built-In Speaker
No
Power
PoE Support
PoE+ 802.3at
Power I/O
1x Barrel (9 to 15VDC) Input
Environmental
Operating Conditions
32 to 104°F / 0 to 40°C
Impact Resistance
No
Environmental Resistance
No
General
Mounting
1x 1/4"-20 Female
Dimensions (W x H x D)
8.7 x 6.8 x 7.5" / 220 x 173 x 190 mm
Weight
2.97 lb / 1.35 kg (Body Only)
Packaging Info
Package Weight
7.75 lb
Box Dimensions (LxWxH)
11.8 x 10.8 x 10.5"
