AIDA Imaging 3G-SDI/HD-SDI Tri-Level Genlock Sync Generator

AIDA Imaging
SKU
TGEN-6P
image-icon
$975.00
Add to Wish List Add to Compare
Email

Product Highlights:

  • Genlock Sync
  • Supports 3G-SDI & HD-SDI up to 1080 60p
  • SMPTE 274M, 296M & 424M
  • Dip Switches
  • LCD Screen

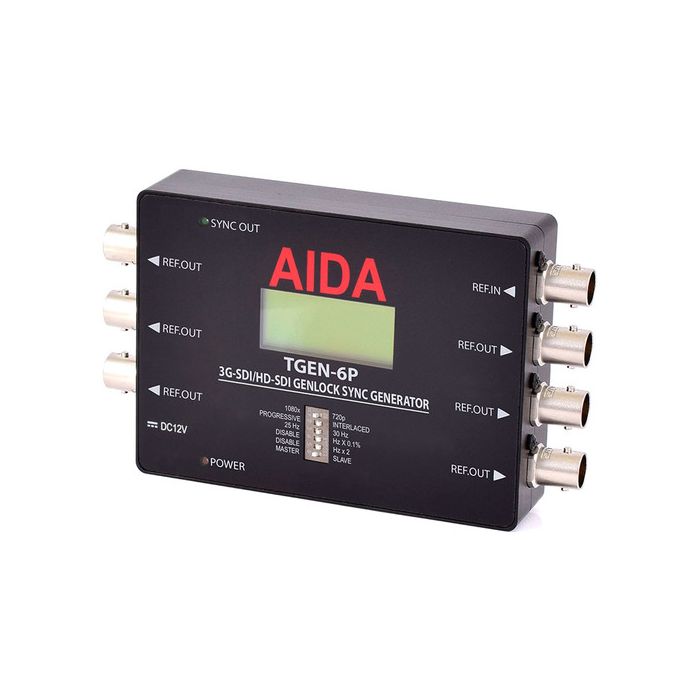

main product photo
Synchronize your video sources with the 3G-SDI/HD-SDI Tri-Level Genlock Sync Generator from AIDA Imaging. Designed to support all 3G-SDI and HD-SDI formats up to 1080p60, this compact genlock generator ensures precise synchronization across your video equipment. It adheres to SMPTE 274M, 296M, and 424M standards, providing broad compatibility with professional reference devices. Built for ease of use, the unit features intuitive dip switches and a clear LCD display for straightforward configuration and status monitoring.
Write Your Own Review
You're reviewing:AIDA Imaging 3G-SDI/HD-SDI Tri-Level Genlock Sync Generator
Your Rating

Items Included:

  • AIDA Imaging 3G-SDI/HD-SDI Tri-Level Genlock Sync Generator
  • Limited 1-Year Manufacturer Warranty
User Manual - AIDA Imaging TGEN-6P (Size: 358.1 KB)
More Information
SPECS
Reference Output
Signal
3G/HD Tri-Level
Supported Formats
1080 60p/59.94p/50p/30p/29.97p/25p
1080 60i/59.94i/50i
720 60p/59.94p/50p/30p/29.97p/25p
Reference Output
6 Channels
Reference Input
Signal
3G/HD Tri-Level
Supported Format
1080 60p/59.94p/50p/30p/29.97p/25p
1080 60i/59.94i/50i
720 60p/59.94p/50p/30p/29.97p/25p
Reference Input
1 Channel
Operational
SMPTE Standards Supported
SMPTE 274, 296M, 424M
Synchronization
Genlock: Tri-Level (Bi-Level SD Sync Not Supported)
Physical
Control
Dip Switches and Text LCD
Power Source
9 to 15 VDC
Power Consumption
6 W at 12 VDC
Operation Temperature
32 to 104°F / 0 to 40°C
Dimensions
5.11 x 2.95 x 1.10" / 130 x 75 x 28 mm
Weight
0.4 lb / 185 g
Packaging Info
Package Weight
1.45 lb
Box Dimensions (LxWxH)
11.1 x 7 x 2.4"
