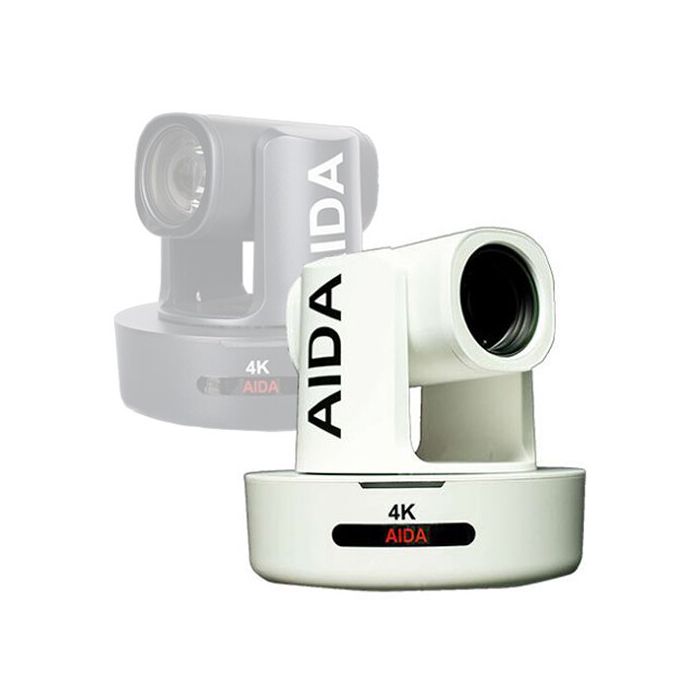

AIDA Imaging 4K NDI HX IP/HDMI Broadcast PTZ Camera with 30x Optical Zoom (White)

SKU
PTZ4K-NDI-X30W
$1,995.00

Product Highlights:

  • For Broadcast & Conference Applications
  • Capture up to UHD 4K Resolution
  • IP, HDMI, USB-C Outputs; NDI|HX Support
  • 30x Optical Zoom at 4K
  • RS-232, VISCA over IP, NDI Control
  • Up to 128 Presets via IP/Serial Control
  • Motion-Compensated Noise Reduction
  • Power Adapter & PoE+ Support
Add the 4K NDI|HX IP/HDMI Broadcast PTZ Camera with 30x Optical Zoom from AIDA Imaging to your NDI network and take advantage of simultaneous video outputs and seamless NDI|HX IP workflows. This high-performance camera supports UHD 4K60 video output via both HDMI and IP/NDI|HX, while also offering USB-C 3.0 output up to UHD 4K60 simultaneously with HDMI. Equipped with a powerful 30x optical zoom, the camera’s pan, tilt, and zoom functions can be controlled through IP, NDI, RS-232 serial control, or with the included IR remote. It's designed for versatility in both remote and local production environments. The camera supports VISCA-over-IP control protocol and streams over NDI|HX, RTSP, RTMP, and SRT formats. Up to 10 presets can be accessed via the included remote control, while up to 128 presets can be managed through IP or serial control. A motion-compensated temporal noise reduction feature ensures clean images without introducing motion blur. Power the camera via the included power adapter or through PoE+ for a cleaner setup on compatible networks. Key Features: Simultaneous SDI, HDMI, USB-C, and NDI|HX output Supports up to UHD 4K60 video resolution 30x optical zoom lens for flexible framing Supports NDI|HX, RTSP, RTMP, and SRT streaming protocols RS-232 input/output for serial control VISCA-over-IP for advanced remote operation 10 presets via IR remote, up to 128 via serial/IP control Motion-compensated noise reduction minimizes noise without blurring Built-in OSD controls for on-screen settings management 10-bit 4:2:2 (YCbCr) color processing for accurate color reproduction PoE+ support for streamlined power and data transmission
Write Your Own Review
You're reviewing:AIDA Imaging 4K NDI HX IP/HDMI Broadcast PTZ Camera with 30x Optical Zoom (White)
Your Rating

Items Included:

  • AIDA Imaging 4K NDI HX IP/HDMI Broadcast PTZ Camera with 30x Optical Zoom (White)
  • Remote Control
  • Mounting Bracket
  • Safety Harness
  • Power Adapter
  • Power Cord
  • Limited 2-Year Manufacturer Warranty
More Information
SPECS
Key Specs
Image Sensor
1/1.8"-Type CMOS
Field of View
Horizontal: 59 to 1.98°
Pan/Tilt
Pan: 340° at 0 to 120°/s
Tilt: 120° (-30 to 90°) at 0 to 80°/s
Wireless
No
Built-In Microphone
No
Power I/O
1x DC (12VDC) Input
Imaging
Image Sensor
1/1.8"-Type CMOS
Sensor Resolution
Effective: 2.07 Megapixel
Exposure Control
Shutter Speed
1 to 1/10,000 Seconds
Minimum Illumination
0.1 Lux
Lens
Focal Length
6.9 to 214.6mm
Optical Zoom Ratio
30x
Field of View
Horizontal: 59 to 1.98°
Control
Pan/Tilt
Pan: 340° at 0 to 120°/s
Tilt: 120° (-30 to 90°) at 0 to 80°/s
Automatic Follow and Framing
No
Wireless
Wireless
No
Interface
Audio I/O
1x 1/8" / 3.5 mm TRS Stereo Line Input on Camera Body
Other I/O
1x Mini-DIN 8-Pin (RS-232) Control Input
1x Mini-DIN 8-Pin (RS-232) Control Output
1x RJ45 (NDI) Control (Shared with Video Output)
Built-In Microphone
No
Built-In Speaker
No
Power
PoE Support
PoE+ 802.3at
Power I/O
1x DC (12VDC) Input
Environmental
Operating Conditions
32 to 104°F / 0 to 40°C
Impact Resistance
No
Environmental Resistance
No
General
Dimensions (W x H x D)
7.8 x 7.8 x 7.3" / 197 x 197 x 186 mm
Weight
4.6 lb / 2.1 kg (Body Only)
Packaging Info
Package Weight
8.79 lb
Box Dimensions (LxWxH)
12.2 x 10.9 x 10.5"
