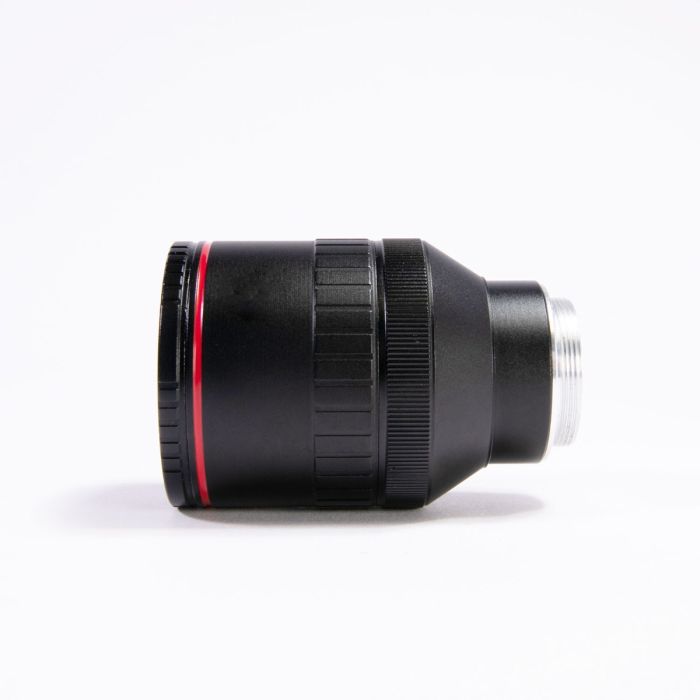

AIDA Imaging CS-2812V CS-Mount 2.8-12mm Varifocal 3 Megapixel Lens

SKU

CS-2812V

$145.00

Product Highlights:

1/2.7" and 1/3" Sensor Compatibility
Manual Focus
Manual Iris, f/1.4 Maximum Aperture
6 to 60° Horizontal FOV

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

The CS-Mount 2.8-12mm Varifocal 3 Megapixel Lens from AIDA Imaging is optimized for use with Full HD AIDA cameras that have 1/3" CMOS sensors, and is compatible with 3rd-party CS-mount cameras with a 1/2.7" or 1/3" sensor. The compact lens features a 2.8 to 12mm focal length with manual focus and offers a 6 to 60° field of view. The iris is also manually adjustable to a maximum aperture of f/1.4.

Reviews

Write Your Own Review

You're reviewing:AIDA Imaging CS-2812V CS-Mount 2.8-12mm Varifocal 3 Megapixel Lens

Your Rating

Rating

1 star 2 stars 3 stars 4 stars 5 stars

Nickname

Summary

Review

items Included

Items Included:

AIDA Imaging CS-Mount 2.8-12mm Varifocal 3 Megapixel Lens
Limited 2-Year Manufacturer Warranty

Specification

More Information

SPECS

Lens Mount	CS
Sensor Compatibility	1/2.7", 1/3" CMOS
Focal Length	2.8 to 12mm
Angle of View	1/3"-Type Sensor Horizontal: 6 to 60°
Focus Type	Manual Focus
Iris Type	Manual
Operating Conditions	-4 to 140°F / -20 to 60°C
Dimensions	ø: 1.85 x L: 2.72" / ø: 4.7 x L: 6.9 cm
Weight	0.14 oz / 4 g

Packaging Info

Package Weight	0.535 lb
Box Dimensions (LxWxH)	4.7 x 3.3 x 3.25"
