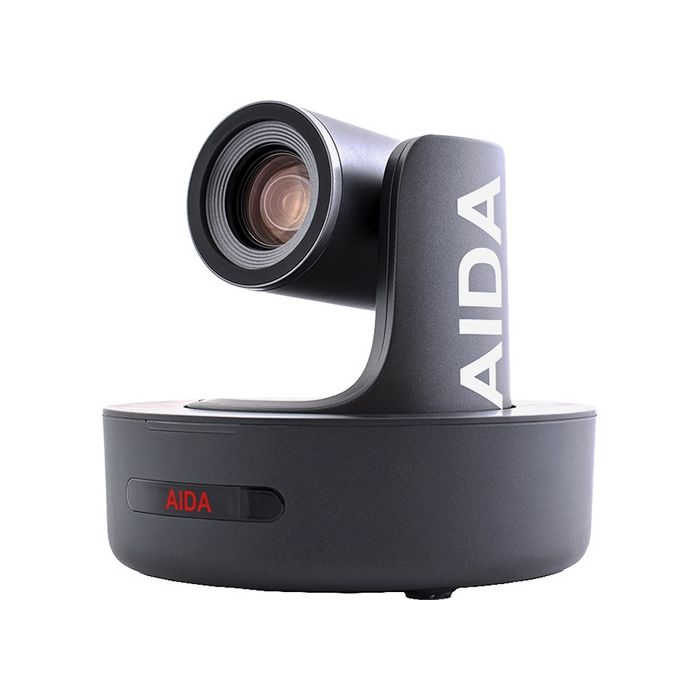

AIDA Imaging Full HD NDI|HX Broadcast PTZ Camera with 20x Optical Zoom

SKU
PTZ-NDI-X20
$1,100.00

Product Highlights:

  • Simultaneous SDI, HDMI, USB, IP Outputs
  • NDI|HX Protocol; SDI, HDMI, USB Outputs
  • 20x Optical Zoom
  • RS-232, VISCA over IP Control
  • Up to 128 Presets over Serial Control
  • Motion-Compensated Noise Reduction
Full HD NDI|HX Broadcast PTZ Camera with 20x Optical Zoom from AIDA Imaging into your NDI network to take advantage of seamless IP-based workflows along with four simultaneous video outputs. The camera delivers video resolutions up to 1080p60 via SDI, HDMI, USB, and NDI|HX outputs. While the SDI, HDMI, and USB outputs must share the same resolution, the IP stream can be configured separately with selectable frame rates from 1 to 60 fps. Equipped with a 20x optical zoom lens, the camera supports full pan, tilt, and zoom (PTZ) functionality, controllable via RS-232 serial input/output, VISCA-over-IP, or the included IR remote. This allows for versatile camera operation in both local and networked environments. The camera supports RTSP/RTMP streaming protocols, along with advanced image processing, including a motion-compensated temporal noise reduction filter to minimize image noise without introducing blur. Key Features: Simultaneous SDI, HDMI, USB, and NDI|HX outputs Supports up to 1080p60 resolution 20x optical zoom for detailed close-ups Dual streaming support with H.264 / H.265 encoding RS-232 input/output for serial control VISCA-over-IP, TCP/IP, and RTSP/RTMP control protocols Store and recall 10 presets via the included IR remote, and up to 128 presets via serial control Motion-compensated noise reduction for clean, blur-free images Compliant with SMPTE 424M/292M standards Built-in OSD for easy configuration 10-bit 4:2:2 (YCbCr) color processing Flexible white balance modes: Auto, Manual, Auto Tracking, One-Push, Indoor, Outdoor Auto shutter speed for balanced exposure
Write Your Own Review
You're reviewing:AIDA Imaging Full HD NDI|HX Broadcast PTZ Camera with 20x Optical Zoom
Your Rating

Items Included:

  • AIDA Imaging Full HD NDI|HX Broadcast PTZ Camera with 20x Optical Zoom
  • Remote Controller
  • Mounting Bracket
  • USB 3.0 Cable
  • Power Adapter
  • Power Cord
  • Limited 2-Year Manufacturer Warranty
More Information
SPECS
Key Specs
Image Sensor
1/2.8"-Type CMOS
Sensor Resolution
Effective: 2.07 Megapixel
Shutter Speed
1/10000 to 1 Second
Optical Zoom Ratio
20x
External Recording Modes
RJ45
1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps
1280 x 720 at 23.98/24.00/25/29.97/50/59.94 fps
1024 x 576 at 23.98/24.00/25/29.97/50/59.94 fps
620 x 360 at 23.98/24.00/25/29.97/50/59.94 fps
SDI/BNC / HDMI / USB
1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps
1920 x 1080i at 50/59.94 fps
1280 x 720 at 25/29.97/50/59.94 fps
Broadcast Output
NTSC
IP Streaming
H.264/H.265 via NDI|HX/RTMP/RTSP/SRT/TCP
1280 x 720 to 1920 x 1080
Supported Control Protocols
IR
RS-232
VISCA
PoE Support
PoE+ 802.3at
Mounting
1x 1/4"-20 Female
Imaging
Image Sensor
1/2.8"-Type CMOS
Sensor Resolution
Effective: 2.07 Megapixel
Focus Control
Autofocus
Manual Focus
Exposure Control
Shutter Speed
1/10000 to 1 Second
Minimum Illumination
0.1 Lux
White Balance
Presets: Auto, Indoors, Manual, One Push, Outdoors
Lens
Focal Length
4.9 to 98mm
Optical Zoom Ratio
20x
Field of View
57 to 3.3°
Maximum Aperture
f/1.5 to 3
Video Capture
External Recording Modes
RJ45
1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps
1280 x 720 at 23.98/24.00/25/29.97/50/59.94 fps
1024 x 576 at 23.98/24.00/25/29.97/50/59.94 fps
620 x 360 at 23.98/24.00/25/29.97/50/59.94 fps
SDI/BNC / HDMI / USB
1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps
1920 x 1080i at 50/59.94 fps
1280 x 720 at 25/29.97/50/59.94 fps
Embedded Audio
IP/NDI
Broadcast Output
NTSC
IP Streaming
H.264/H.265 via NDI|HX/RTMP/RTSP/SRT/TCP
1280 x 720 to 1920 x 1080
Control
Presets
10 via IR
128 via RS-232, VISCA
Pan/Tilt
Pan: 340° at 0 to 120°/s
Tilt: 120° (-30 to 90°) at 0 to 80°/s
Tally Light
No
Supported Control Protocols
IR
RS-232
VISCA
Interface
Video I/O
1x BNC (3G-SDI) Output
1x HDMI (Unspecified Signal) Output
1x USB-B 3.0 / 3.1/3.2 Gen 1 Output
Audio I/O
1x 1/8" / 3.5 mm TRS Stereo Line Input
Other I/O
1x RJ45 (LAN, NDI) Control Output (Shared with Video Output)
1x Mini-DIN 8-Pin (RS-232, VISCA) Control Input
1x Mini-DIN 8-Pin (RS-232, VISCA) Control Output
Built-In Microphone
No
Built-In Speaker
No
Power
PoE Support
PoE+ 802.3at
Power I/O
1x Barrel (9 to 15VDC) Input
Environmental
Operating Conditions
32 to 104°F / 0 to 40°C
Impact Resistance
No
Environmental Resistance
No
General
Mounting
1x 1/4"-20 Female
Weight
2.97 lb / 1.35 kg (Body Only)
Packaging Info
Package Weight
7.54 lb
Box Dimensions (LxWxH)
11.7 x 10.8 x 10.5"
