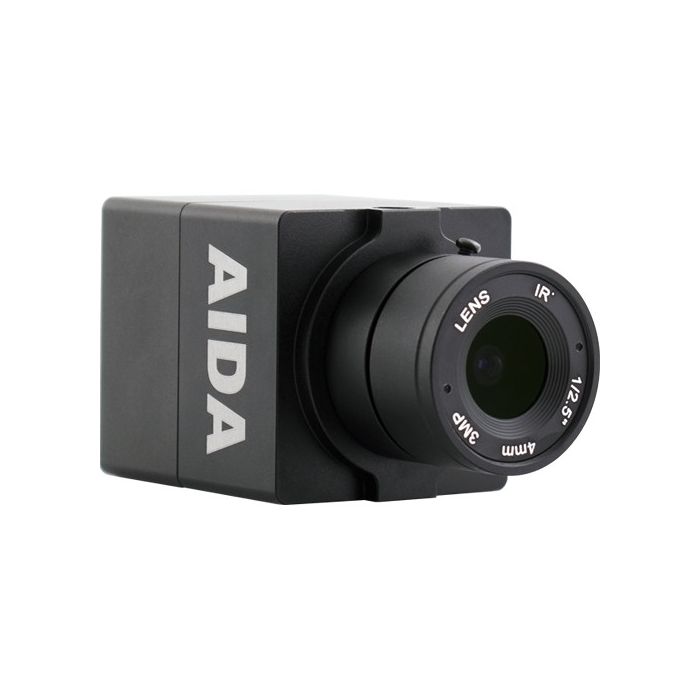

AIDA Imaging HD-100A Full HD HDMI Box Camera

The HD-100A Full HD HDMI Box Camera from AIDA Imaging is an ultracompact camera suitable for web-conferencing, sports, auto racing, surveillance, medical, broadcasting, live production, education, house of worship, and other applications. Measuring approximately 1.5" wide by 1.5" tall and 3" deep, the camera can fit in a variety of spaces where a small footprint is advantageous such as a dashcam in a race car, or discretely in the corner of a surgical room. The camera captures HD at up to 60 fps, and it features a C/CS mount for mounting interchangeable lenses and includes a 4mm lens with iris control.

The camera has an HDMI output that allows you to connect to switchers, monitors, recorders, and other devices for viewing and/or recording the image. An included breakout cable provides inputs for power, RS-485 control, and mic/line-level audio, which is embedded in the HDMI output. The cable also has an integrated OSD controller on it. This allows you to select and adjust the built-in image tools such as noise reduction, black-level adjustment, flicker detection as well as selecting the exposure mode.

The camera body includes both a power and HDMI indicators, allowing you to confirm its operation at a glance. Two 1/4"-20 threaded mounting holes, one on the bottom and one on the top allow you options when mounting the camera.
