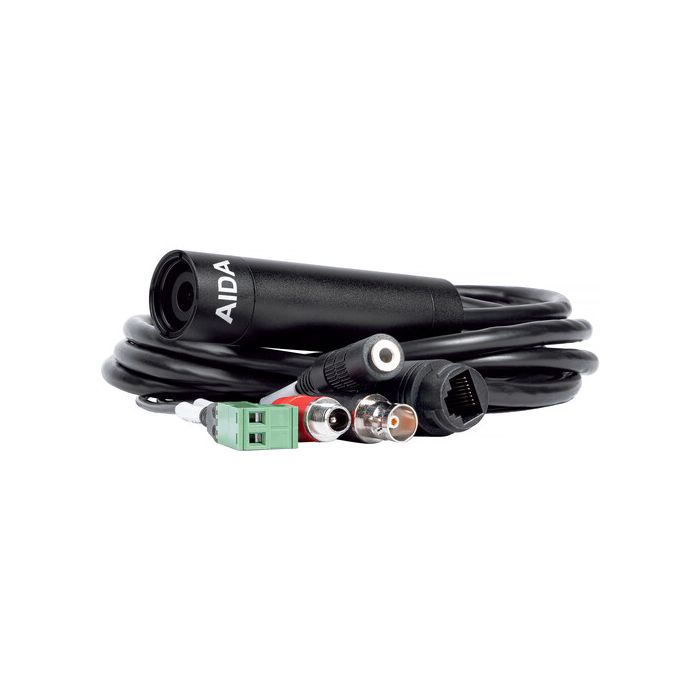

AIDA Imaging HD3G-IPC-MINI Full HD 3G-SDI POV Camera with IP Control

SKU
HD3G-IPC-MINI
$395.00

Product Highlights:

  • 1/2.8" Sony Progressive CMOS Sensor
  • Resolutions up to 1080p60
  • 3.6mm M12-Mount Lens
  • Full VISCA over IP Control
  • 92° Field of View

The HD3G-IPC-MINI Full HD 3G-SDI POV Camera from AIDA Imaging boasts IP control with a signature compact design, affordable pricing, and exceptional image quality. The versatile camera utilizes a 1/2.8" Sony progressive CMOS sensor and a 3.6mm M12-mount lens that achieve a 92° angle of view and image resolutions up to 1080p60.

Full VISCA over IP control across any network eliminates the need for outdated RS-485 wiring. This camera is part of the AIDA Imaging SDI IPC series, which integrates seamlessly with both new and existing 3G-SDI setups, offering complete control over every aspect.

  • Full-HD 1/2.8” Sony progressive scan CMOS sensor capable of up to 1080p60 through 3G-SDI
  • VISCA over IP compatible for hardware and software solutions using that protocol. (VISCA UDP, Sony VISCA over IP)
  • Versatile designs with tripod mounts for easy and unique shot creation
  • PoE+ adaptable with adapter
  • Small form-factor and rugged design make all video streaming applications possible
  • Perfectly suited for indoor or outdoor shots for new or existing workfows
Write Your Own Review
You're reviewing:AIDA Imaging HD3G-IPC-MINI Full HD 3G-SDI POV Camera with IP Control
Your Rating

Items Included:

  • AIDA Imaging HD3G-IPC-MINI Full HD 3G-SDI POV Camera with IP Control
  • PoE Adapter
  • 12 VDC Power Supply with Plug Adapters
  • Limited 2-Year Manufacturer Warranty
More Information
SPECS
General
Image Sensor
1/2.8" Sony Progressive CMOS Sensor (5.640 x 3.216 mm)
Effective Pixels (H x V)
1920 x 1080
Pixel Size: 2.9 (H) x 2.9 μm (V)
Resolution
1080p, 1080i, 720p
Frame Rate
1080p: 60/59.94/50/30/29.97/25/24
1080I: 60/59.94/50
720p: 60/59.94/50
Color Spaces
4:2:2 (YCbCr) 10-Bit
Minimum Illumination
0.2 Lux (Day), 0.1 Lux (Night)
White Balance
Auto & Manual (9000 to 11,000K)
Lens
3.6mm M12-Mount Lens
Field of View
92° Field of View
Control Protocol
VISCA over IP
Weatherproofing
IP67
Inputs/Outputs
Video I/O
1x BNC (3G-SDI) Output
Audio I/O
1x 1/8" / 3.5 mm TRS Line Input
Power
Power Source
AC Adapter with Power Brick (Included), PoE (Included)
DC Input Power
12 VDC
Power Consumption
6 W
Physical
Mounting
Bottom: 1x 1/4"-20
Color
Black
Environmental Resistance
Weather-Resistant (IP67)
Operating Conditions
14 to 122°F / -10 to 50°C
Cable Length
3' / 91.4 cm
Dimensions
3.5 x 1.1" / 9 x 2.8 cm
Packaging Info
Package Weight
1.905 lb
Box Dimensions (LxWxH)
11 x 5.1 x 4.5"
