AJA BRIDGE LIVE High Performance Multi-Channel Video Encoding, Decoding, Streaming and Transcoding for Live Video

SKU
BRIDGELIVE
image-icon
Request for Price
Add to Compare
Email

Product Highlights:

  • Supports encoding, decoding, or transcoding
    • 1 channel of UHD up to 60p; 4 channels of 1080 60p HD
  • 4 x 12G-SDI I/O, compatible with 6G/3G/1.5G-SDI
  • Supports multiple destinations for each SDI input
  • Supports multiple streaming codecs
    • Video: H.264, H.265, MPEG-2, and JPEG 2000 (optional)
    • Audio: AAC, AC3, MPEG-2, and uncompressed PCM
  • Supports SRT, RTMP/S, RTP, UDP, MPEG-TS, and ABR
  • Supports up to 16ch of embedded audio per I/O
  • Provides a suite of powerful video processing tools
    • Logo insertion, resizing, color adjustment and more…
  • Support for Metadata
    • Close captioning, ad insertion markers and more…
  • Simultaneous Bi-Directional Encoding and Decoding
  • Remote control via Web UI, REST API, or SNMP
  • Redundant power
  • AJA three-year warranty

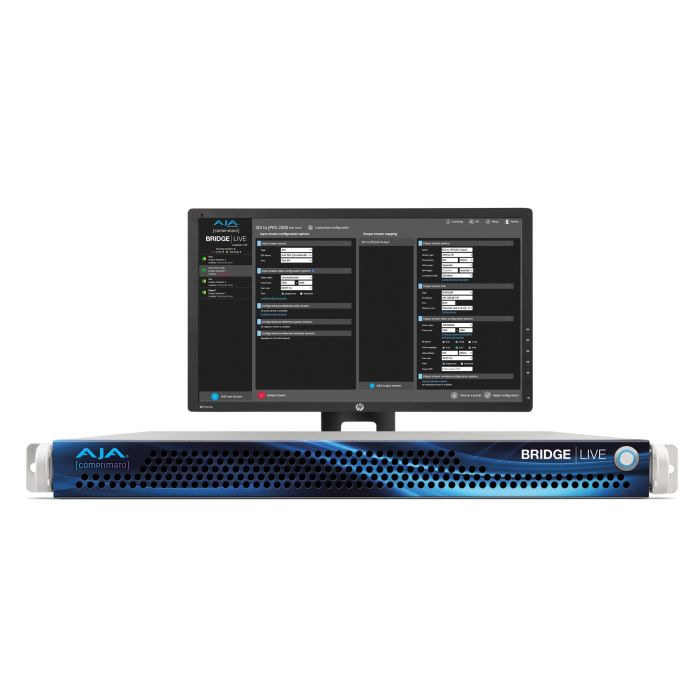

main product photo

AJA BRIDGE LIVE is a turnkey solution built for critical streaming applications with high performance 12G-SDI video encoding/decoding, stream-based transcoding, flexible I/O, comprehensive metadata support, closed caption support and all within a compact 1RU form factor with redundant power supplies.

Designed with the ability to support both low-latency and high-quality workflows across a range of codecs, containers, and protocols, BRIDGE LIVE enables numerous use cases; multi-input live streaming to platforms such as YouTube, Facebook, or Twitch, providing high quality reference video for remote collaboration in production and post, backhauling remote live SDI video sources to the media production facility, SDI to MPEG-TS conversions for Telcos/IPTV/Cable networks, through to encoding for content distribution with ABR ladder profiles or hand-off for OTT packaging, and all supported via public internet.

Write Your Own Review
You're reviewing:AJA BRIDGE LIVE High Performance Multi-Channel Video Encoding, Decoding, Streaming and Transcoding for Live Video
Your Rating
AJA BRIDGE LIVE - Release Notes (Size: 164.7 KB)
AJA BRIDGE LIVE - Manual (Size: 7.8 MB)
AJA BRIDGE LIVE - Video Formats (Size: 59.4 KB)
AJA BRIDGE LIVE - Quick Start Guide (Size: 329.6 KB)

BRIDGELIVE - Specification

More Information
General
Video Formats:(UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(HD) 1080i 50, 59.94, 60
(HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 720p 50, 59.94, 60
(SD) 625i 50
(SD) 525i 59.94
YCbCr, 4:2:2, 10-bit
Video Codec Color Component Sampling:4:2:2, 10-bit/8-bit
4:2:0, 10-bit/8-bit
Video Codecs:H.264 (AVC, MPEG-4)
H.265 (HEVC)
JPEG 2000 (VSF TR 01)
MPEG-2
Audio Streams/Codecs: AAC
AC3
MPEG-2 Audio
Uncompressed PCM (multichannel), SMPTE 302M-2007
Metadata:Closed Captioning (EIA-608/708)
Line 21 Captions
Metadata pass-through
MPEG-2 ancillary packet support, SMPTE 2038
SCTE-35, SCTE-104 (plus conversion)
Subtitles embedded within H.264 SEI messages
Electronic program guide (EPG) on input
Containers and Protocols:MPEG-TS
MPTS (input only)
RTMP/RTMPS
RTP, UDP
SRT (including encryption)
VSF-TR01
Video Processing:Auto Color Component Sampling based on I/O settings
Cropping / Padding
Color adjustments
Deinterlacing
Frame rate 50% down-conversion (60p->30p, 59.94->29.97, 50p->25p)
Frame rate up-conversion (50i->50p)
Logo insertion
Resizing
Audio Processing:Channel Remapping
Gain
Sample Rate conversion
Synchronization:Input PCR
Global configuration (in separate transport stream)
Local configuration (in each transport stream)
Output PTS
Pass-through
Add offset to input PTS
Performance:Stream startup time maximum 5 seconds after configuration applied
Latency 200-700ms input to output (based on codec and other parameters)
Up to 4 simultaneous primary HD streams, plus additional output variations per stream*
Up to 1 primary UHD stream, plus additional output variations of that stream*

*Final additional stream count per output is dependent on configuration
Video Input Digital:12G-SDI, SMPTE-2082, 10-bit
6G-SDI*, SMPTE-2081, 10-bit
3G-SDI, SMPTE-259/292/296/424/425, 10-bit
1.5G-SDI, SMPTE 292M, Single Link 4:2:2 (1x BNC), 10-bit
270 Mbit/s SDI, SMPTE 259M-C, Single Link 4:2:2 (1x BNC), 10-bit

*UltraHD 30p supported, no HD 120p support at this time
Video Output Digital:12G-SDI, SMPTE-2082, 10-bit
6G-SDI*, SMPTE-2081, 10-bit
3G-SDI, SMPTE-259/292/296/424, 10-bit
1.5G-SDI, SMPTE 292M, Single Link 4:2:2 (1x BNC), 10-bit
270 Mbit/s SDI, SMPTE 259M-C, Single Link 4:2:2 (1x BNC), 10-bit

*UltraHD 30p supported, no HD 120p support at this time
Audio Input Digital:16-channel, 16 and 24-bit SDI embedded audio, 48 kHz sample rate, synchronous per SDI connection
Audio Output Digital:16-channel, 16 and 24-bit SDI embedded audio, 48 kHz sample rate, synchronous per SDI connection
Configuration and Monitoring:Local “Kiosk” interface (keyboard, mouse and monitor)
Remote access via Browser
REST API
Form Factor:1RU turnkey system
4x full size BNC (12G/6G/3G/1.5G-SDI compatible)
2x 10GigE
Local interface via Display Port and USB
OS custom image
Updates and licenses via download
Size (w x d x h):17.2” x 16" x 1.7" (436.88 x 429.26 x 43.18 mm)
Weight:28 lb. (12.7kg) in box
18 lb. (8.2kg) server only
Power:100-240 VAC 50/60 Hz (Dual, redundant power supplies)
190W typical, 245W Maximum
Environment:Safe Operating Temperature: 5 to 35 C (41 to 95 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 8-90% noncondensing
Nonoperating Relative Humidity: 5-95% noncondensing
