AJA FS-HDR HDR 4K/UltraHD/2K/HD frame synchronizer and converter for HDR/SDR standards conversion

SKU
FS-HDR
image-icon
Request for Price
Add to Compare
Email

FS-HDR, a 1RU, rackmount, universal converter/frame synchronizer, is designed specifically to meet the High Dynamic Range (HDR) and Wide Color Gamut (WCG) needs of broadcast, OTT, post and live event AV environments, where real time, low latency processing and color fidelity is required for 4K/UltraHD and 2K/HD workflows. Developed in partnership with Colorfront, the FS-HDR’s HDR/WCG functionality is powered by Colorfront Engine proprietary video processing algorithms.

FS-HDR also serves as a full, 1-Channel up, down, cross-converter for 4K/UltraHD/2K/HD HDR transformation, conversion and frame sync needs and in 4-Channel mode, offers 4 independent channels of 2K/HD conversion including HDR transformations.

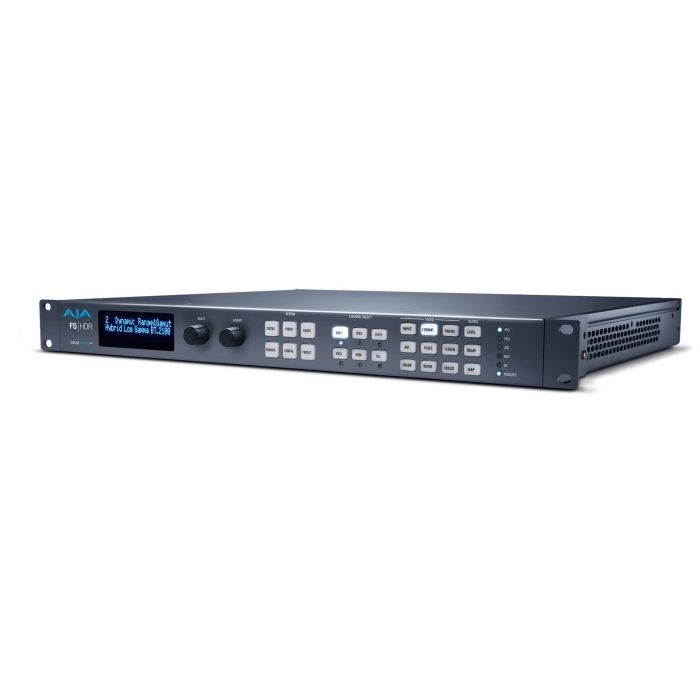

main product photo

FS-HDR Key Features

  • HDR to HDR, SDR to HDR and HDR to SDR conversions for Dynamic Range and Wide Color Gamut needs.

  • Support for two modes:Colorfront Engine support for ITU BT.2408-0, Operational Practices in HDR Television Production

    • Single Channel Mode for 4K/UltraHD or 2K/HD frame sync and conversion including HDR conversions
      • 4K/UltraHD/2K/HD/SD video processing and up, down, cross-conversion
      • A full range of I/O options for 4K/UltraHD including Quad 1.5G; Dual 3G; and Quad 3G, 6G and 12G over a range of Coax and optional Fiber choices
      • SMPTE 2SI I/O support for broad compatibility with 4K/UltraHD devices
      • Enhanced Single Channel Mode offers the ability to simultaneously output 4K/UltraHD and 2K/HD with their own HDR transform settings for convenient Single Master HDR workflows.
    • Four Channel Mode for simultaneous independent 2K/HD/SD channels including HDR conversions
      • 2K/HD/SD up, down, cross-conversion
      • SD/SD aspect ratio conversion
      • HD/HD cross-conversion (720p/1080i)

  • Parametric controls including HDR functions and Color Corrector

  • SDR Preview Mode

  • Transform Mode Control: Choose between Colorfront Engine or BBC HLG LUTs

  • HDR Color Bar Test Patterns

  • HDMI HDR Infoframe generation to support HDR displays per HDMI v2.0b/CTA-861-G for any 2K/HD HDMI output format and 2K/HD output down-scaled from 4K/UltraHD

  • Widely interoperable with 4K/UltraHD/2K/HD raster support,

    Quadrants and 2SI conversion, P, PsF and Interlace support

  • A 1RU frame offering space, power and cost efficiencies ideal for broadcast trucks, postproduction or broadcast settings

  • Audio I/O processing with a 272 x 208 matrix of audio possibilities; support for a flexible range of audio feeds from discrete AES to MADI and embedded SDI audio, with each audio input offering sample rate conversion

  • Simple operation, a redesigned menu structure and quick access to features via front panel buttons, as well as a web-based UI offering control over a LAN or across the web
