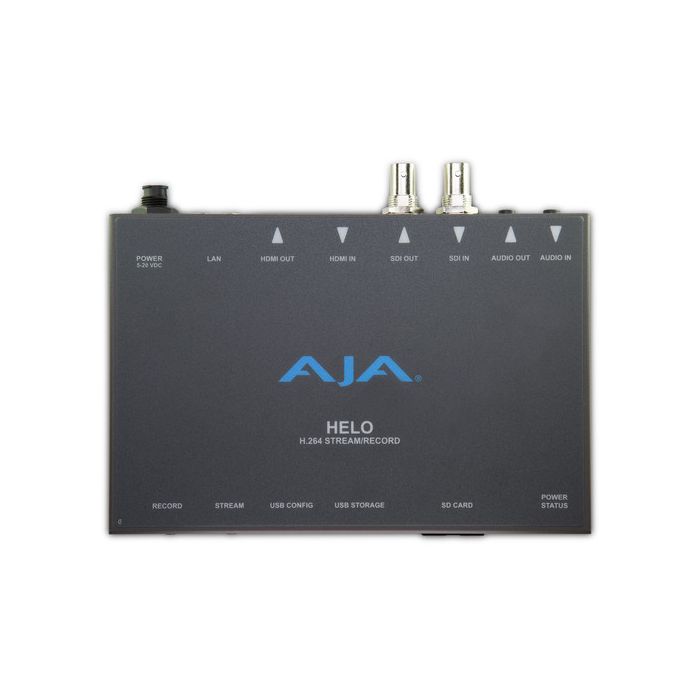

AJA HELO H.264 Streamer And Recorder

SKU
HELO
Request for Price

Product Highlights :

  • Portable, stand-alone 3G-SDI and HDMI source inputs
  • Encode up to 1080p 60 in H.264/MPEG-4
  • 2-Channel stereo audio encoded up to 24-bit 48kHz
  • Data rates from 32kbps to 256kbps in MPEG-4
  • Record to SD, SDHC or SDXC cards, USB storage, NFS, CIFS, or SMB


HELO is AJA’s powerful H.264 streaming and recording stand-alone appliance. HELO brings both SDI and HDMI I/O into a single appliance with the ability to simultaneously stream out to your Content Delivery Network (CDN) as well as encode and record beautiful H.264 files to either SD, SDHC or SDXC cards, USB storage or NFS or CIFS mounted network-based storage simultaneously.


Portable and Packed to Go

HELO’s small and robust form factor is essential for your busy schedule. Live events, webcasts, production and post locations vary and you need a device that can take the heat. HELO is designed to travel well, fit wherever needed and continuously deliver; all with full size connectivity.

HELO offers both 3G-SDI and HDMI source inputs in a single device with the ability to encode up to 1080p 60 in beautiful and efficient H.264.

Stream out to your CDN and record to SD, SDHC or SDXC cards, USB storage or NFS or CIFS mounted network based shares simultaneously.


Encode

Your goal is the efficiency with beautiful results.

HELO encodes to H.264/MPEG-4 ensuring bandwidth efficiencies with widely compatible files. From tablets to smartphones, desktops to Smart TVs, no translation necessary.

2-Channel stereo audio can be encoded at up to 24-bit 48kHz at data rates ranging from 32kbps to 256kps in MPEG-4 AAC-LC, allowing you to make the most appropriate choice for your project's needs.

Stream

Streaming can be complex. HELO makes it simple.

A USB connection and robust web browser based UI allows you to setup and configure your CDN connection before you even arrive at your event. Once there, simply press the Stream button and deliver your project across HELO’s Ethernet connection, which allows support for RTP/RTSP, RTMP, RTMPE for Facebook live as well as Unicast. HTTP Live Streaming (HLS) support adds compatiblity with Apple's popular iOS devices and more.

HELO's web based GUI even provides a video preview window so that you can ensure you are getting just what you expect.

An AV Mute setting allows you to mute live video and audio for your stream and either load your own graphic with event details or utilize a built in holding graphic before your event goes live.

Record

Live means Now. Live means Pressure.

HELO offers a dedicated Record button right on the front of HELO’s small and mobile interface for immediate recording. It also provides simultaneous recording while streaming and redundant recording of one file to two media destinations simultaneously. This enables you to hand a client a copy of the event right after recording ends, while maintaining a master in house.

Mass Media

Cost effective media choices.

HELO’s H.264 based encoding not only ensures beautiful, efficiently sized files, it means your recording medium choices are wide open. Utilize USB thumb sticks, drives and RAIDs, common SD, SDHC or SDXC media or network shares across a switch. Pick to suit your project.

Web Server Built-In

You serve the web. HELO serves you.

AJA eMini-Setup and HELO’s easy to use web browser interface make HELO simple to setup, configure and update firmware at any time. You can connect to HELO either via its direct USB port to set static/dynamic IP addresses through AJA eMini-Setup software or over the network using HELO’s web server generated UI.

It's a Fast World. Capture It.

1080p 60 is the de facto standard today for delivery of sports, live events, crystal clear video conferencing, webinars and games capture. Simply connect any video device to HELO via 3G-SDI or HDMI and record H.264 files and stream as needed. HELO is the perfect compliment to any professional workflow, easily connecting to a range of HD capable devices.

Features

  • Portable, stand-alone 3G-SDI and HDMI source inputs
  • Encode up to 1080p 60 in H.264/MPEG-4
  • 2-Channel stereo audio encoded up to 24-bit 48kHz
  • Data rates from 32kbps to 256kbps in MPEG-4
  • Record to SD, SDHC or SDXC cards, USB storage, NFS, CIFS, or SMB
  • USB Slot and SD card slot
  • Video input and output 3G-SDI, SMPTE-259/292/296/424, 10-bit, Single Link 4:2:2, 4:4:4, BNC and HDMI
  • Support for RTP/RTSP, RTMP, RTMPs, HLS, and Unicast
  • AV Mute with user graphics upload support for pre-live feeds
  • Error logging for quick analysis of streaming issues
  • WebUI Regionalization for Chinese, Japanese and Korean
  • Web based GUI preview window

HELO - Specification

More Information
General Specs
Video Formats:2K: 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
HD: 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
HD: 1080i 25, 29.97, 30 HD: 720p 50, 59.94, 60
SD: 525i, 625i
(2K inputs are center cut to 1080p and are only supported on SDI input)
Video Codec Support:H.264/MPEG-4 Encoder
Video Parameters:100 KB/s to 20 MB/s (TBD) streamed output
100 KB/s to 20 MB/s (TBD) recorded output
Up to 1080p60
Supports Baseline, Main and High
2.0, 3.0, 3.1, 4.0 and 4.1 level support
Video Input Digital:1 x 3G-SDI, SMPTE-259/292/296/424, 10-bit
Single Link 4:2:2, 4:4:4 (1 x BNC)
1 x HDMI Standard Type A connector
HDMI v1.4a, RGB or YCbCr
Video Output Digital:1 x 3G-SDI, SMPTE-292/296/424, 10-bit
Single Link 4:2:2 or 4:4:4 (1 x BNC)
1 x HDMI Standard Type A connector
HDMI v1.4a, RGB or YCbCr
Audio Encoding:32 KB/s to 256 KB/s
32, 44.1 and 48 kHz 2-channel stereo
MPEG-4 AAC-LC
Audio Input Digital:2-channel, 24-bit SDI embedded audio, 48 kHz sample rate, synchronous
2-channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
Audio Input Analog:2-channel, Analog (Line Level, Unbalanced stereo 1 x 3.5 mm TRS connector)
Audio Output Digital:2-channel, 24-bit SDI embedded audio, 48 kHz sample rate, synchronous

2-channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
Audio Output Analog:2-channel, Analog (Line Level, Unbalanced stereo 1 x 3.5 mm TRS connector)
Protocols:RTMP, RTSP/RTP, Unicast and Multi Unicast (3 to 10 Clients)
Storage:1 x USB 2.0 slot, (Can be NTFS 3.1 or FAT32)
1 x SD Card slot, SD and SDHC cards (NTFS 3.1)
Mounted Network Share
User Interface:Stream Button
Record Button
Web UI
Simple Web Configuration via AJA eMini-Setup (OS X and PC)
Power:100 to 240 V, 50/60 Hz Universal Input, +5-20 VDC 13 W Maximum
Environment:Operating Temperature: 32 to 104°F (0 to 40°C)
Operating Relative Humidity: 10 to 90% non-condensing
Operating Altitude: <10,000' (3,000 m)
Safe Storage Temperature (Power OFF): -40 to 140°F (-40 to 60°C)
Dimensions (W x D x H):7.0 x 4.7 x 1.0" (18 x 14 x 26 cm)
Weight:0.8 lb (0.4 kg)
Packaging Info
Package Weight:2 lb
Box Dimensions (LxWxH):10.3 x 6.55 x 5.15"
    • AJA HELO H.264 Streamer & Recorder
      • Limited 5-Year Warranty
