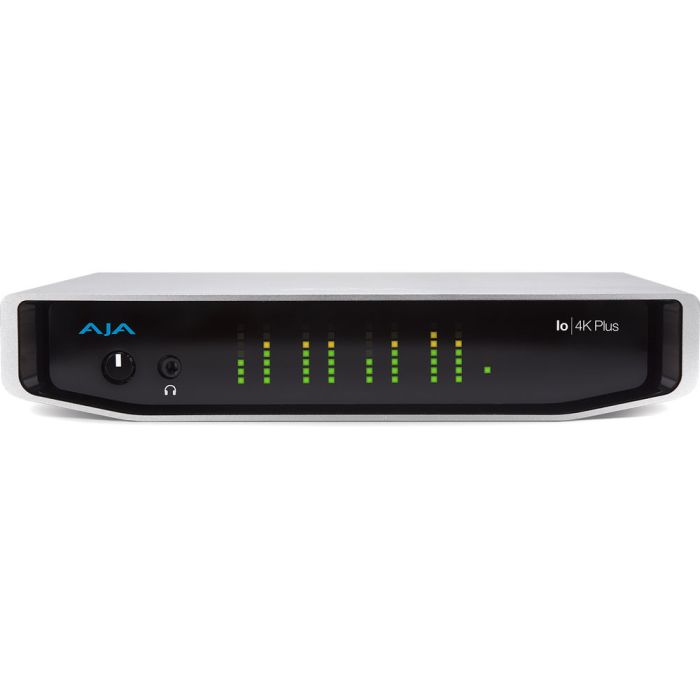

AJA Io 4K Plus Professional Video I/O with Thunderbolt™ 3 Performance

Request for Price
SKU
Io-4k-plus

Product Highlights:

  • Portable 4K/UltraHD and HD/SD capture and playback across Thunderbolt 3
  • Backward compatibility with existing Thunderbolt hosts
  • 12G/6G/3G/1.5G-SDI and HDMI 2.0 I/O for 4K, UltraHD, 2K, HD and SD with HFR support up to 60p at 4:2:2
  • Real-time 4K/UltraHD to 2K/HD down-conversion
  • 8-,10- and 12-bit 4:2:2 and 4:4:4 over 12G-SDI or HDMI 2.0 workflow support
  • Two Thunderbolt 3 ports allow easy daisy-chaining of up to six Thunderbolt devices
  • 16-channel embedded audio on SDI; 8-channel embedded audio on HDMI; 4-channel analog audio in and out via XLR breakout.

Io 4K Plus is the cutting edge of capture and output hardware available over Thunderbolt 3, offering a full set of professional video and audio connectivity with support for the latest 4K/UltraHD devices, High Frame Rate (HFR), High Dynamic Range (HDR) and deep color workflows. The power of Thunderbolt 3 enables Io 4K Plus to handle a wide range of formats from SD to HD, UltraHD and full 4K with frame rates up to 60p over both 12G-SDI and HDMI 2.0 with single cable simplicity, plus HDR 10 and HLG support over HDMI for emerging HDR workflows.

Thunderbolt 3 – Solutions from AJA

Bring more power, speed, and simplicity to your workflows with Thunderbolt™ 3 solutions from AJA.

Learn how AJA’s Io 4K Plus and Io IP I/O devices give you the bandwidth to easily move 4K/UltraHD, High Frame Rate, and deep color content over a single cable in and out of your computer, including HDR support across HDMI 2.0.

Professional Connectivity: 12G-SDI and HDMI 2.0

Today's workflows demand speed, bandwidth, and simplicity.  Io 4K Plus supports 4K, UltraHD, 12G/6G/3G/1.5G-SDI, Dual Link, HD-SDI and SD-SDI as well as UltraHD and HD over HDMI 2.0 for both capture and output. The HDMI output is also able to accurately display HDR 10 and HLG to support emerging HDR workflows.

12G-SDI and HDMI 2.0 bring both power and simplicity to your projects, with the ability to use single cables for both input and output for the most demanding workflows. 12G-SDI is backwards compatible with SDI sources, covering all your bases through a single port. HDMI 2.0 allows high raster and frame rate capture and the ability to display the same to affordable and beautiful HDMI 2.0 displays.

HDR

HDR or High Dynamic Range, provides the ability to display a wider and richer range of colors, much brighter whites, and much deeper, darker blacks than standard signals allow. This gives your imagery a more ‘dynamic’ look and allows for natural true to life colors to be communicated to your audience.

Io 4K Plus provides this support for your 4K/UltraHD/2K and HD HDR pipelines to HDMI compatible displays in software v14  with HLG and HDR 10 support with HDR Infoframe metadata, in accordance with HDMI 2.0a/CTA-861.3 and HD.

v14.2 Desktop Software offers HDR input from HDMI 2.0 input for capturing PlayStation and PlayStation Pro game play and more.

Explore more of our HDR Solutions here:

Io-4k-plus - Specification

Specs
Video Formats
4K::4096 x 2160p: 60/59.94/50/48/47.95/30/29.97/25/24/23.98
3840 x 2160p: 60/59.94/50/48/47.95/30/29.97/25/24/23.98
2K::2048 x 1080p: 60/59.94/50/48/47.95/30/29.97/25/24/23.98
2048 x 1080PsF: 30/29.97/25/24/23.98
HD::1080p: 60/59.94/50/48/47.95/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
SD::525i: 29.97
625i: 25

Please Note: High Frame Rate Capabilities Are Dependent on Host System Attributes. Not All Systems and Configurations Will Support All Frame Rates
Input/Output
Video Inputs:12G-SDI:SMPTE-2082, 8-/10-/12-Bit
6G-SDI: SMPTE-2081, 8-/10-Bit
3G-SDI: SMPTE-259/292/296/424/425, 8-/10-/12-Bit
4K/UltraHD: 4 x BNC (4:4:4)
1.5G-SDI: SMPTE 372M, Dual-Link HD 4:4:4 (2 x BNC), 8-/10-/12-Bit
1.5G-SDI: SMPTE 292M, Single-Link 4:2:2 (1 x BNC), 8-/10-Bit
HDMI v2.0
30/36 Bits/Pixel, RGB or YUV, 6 Gb/s per Color Component
4K, UltraHD, 2K, HD and SD with HFR Support up to 60p (4:2:2), 8-/10-Bit
Please Note: 6G/12G-SDI Configured Ports Support UltraHD/4K Only. 12-Bit Support Is Application Dependent
Video Output:12G-SDI:SMPTE-2082, 8-/10-/12-Bit
3G-SDI: SMPTE-259/292/296/424/425, 8-/10-/12-Bit
4K/UltraHD: 4 x BNC (4:4:4)
1.5G-SDI: SMPTE 372M, Dual-Link HD 4:4:4 (2 x BNC), 8-/10-/12-Bit
1.5G-SDI: SMPTE 292M, Single-Link 4:2:2 (1 x BNC), 8-/10-Bit
HDMI v2.0
30/36 Bits/Pixel, RGB or YUV, 6 Gb/s per Color Component
4K, UltraHD, 2K, HD and SD with HFR Support up to 60p (4:2:2), 8-/10-Bit
Please Note: 6G/12G-SDI Configured Ports Support UltraHD/4K Only. 12-Bit Support Is Application Dependent
:
Audio Input
Digital:16-Channel, 24-Bit SDI Embedded Audio, 48 kHz Sample Rate, Synchronous
8-Channel, 24-Bit HDMI Embedded Audio, 48 kHz Sample Rate, Synchronous
:
Analog:DB-25 Connector: 4-Channel, 24- and 16-Bit D/A Analog Audio, 48 kHz Sample Rate
+24 dBu Full Scale Digital (0dBFS) ±0.2 dB 20 to 20 kHz Frequency Response Input Is Supported Across Ch. 1-4
Audio Output
Digital:16-Channel, 24-Bit SDI Embedded Audio, 48 kHz Sample Rate, Synchronous
8-Channel, 24-Bit HDMI Embedded Audio, 48 kHz Sample Rate, Synchronous
:
Analog::DB-25 Connector: 4-Channel, 24- and 16-Bit D/A Analog Audio, 48 kHz Sample Rate
+24 dBu Full Scale Digital (0 dBFS) ±0.2 dB 20 to 20 kHz Frequency Response Input Is Supported Across Ch. 5-8
:
:
Reference and LTC I/O
Reference:Analog Color Black (1 V) or Composite Sync (2 or 4 V) or HD Tri-Level Sync (1 V)
Reference Input Is Terminated into 75 Ohms When Genlock Is Set to Ref In
:
:
LTC I/O:1 x BNC LTC Output
1 x BNC Assignable to Reference Video or LTC Input
Machine Control:1 x RS-422, Sony 9-Pin Protocol
Interface
Interface:2 x Thunderbolt 3
Mechanical
Power:1 x 4-Pin XLR
10 to 20 VDC
30 W Typical
36 W Max
70 W Max with USB-Type C Power Delivery to External Devices
Environmental:Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -40 to 140°F / -40 to 60°C
Operating Humidity: 10 to 90% non-condensing
Operating Altitude: <10,000' / 3000 m
Dimensions:8.74 x 8.11 x 1.65" / 22.20 x 20.60 x 4.19 cm
Weight:3.4 lb / 1.5 kg
Packaging Info
Package Weight:5.905 lb
Box Dimensions (LxWxH):9.95 x 9.55 x 4"
