AJA openGear 8-Channel 3G-SDI Analog Audio Embedder/Disembedder with DashBoard Support

SKU
OG-3G-AMA
image-icon
Request for Price
Add to Compare
Email
Product Highlights:
  • openGear compatible card
  • 3G-SDI Embedder/Disembedder
  • 8-Channel Balanced Analog Audio I/O
  • Controlled by DashBoard network control software and external DIP switch
  • 8x 3-Pin Terminal Block connectors (included)
  • Use with openGear 2RU frames including AJA’s OG-3-FR frame
  • Five year warranty

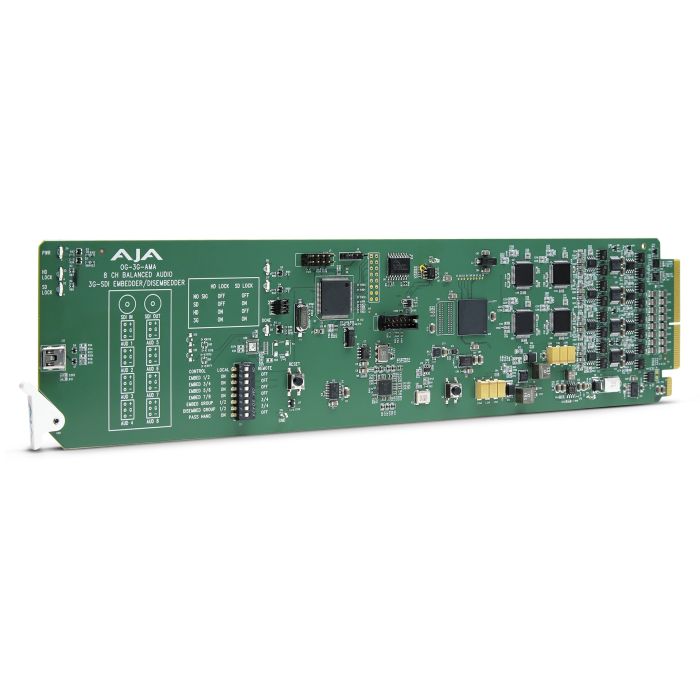

main product photo

An openGear 8-Channel analog audio embedder/disembedder, OG-3G-AMA supports 3G-SDI input and output up to 1080p 60, and automatically detects and configures to the input video standard. It uses 3-pin terminal block connectors that can be set to perform audio input or output functionality. Analog audio levels and audio embedding/disembedding are selectable, with embedding/disembedding on a channel pair basis to pass 3G-SDI input audio or embed input analog audio from 3-pin terminal block connectors.

Designed for use in high-density openGear’s 2RU frames including AJA’s OG-3-FR 2RU frame, new DashBoard Software support on Windows®, macOS® and Linux® offers remote control and monitoring of the openGear architecture and provides convenient and industry-standard configuration, monitoring and control options over a PC or local network.

openGear Compatibility

The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.

Flexible I/O

The modular rear panel allows custom I/O connections per card (included with individual cards).

Failsafe

The optional redundant power supply provides a secondary power source in the event of a primary power failure.

Ethernet Access

A standard Ethernet connection allows the frame to be accessed via the Dashboard application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.

Write Your Own Review
You're reviewing:AJA openGear 8-Channel 3G-SDI Analog Audio Embedder/Disembedder with DashBoard Support
Your Rating

Items Included:

  • AJA openGear 8-Channel 3G-SDI Analog Audio Embedder/Disembedder with DashBoard Support
  • Limited 5-Year Warranty
AJA OG-3G-AMA - User Manual (Size: 2 MB)

OG-3G-AMA - Specification

More Information
General
Video Formats:(2K) 2048 x 1080p
(2K) 2048 x 1080PsF
(HD) 1920 x 1080p
(HD) 1920 x 1080PsF
(HD) 1920 x 1080i
(HD) 1280 x 720p
(SD) 720 x 576i
(SD) 720 x 480i
Video Input Digital:1x 3G-SDI BNC, SMPTE-259/292/372/424
Video Input Formats:1x 3 Gb SDI (level A or B)
(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080i 50, 59.94, 60
(HD) 1280 x 720p 50, 59.94, 60
1x 1.5 Gb SDI
(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30
(2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080i 50, 59.94, 60
(HD) 1280 x 720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1x 270 Mb SDI
(SD) 625i 50
(SD) 525i 59.94
Video Output Digital:1x 3G-SDI BNC, SMPTE-259/292/372/424
Video Output Formats:Video Out is a delayed, reclocked version of Video In, at same frame rate, etc. Video Out is undefined when no input.



Video Latency, time measured between video input and video output connector:
3G level A = 3.2 usec
3G level B = 6.1 usec
HD (1.5 Gb) = 6.3 usec
SD (270 Mb) = 17.2 usec
Audio Inputs and Outputs:Audio Connectors
8 Analog Audio
4x 2-Pair Balanced Analog Audio 3-Pin Terminal Block connectors; 8 Channel In, 8 Channel Out or 4 Channel In & 4 Channel Out
Digital Audio Converters
24-bit
Embedded Audio
SMPTE 272M (SD): 20-bit, 48 kHz synchronous
SMPTE 299M (3G/HD): 24-bit, 48 kHz synchronous
Incoming embedded audio can be passed, removed, or overridden.
16 Channels supported on the SDI at any given time (8 of which can be from the analog inputs).
Embed Path Audio Latency, time measured between audio input and video output connector:
1100 usec
Disembed Path Audio Latency, time measured between video input and audio output connector:
1200 usec
Analog Audio Levels
Configured via Dashboard software:
Pro 1: 0 dBfs = +24 dBu
Pro 2:0 dBfs = +18 dBu
Pro 3: 0 dBfs = +15 dBu
Consumer 1: 0 dBfs = +12 dBu
User Controls:External DIP switch
openGear DashBoard network control software via Windows, macOS or Linux
Size (w x d x h):openGear standard form factor, front slot and rear card. Two slots required for each card.
Weight:0.5 lb (0.3 kg)
Power:openGear frame compatible, 5.0 watts max per card
Environment:Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)
