AJA OG-DANTE-12GAM openGear 12G-SDI/DANTE 64-Channel Embedder/Disembedder

SKU
OG-DANTE-12GAM
image-icon
Request for Price
Add to Compare
Email

Product Highlights:

  • Support for 12G/6G/3G SDI embedded audio to and from Dante
    • Supports 4K/UHD/HD/SD up to 60p
  • Up to 64ch simultaneous embedding/disembedding
  • Supports 44.1kHz, 48kHz, 88.2kHz, 96kHz Sample Rates
  • Supports PCM 16, 24, and 32 Encoding
  • Low Latency – 1ms
  • Dual, and independent 12G-SDI, (2x In, 2x Out)
  • 2 x redundant 1Gbit ethernet
  • Supports 16 embedded audio channels per I/O for up to 64ch
  • Compatible with openGear frames from AJA and 3rd parties
  • Up to 10 of these cards in a single frame
    • Up to 640 channels of SDI/Dante audio bridging per chassis
  • Support for DashBoard control software
  • Support for Dante Controller software
  • AJA five-year warranty

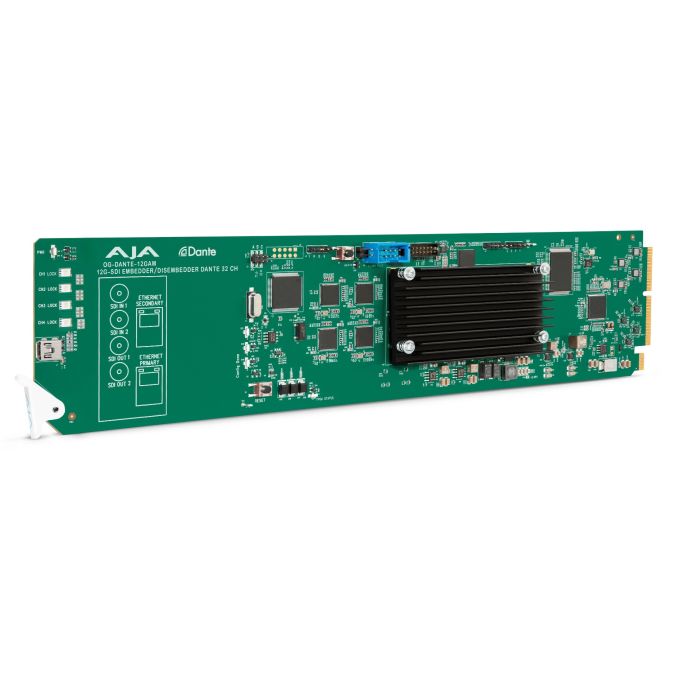

main product photo

AJA OG-DANTE-12GAM is an openGear, Dante audio embedder/disembedder, with dual 12G-SDI input and output ports providing up to 32-channels of audio embedding and 32-channels of disembedding simultaneously. OG-DANTE-12GAM provides the bridge between SDI and Dante infrastructures.

Dante audio networking provides digital audio distribution over local and wide-area networks with low latency, using standard network hardware or by connecting into a standard network infrastructure. This offers many advantages over analog, AES, and MADI infrastructures, including audio system scalability, easier installation, and simplified wiring.

A fully populated OG-X-FR openGear frame with ten OG-DANTE-12GAM cards, provides an incredible 640-channels of audio bridging in a rack-mountable form factor for a wide range of needs.

Write Your Own Review
You're reviewing:AJA OG-DANTE-12GAM openGear 12G-SDI/DANTE 64-Channel Embedder/Disembedder
Your Rating
AJA OG-DANTE-12GAM - Manual (Size: 5.2 MB)

OG-DANTE-12GAM - Specification

More Information
General
Video Formats:(4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920x1080i 50, 59.94, 60
(HD) 1280x720p 50, 59.94, 60*
(SD) 625i 50
(SD) 525i 59.94
RGB and YCbCr, 4:4:4/4:2:2, 10-bit


Note: Raster and frame rate dependent, please see OG-Dante-12GAM Video Formats in Documents and Manual.
Video Input Digital:2-channel independent 12G-SDI BNC connectors, SMPTE 259/292/424/2081/2082
Single Link SD/HD/2K/UltraHD/4K
Video Output Digital:2-channel independent 12G-SDI BNC connectors, SMPTE 259/292/424/2081/2082
Single Link SD/HD/2K/UltraHD/4K
Cable Equalization:(Belden 1694A coax)

12 Gbps, 65m
6 Gbps, 120m
3 Gbps, 180m
1.5 Gbps, 200m
270 Mbps, 405m
Video Path Delay:Video Out is a delayed, reclocked version of Video In, at the same format and frame rate. Video Out is undefined when no input.

Video Latency, time measured between video input and video output connector:
12G = 3.2 µsec
6G = 3.2 µsec
3G level B-DL = 6.3 µsec
3G level A = 3.2 µsec
HD (1.5 Gb) = 6.3 µsec
SD (270 Mb) = 17.2
Audio Input Digital:SDI: Two independent 12G-SDI BNC connectors, 16 embedded channels each
Dante: 1x Primary Ethernet port and 1x Secondary Ethernet port, 32-channels
Audio Output Digital:SDI: Two independent 12G-SDI BNC connectors, 16 embedded channels each
Dante: 1x Primary and 1x Secondary Gigabit Ethernet ports, 32-channels
SDI Embedded Audio:SMPTE 299M (12G/6G/3G/1.5G): 24-bit, 48 kHz synchronous
SMPTE 272M (SD): 20-bit, 48 kHz synchronous
Incoming embedded audio can be passed, removed, or overridden
4 groups (16-channels) of audio supported per SDI path

Note: 2048x1080p/PsF 29.97 and 30 formats support a maximum of 8-channels embedded audio.
Dante Audio:Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz
Encoding: PCM 16, PCM 24, PCM 32
Audio Latency:Embed Path 1500 µsec
Disembed Path 1410 µs
User Interface:openGear DashBoard network control software via Windows, macOS or Linux
Dante Controller
Size:openGear standard form factor, front slot and rear card. Two slots required for each card.
Weight:0.5 lb (0.3 kg)
Power:openGear frame compatible, 15 watts max per car
Environment:Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)
