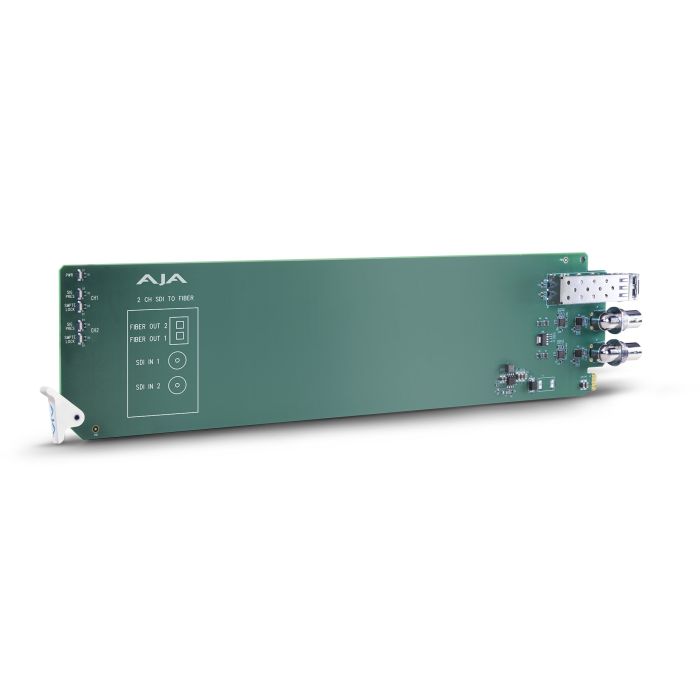

AJA OG-FIBER-2T-MM 2-Channel 3G-SDI to Multi-Mode LC Fiber Transmitter
SKU
OG-FIBER-2T-MM
- Video Formats: 100 Mbps - 3 Gbps, format agnostic
- Inputs: 2x Independent 3G-SDI Inputs, BNC connectors
- Outputs: 2x Independent Multi-Mode optical fiber, LC connectors
- Automatic detection and re-clocking
- 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
- All other rates are passed through and not reclocked
- Wavelength: 850 nm
- Optical Power: -7dBm (min), -2dBm (max)
- Power: 2.5 watts
- Hot-swap capable
- Compatible with DFR-8321 and OG3 openGear frames
The OG-FIBER-2T-MM offers unmatched flexibility and cost efficiency for 3G-SDI Fiber conversion, allowing for cable runs up to 700 m (2296 ft) for OM4 and 300 m (984 ft) for OM3 for Multi-Mode* fiber optic cables - useful for eliminating ground loop problems.
Connectivity
The 3G-SDI inputs are re-clocked with best-in-class input jitter tolerance. 3G-SDI rates of 270Mb, 1.5Gb, and 3Gb are supported. The fiber connector is attached to the main card for added reliability and cost savings.
