AJA OG-ROI-SDI openGear 3G-SDI to 3G-SDI/HDMI Scan Converter

SKU
OG-ROI-SDI
image-icon
Request for Price
Add to Compare
Email

Product Highlights:

  • 3G-SDI to HDMI 1.4/3G-SDI conversion up to 1080p 60
  • 3G-SDI input with loop through
  • Region of Interest scaling
  • Frame rate conversion
  • Up, down, cross-conversion
  • Aspect ratio conversion and image flip/rotation
  • Supports 8ch of embedded audio and 2ch analog audio output
  • 2 x 3-Pin Terminal Block connectors (included)
  • Reference Source (Free Run, Card Ext, OG Frame Ext Ref 1 & 2)
  • DashBoard Support
  • Hot swappable
  • Up to 10 of these cards in a single frame
  • AJA five-year warranty

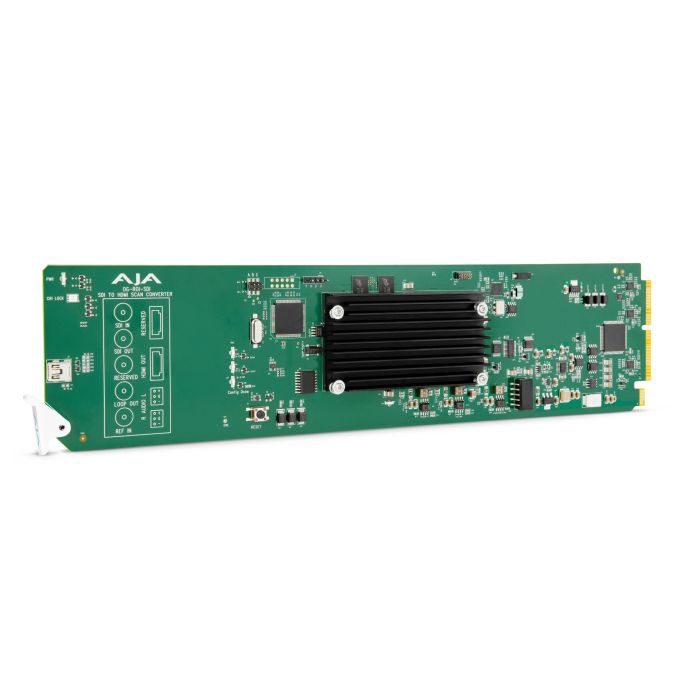

main product photo

AJA’s OG-ROI-SDI is an openGear card that allows exceptionally high-quality scan conversion of SDI inputs to 3G-SDI and HDMI baseband video outputs. With incredible region-of-interest image scaling as well as aspect ratio and frame rate conversion, OG-ROI-SDI fulfills the growing need to properly incorporate extractions from 3G-SDI sources into 3G-SDI and HDMI feeds without sacrificing budget or space.

Write Your Own Review
You're reviewing:AJA OG-ROI-SDI openGear 3G-SDI to 3G-SDI/HDMI Scan Converter
Your Rating
AJA OG-ROI-SDI - Manual (Size: 6.3 MB)

OG-ROI-SDI - Specification

More Information
General
Video Input Formats:Video Signals:
(HD) 1920x1080i 50, 59.94
(HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1280x720p 50, 59.94, 60
(SD) 625i, 50
(SD) 525i, 59.94
Video Output Formats:(HD) 1920x1080p 50, 59.94, 60, SMPTE 425-1 Level A mapping structure 1 (4:2:2 10-bit YCbCr)
(HD) 1920x1080p 23.98, 24, 25, 29.97, 30
(HD) 1920x1080i 50, 59.94, 60
(HD) 1280x720p 50, 59.94, 60
(SD) 625i 50
(SD) 525i 59.94
Color Range:Full
SMPTE
Reference Source:Free Run
Ext Ref
Reference Input:Supported reference video inputs include:
1080i tri-level sync
1080p tri-level sync
720p tri-level sync
625i Color Black
525i Color Black
75 ohm terminating
Video Input:1x 3G-SDI BNC, SMPTE-259/292/424
Video Outputs:1x 3G-SDI BNC, loop through
1x 3G-SDI BNC, SMPTE-259/292/424
1x HDMI Type A, HDMI v1.4
Audio I/O:24-bit, 16-channel embedded SDI audio input
24-bit, 16-channel embedded SDI audio output
24-bit, 8-channel HDMI audio output
Balanced analog audio outputs, 2x 3-Pin terminal block connectors
User Interface:openGear DashBoard network control software via Windows, macOS or Linux
Size:openGear standard form factor, front slot and rear card. Two slots required for each card.
Weight:0.5 lb (0.3 kg)
Power:openGear frame compatible, 7.0 watts max per card
Environment:Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)
