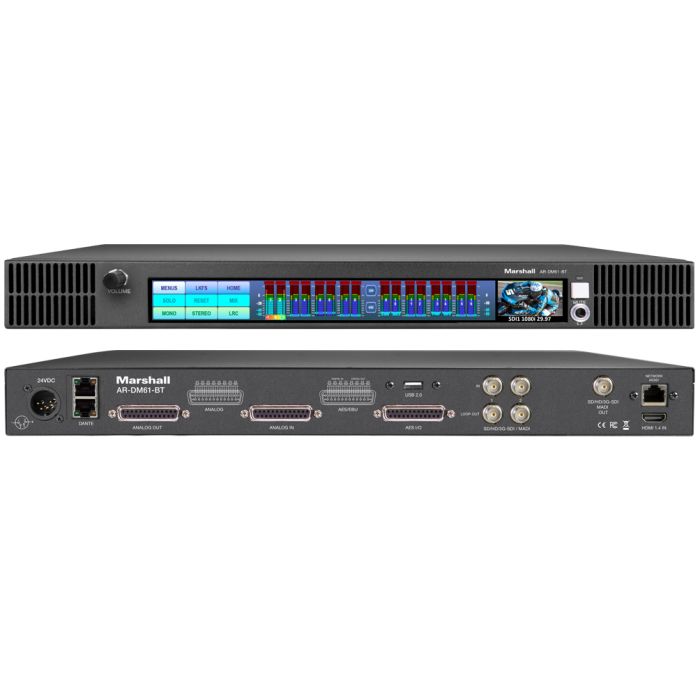

Marshall Electronics AR-DM61-BT Multi-Channel Digital Audio Monitor

SKU
AR-DM61-BT
$3,115.20

Product Highlights:

  • Built-In Live Video Preview Screen
  • 10" Touchscreen Panel LCD Display
  • High-Powered Stereo Speakers
  • 2 x 3G-SDI Inputs with Loop Through
  • 8 x Analog Input/Output "D" Connectors
  • 4 x Stereo AES "D" Connectors
  • Ethernet RJ45 with IP Addressing
  • Slim 1 RU Design
  • Supports Dolby and 7.1 Surround Sound
  • Includes AC Adapter and Rack Ears

The AR-DM61-BT Multi-Channel Digital Audio Monitor from Marshall is offered as a powerful audio/video quality-control solution that can be used for TV stations, broadcast trucks, transfer stations, and house of worship facilities.

It features flexible matrix routing, format conversion tools, and a pair of speakers packed into a single rack unit (1 RU). Built with a 10" wide LCD touchscreen, the AR-DM61-BT can display up to 64 audio channels from multiple signal types and includes a built-in live video preview confidence monitor.

Furthermore, the AR-DM61-BT supports two dedicated 3G-SDI inputs with loop-through (one MADI compatible), one HDMI input, four stereo AES inputs, eight balanced analog audio inputs, and eight balanced analog outputs. The sealed speaker enclosures maximize output in a small form factor for use in noisy control room environments where space is crucial.

Planned software upgrades and optional hardware extension ports enable the AR-DM61-BT to serve as a "future-proof" solution that will evolve with the ever-changing requirements of the broadcast A/V industry. Finally, additional support is available for the latest Dolby formats, Dante networked audio technology, and a built-in web server for software updates, storing, and retrieving presets.

  • 10" intuitive touchscreen LCD panel displays up to 64 channels vertical or two detailed channels horizontal with LKFS bars and peak indicators
  • Built-in live video preview monitor
  • Accepts inputs from multiple signal types with format conversion and matrix routing
  • High-powered stereo speakers (up to 100 dB output)
  • Push-to-mute functionality
  • Slim 1 RU design
  • Support for all current Dolby formats including 7.1 surround sound
  • Optional Dante networked audio module
  • Store and retrieve saved presets via web server
  • Software upgradeable "future-proof" platform
  • AES 67 compliant
Write Your Own Review
You're reviewing:Marshall Electronics AR-DM61-BT Multi-Channel Digital Audio Monitor
Your Rating

Items Included:

  • Marshall Electronics AR-DM61-BT Multi-Channel Digital Audio Monitor
  • 24 VDC Power Adapter
  • Removeable Rack Ears
  • Limited 2-Year Warranty

AR-DM61-BT - Specification

More Information
General
Video Input Connectors:2 x 3G-SDI Inputs with loop-through (MADI Compatible)
Video Formats:SDI up to 1080p 50, 59.94, 60 fps
Audio Input Connectors:SDI Embedded 16 Channels (Two Inputs)
Analog 8 Channels Balanced via 25-Pin DSub (Tascam Format)

AES 8 Channels Digital via 25-Pin DSub (Tascam Format)

MADI 64 Channels (Auto-Selected if Present on Either SDI Input)
Audio Output Connectors:AES/EBU 8 Channels via 25-Pin DSub (Tascam Format)
Analog 8 Channels Balanced via 25-Pin DSub (Tascam Format)
Headphones:1/4" / 6.3 mm Front-Facing Headphone Jack
USB 2.0:USB 2.0 Port for Product Test and Service
Network Connections:Ethernet 100 Base-T, Supports DHCP or Fixed Addressing
Ethernet:RJ45 with IP Addressing
Module Slot:Dolby or Dante Optional Modules
Housing:Metal Enclosure
Power Supply:24 VDC, 6.25 A, 4-Pin XLR Connector (Included)
Power Consumption:20 W, Typ.
ESD Protection:Human Body Model, ±15 kV (Air-Gap Discharge) and ±8 kV (Contact Discharg
Temperature:Operating: 32 to 104 F / 0 to 40°C
Storage: -4 to 140°F / -20 to 60
Relative Humidity:20 to 90%, No Condensation
Dimensions:1.75 X 17.36 x 14.3" / 4.45 x 44.0 x 36.3 cm
Weight:8.8 lb / 4 kg
Packaging Info
Package Weight:13.13 lb
Box Dimensions (LxWxH):21.7 x 19.2 x 7"
