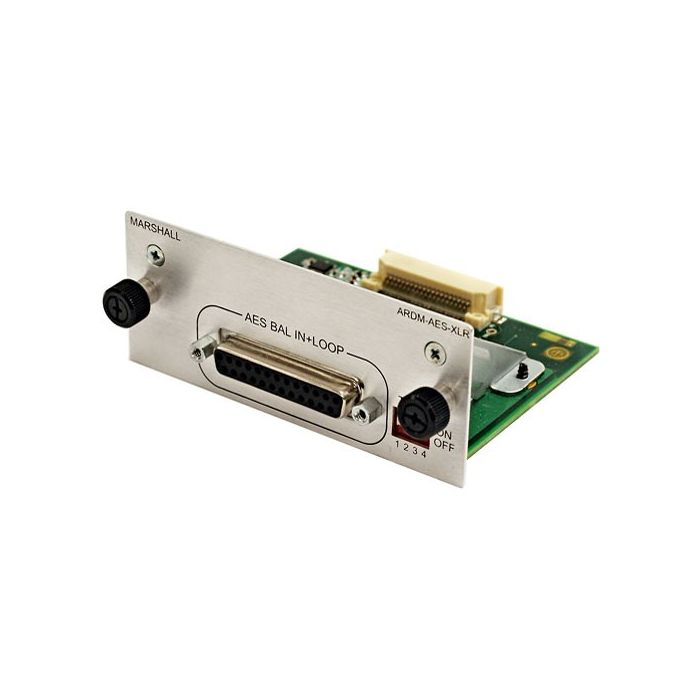

Marshall Electronics ARDM-AES-XLR Input Module for AR-DM2-L Audio Monitor

SKU
ARDM-AES-XLR
$462.50

Product Highlights:

  • AES/EBU Inputs
  • Passive Loop-Through Outputs
  • 4-Channel Stereo Support
  • Dolby Multi-Channel Decoding
  • DB-25 to 8 XLR Breakout Cable

The ARDM-AES-XLR Input Module for AR-DM2-L Audio Monitor from Marshall Electronics is a module designed for use with the AR-DM2-L Digital Audio Monitor. Expand the functionality of your monitor by adding this unit.

This model features (4) unbalanced AES/EBU inputs and (4) passive loop-through outputs, both over a DB-25 connector. It supports 4-channel stereo channels or Dolby multi-channel decoding. A DB-25 to 8 XLR breakout cable is also included.

Module for AR-DM2-L

Add this module to your AR-DM2-L Digital Audio Monitor to expand its functionality.

Audio Support

It supports 4-channel stereo or Dolby multi-channel decoding.

Breakout Cable

This model includes a DB-25 to 8 XLR breakout cable.
Write Your Own Review
You're reviewing:Marshall Electronics ARDM-AES-XLR Input Module for AR-DM2-L Audio Monitor
Your Rating

Items Included:

  • Marshall Electronics ARDM-AES-XLR Input Module for AR-DM2-L Audio Monitor
  • Module
  • Breakout Cable
  • Limited 1-Year Warranty

ARDM-AES-XLR - Specification

More Information
General
Construction:Metal, circuit board
Finish:Silver
Inputs:(4) unbalanced AES/EBU inputs (DB-25)
Outputs:(4) passive loop-through outputs (DB-25)
Packaging Info
Package Weight:2.1 lb
Box Dimensions (LxWxH):8.4 x 8.3 x 3.7"
