Autocue Master Series 17" SDI Prompter Kit with Large Wide-Angle Hood & 12" Rods

SKU
OCU-MSP17SDILWALR
$5,358.00

Product Highlights:

  • 17" LED-Backlit Monitor
  • 70:30 Prompter Glass
  • Large, Wide-Angle Hood
  • Pair of Long Mounting Rods (12")
  • 1280 x 1024 Resolution Display
  • 4:3 Aspect Ratio, Dimmable Tally
  • 1500 cd/m² Brightness
  • 1000:1 Contrast Ratio
  • Up to 20' Reading Range
  • Use with Optional QBox v6 Scroll Engine

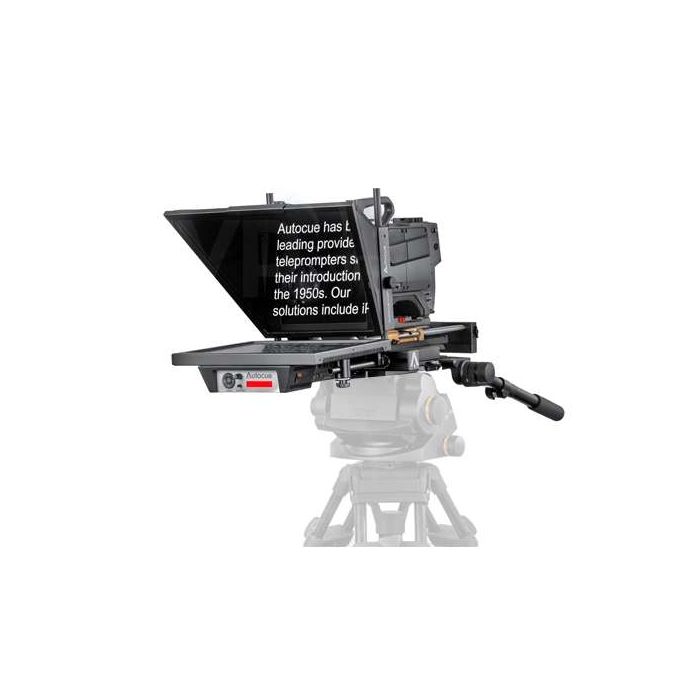

The Master Series 17" Teleprompter with Wide-Angle Hood Kit from Autocue/QTV  combines the 17" MSP monitor with a wide-angle hood and a set of long rods suitable for pedestal mounting. This Master Series system offers easy-to-read teleprompting for a variety of environments, even outdoors at a reading range up to 20'. The LED backlit monitor provides a 1280 x 1024 resolution with 1500 cd/m² brightness and a 1000:1 contrast ratio.

Lightweight and slim, the Master Series 17" kit features a broadcast-quality 70/30 beamsplitter, tool-less adjustment with flexible camera mounting, a dimmable tally light, and low power consumption. Use the prompter with the free, downloadable QStart software or pair it with the separately available Autocue QBox v6 or another video scroll engine. The kit includes a pair of 12" rods and a wide-angle hood with an easily adjustable hinged frame. Power the teleprompter using the included AC cable or via the 4-pin XLR DC input.

Features

  • Ultra-thin, lightweight LED-backlit monitor
  • 1500 cd/m² brightness, 1000:1 contrast ratio
  • Looping power, HD-SDI and composite video
  • Bright enough to be used in any lighting condition
  • Reading range up to 20'
  • Large, wide-angle hood with hinged frame
  • Internal power supply, built-in tally light
Write Your Own Review
You're reviewing:Autocue Master Series 17" SDI Prompter Kit with Large Wide-Angle Hood & 12" Rods
Your Rating

Items Included:

  • Autocue Master Series 17" SDI Prompter Kit with Large Wide-Angle Hood & 12" Rods
  • Large Wide-Angle Hood
  • 2 x Long Rods (12")
  • AC Cable
  • Limited 2-Year Warranty
  • Limited 3-Year Metalwork Warranty

OCU-MSP17SDILWALR - Specification

More Information
General
Reading Range:20' / 6.1 m
Beamsplitter Ratio:70/30
Beamsplitter Material:Glass
Reading Range:20' / 6.1
Beamsplitter Ratio:70/30
Beamsplitter Material:Glass
Monitor
Size (Diagonal):17" / 43.2 cm
Maximum Brightness:1500 cd/m2
Resolution:1280 x 1024
Aspect Ratio:4:3
Contrast Ratio:1000:1
Input:1 x HD-SDI (BNC)
1 x Composite (BNC)
Output:1 x HD-SDI (BNC)
1 x Composite (BNC)
Self Reversing:Yes
AC Input Power:100 to 240 VAC, 50 / 60 Hz
Output Voltage:100 to 240 VDC at 2 A
Power Consumption:50 W
Dimensions:14.8 x 12.4" / 376 x 316 mm
Weight:7.16 lb / 3.25 kg
Size (Diagonal):17" / 43.2 c
Maximum Brightness:1500 cd/m2
Resolution:1280 x 1024
Aspect Ratio:4:03
Contrast Ratio:1000:01:00
Input:1 x HD-SDI (BNC)
1 x Composite (BNC)
Output:1 x HD-SDI (BNC)
1 x Composite (BNC)
Self Reversing:Yes
AC Input Power:100 to 240 VAC, 50 / 60 Hz
AC Input Power:VAC50 / 60 Hz
Output Voltage:100 to 240 VDC at 2 A
Power Consumption:50 W
Dimensions:14.8 x 12.4" / 376 x 316 m
Weight:7.16 lb / 3.25
Physical
Rod Length:12" / 30.5 cm
Certifications:CE, FCC, RoHS, as per Manufacturer
Rod Length:12" / 30.5 c
Certifications:CE, FCC, RoHS, as per Manufacturer
Size 17inch
