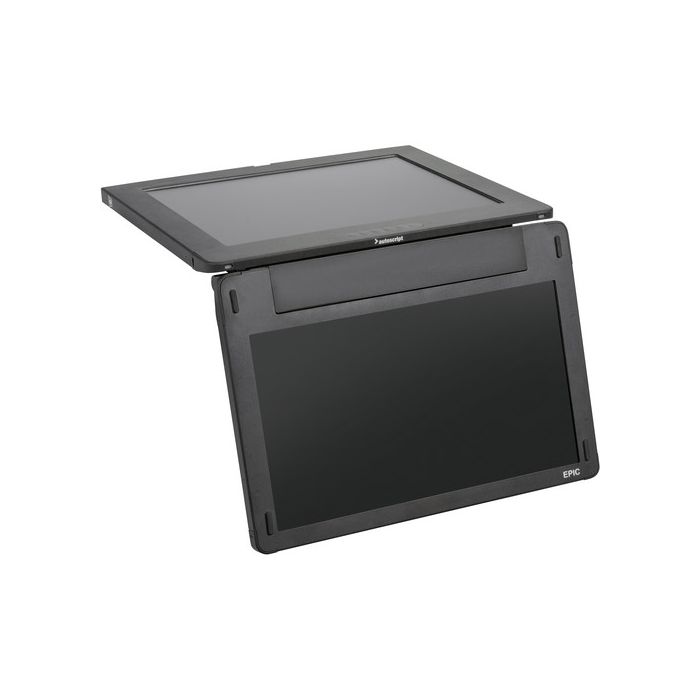

Autoscript Epic-IP 19" Prompt Monitor and Integrated 19" Talent Monitor

SKU
EPIC-IP19M
image-icon
Request for Price
Add to Compare
Email

  • Prompt Monitor

  • Slim Design, IP Connectivity

  • Connects to WinPlus-IP Software

  • HD-SDI and Composite Inputs

  • Simplified Rear Panel

  • Talent Monitor

  • Friction Hinges for Assembly Included

  • Power and Control from Prompt Monitor

main product photo

The Autoscript Epic-IP 19" Prompt Monitor and Integrated 19" Talent Monitor is a combination of a 19" prompting monitor that interfaces directly with WinPlus-IP software using its LAN connector, and a 19" talent confidence monitor. The prompt monitor also supports HD-SDI and composite inputs in a thin and lightweight design, which minimizes the amount of offset weights you need for your prompter.

The included friction hinge supports the lightweight talent monitor, which receives its power and control from the prompt monitor, minimizing the cable runs you would otherwise have to make.

Write Your Own Review
You're reviewing:Autoscript Epic-IP 19" Prompt Monitor and Integrated 19" Talent Monitor
Your Rating

EPIC-IP19M - Specification

More Information
General
Prompt monitor size: 19"
Integrated talent monitor size: 18.5"
Integrated monitors only weight: 6.9 kg / 15.2 lb
On-camera package weight: 14.7 kg / 32.4 lb
Prompt monitor aspect ratio:4.3
Prompt monitor brightness: 1500 nits
Prompt monitor resolution: 1280 x 1024 SXGA
Prompt monitor contrast:1000:1
Prompt monitor dimensions: 467 x 399 x 41mm / 18.4 x 15.7 x 1.6
Talent monitor aspect ratio:16:9
Talent monitor brightness: 350 nits
Talent monitor resolution: 1920 x 1080
Script and feedback inputs: LAN, 2x HD-SDI, 2x CVBS
Tally input: Opto sensor
Timecode Inputs: LTC, NTP (VITC, D-VITC optional)
Power consumption: 51W
Power input: 4-pin XLR, 12-16.8VDC
Outputs: Repeat Tally Output inc. 12V DC out
Viewing angle: H/V 170/160
Mounting: On-camera system with Intelligent Prompting backplate, carbon fibre hood and glass, rail and mounting bracket
Certifications: CE, FCC, BIS [registration no. R-41145165], RoHS
