Autoscript EVO-IP 19" SXGA Prompt Monitor Only with VITC/D-VITC Input, 1280x1024

SKU
EVO-IP19VM
Request for Price
  • Lightest on-camera system available, minimizes camera support issues

  • Networks directly to WinPlus-IP for simple integration and perfect synchronization without a scroll box

  • Intelligent Prompting mounting system for rapid setup and guaranteed lens/prompt monitor alignment

  • No counterbalance needed for almost all camera/lens configurations, further reducing the weight

  • 4 integrated tally lights, giving 270 degrees of visibility around the teleprompter

  • Integration of CLOCKPLUS-IP clock and camera ID display (not included) creates attractive time, tally, camera ID solution

  • Upgrade to EPIC-IP with addition of ETM

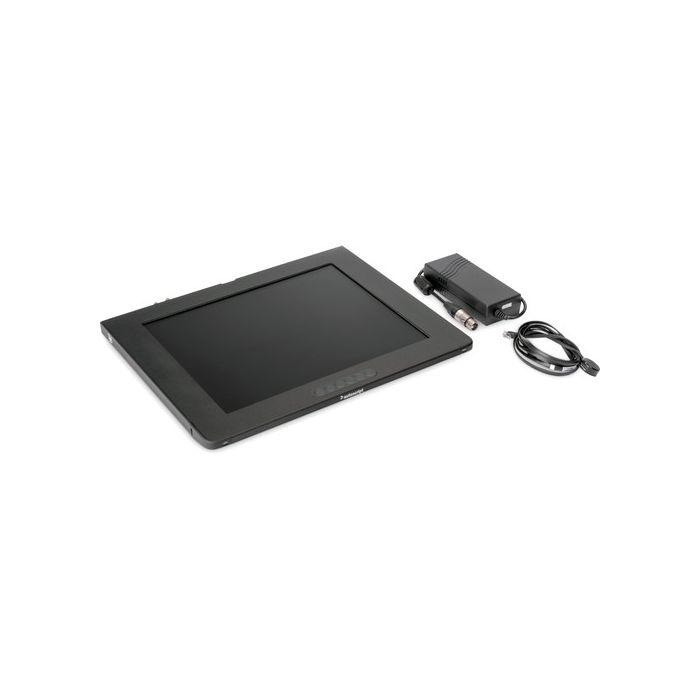

The new EVO-IP prompt monitor is the slimmest broadcast prompt monitor available, with a depth of just 41.5mm. The sleek 19" monitor is perfect for productions looking for a large but still lightweight solution. As an Intelligent Prompting device, the monitor includes IP connectivity and scroll engine functionality so that it can connect directly to the WinPlus-IP software application via an IP network; displaying smooth scroll prompter video without the need for an additional scroll engine.

HD-SDI and Composite inputs are also included. A new rear panel for all connections improves cable management and the integral back plate houses a quick release mechanism that allows rapid attachment/detachment of the monitor to/from the Intelligent Prompting mounting system.

The EVO-IP offers a high-bright, high-contrast solution in a smart new package. It ensures the script is clearly readable in any light while improving setup time and integration into modern broadcasts.

Write Your Own Review
You're reviewing:Autoscript EVO-IP 19" SXGA Prompt Monitor Only with VITC/D-VITC Input, 1280x1024
Your Rating

EVO-IP19VM - Specification

More Information
General
Size:19" / 48.3 cm
Resolution:1280 x 1024
Aspect Ratio:4:3
Viewing Angle:Horizontal: 170°
Vertical: 160
Brightness:1500 cd/m2
Contrast:1000:1
Input Connectors:Text: LAN, 2 x HD-SDI, 2 x CVBS
Tally: Opto Sensor
Timecode: LTC, NTP, VITC, D-VITC
Output Connectors:Repeat Tally
12 VDC
Power:Input: 12 to 16.8 VDC
Consumption: 29 W
Dimensions:18.4 x 15.7 x 1.6" / 46.7 x 39.9 x 4.1 cm
Weight:8.6 lb / 3.9 kg
