Autoscript EVO-IP Prompt Monitor (19")

SKU
EVO-IP19M
Request for Price
  • Slim Design

  • IP Connectivity

  • Connects to WinPlus-IP Software

  • HD-SDI and Composite Inputs

  • Simplified Rear Panel

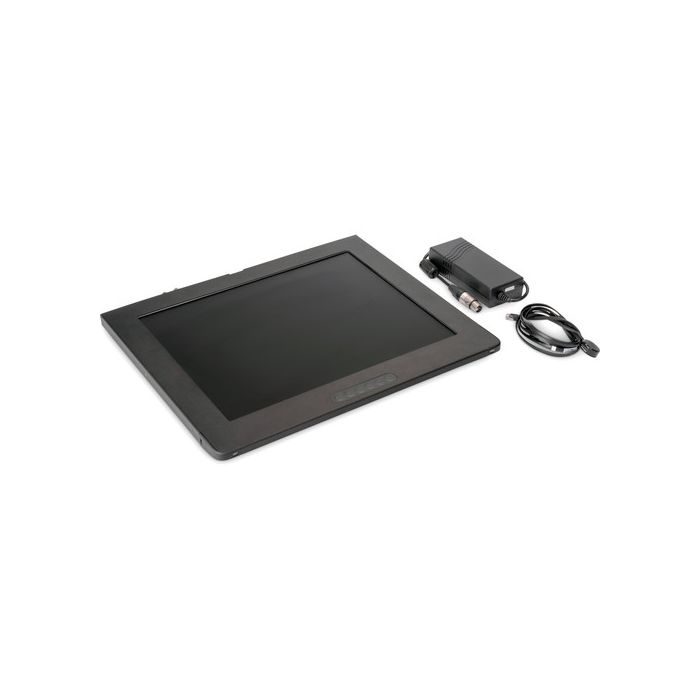

Sporting a thin design, the Autoscript EVO-IP19M Prompt Monitor is a 19" monitor that interfaces directly with WinPlus-IP software using its LAN connector. In addition to LAN, the monitor supports HD-SDI and composite inputs, providing you choice in how you get your text into your prompter system. Along with its thin and lightweight design, the monitor incorporates four tally lights, and it has improved cable connection over previous models. It features a high-bright, high-contrast solution for clear and readable text in virtually any brightness condition.

The monitor is IP ready, which allows it to network directly to WinPlus-IP (not included) for simple integration and synchronization without a scroll box.

This prompt monitor is a scant 1.63" thick and weighs only 8.6 pounds, making it a key component of lightweight teleprompting systems.

The monitor incorporates four tally indicators.

Write Your Own Review
You're reviewing:Autoscript EVO-IP Prompt Monitor (19")
Your Rating

EVO-IP19M - Specification

More Information
General
Size: 19"
Monitor only weight: 3.9 kg / 8.6 lb
On-camera package weight: 11.5 kg / 25.4 lb
Aspect Ratio:4.3
Brightness: 1500 nits
Resolution: 1280 x 1024 SXGA
Contrast 1000:1
Script Inputs: LAN, 2x HD-SDI, 2x CVBS
Tally Input: Opto Sensor
Timecode Inputs: LTC, NTP (VITC, D-VITC optional)
Power consumption: 29W
Power Input: 4-pin XLR, 12-16.8VDC
Outputs: Repeat Tally Output inc. 12V DC Out
Viewing Angle: H/V 170 Degrees/160 Degrees
Dimensions: 467 x 399 x 41mm / 18.4 x 15.7 x 1.6"
Mounting: On-camera system with Intelligent Prompting backplate, carbon fibre hood and glass, rail and mounting bracket
Certifications: CE, FCC, BIS [registration no. R-41145165], RoHS
