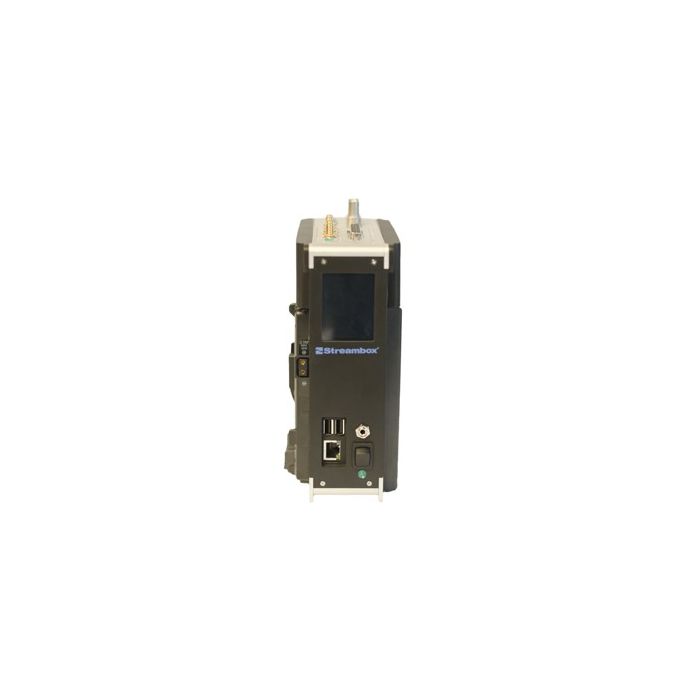

Avenir Mini Ultra Mobile Encoder

Avenir Mini is a small camera-mountable mobile encoder designed for maximum mobility and flexibility.

The Full HD/SD capable Avenir Mini delivers broadcast quality video using low bandwidth IP networks. Avenir Mini is the smallest Streambox hardware-based mobile encoder, weighing 3 pounds, measuring 4.4 inches wide, 1.9 inches tall, and 7 inches long. The small lightweight encoder can attach to the back of a battery on any professional video camera or be used in a custom designed pouch that can be looped through a belt. Avenir Mini has SDI and HDMI inputs and bonds up to four integrated wireless cellular modems or connects to the Streambox Signal Extender to stream high quality video enabling live or file-based acquisition from anywhere over a variety of low data rate networks.

AVENIR MINI SOLUTION FEATURES

• Includes 4 embedded 3G/4G/LTE Modems
• Encoding Bitrate: HD/SD from 64Kbps-35Mbps
• End-to-End latency: 1.5-2 seconds
• Boot up time less than 2 minutes
• Easy-to-use automated one-click streaming that utilizes LDMP's reliable multi-path networking and automated HD/SD visual settings based on best possible: bandwidth, latency, or resolution
• Powered by Low Delay Multi-Path (LDMP) networking technology, a reliable protocol that sends professional quality video over public intenet connections at low data rates without using bandwidth-consuming Forward Error Correction (FEC)
• HD-SDI & HDMI inputs
• One-step plug-in to Signal Extender
• IFB connection for live communication over a back channel
• Over 1 hour of HD streaming from one IDX battery
• Integrated high gain antenna array system
• Works directly with Streambox Decoders, Enterprise Server, and Streambox Live
• Remote management allows administrators to configure and manage Avenir Mini's presets from the control room, enabling a non-technical crew to operate in the field
• S&F Receiver (SFR) – A software upgrade that allows decoders to receive and store files directly from Avenir Mini
