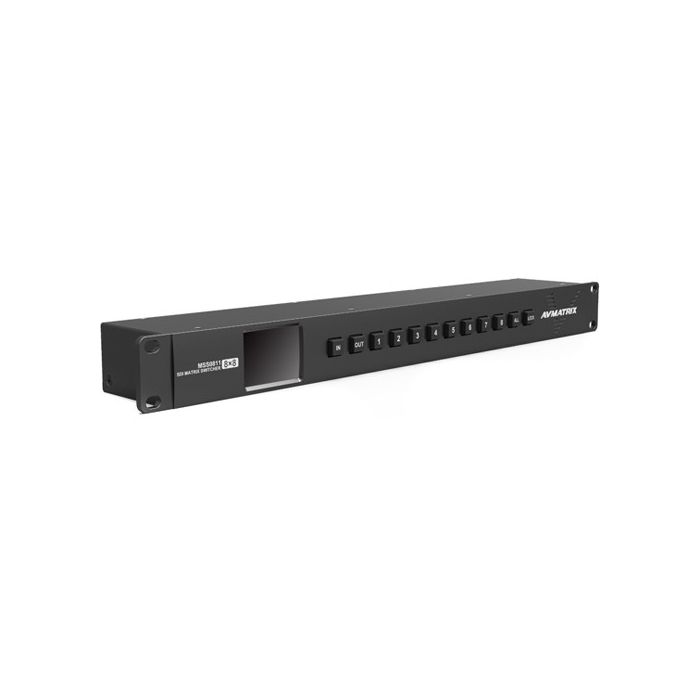

AVMATRIX 8 x 8 3G-SDI Matrix Switcher (1 RU)
SKU
MSS0811
$799.00
Product Highlights:
- 8 x 3G-SDI Inputs / 8 x 3G-SDI Outputs
- YUV Color Space
- Level A & B Signals Supported
- DVB-ASI Interface Compatible
The 1 RU 8 x 8 3G-SDI Matrix Switcher from AVMATRIX accepts eight channels of input, and can drive them to eight separate output feeds. It includes a multi-format technology that detects multiple video format sources of SD/HD/3G-SDI (level A&B) and DVB-ASI signals at the same time, and routes the multiple video destinations in 1080, 720, SD, NTSC, and PAL. It is controlled by manual switches on the front of the device and via RJ45 and RS-232 ports for software control as well as a USB Type-A port for keyboard control. Two 12 VDC power adapters are included to provide redundant power.
Multi-format technology can auto detect multiple video format sources of SD/HD/3G-SDI (level A & B) and DVB-ASI signals at the same time and route the multiple video destinations in NTSC and PAL SD, 720p, 1080 at any frame rate.
Full control from the front panel
Current channel status can be viewed visually from the 2.2" LCD screen
Lock button
PC control software allows you to connect a computer via Ethernet or via the RS-232 serial port
USB keyboard
Redundant power supply
Compact design
