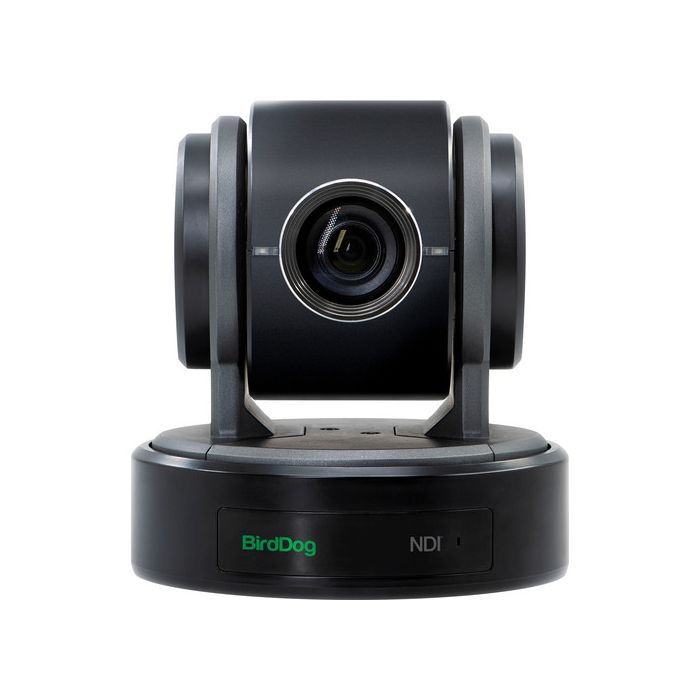

BirdDog Eyes P100 1080p Full NDI PTZ Camera (Black)


Product Highlights :

  • Entry-Level Full NDI Indoor PTZ Camera
  • 10x Optical Zoom
  • Ideal for Small to Mid-Size Environments
  • Simultaneous NDI and SDI Outputs

The Eyes P100, in black, is BirdDog's entry-level Full NDI indoor PTZ camera based on their custom NDI silicon chip. The P100 captures up to 1080p60 resolution and offers 10x optical zoom, ideal for small to mid-size meeting rooms and environments. The camera features simultaneous 3G-SDI and NDI outputs, allowing you to integrate into an NDI workflow and/or use legacy SDI equipment.

NDI is accessible via an Ethernet port provided on an included breakout cable. The breakout cable connects to an extension port on the rear of the camera and also offers a composite output, 3.5mm audio input/output jacks, and RS-232/422/485 control ports. The audio connectors allow the P100 to work with the BirdDog Comms NDI audio intercom platform. The BirdDog Comms Lite version of the software for Windows is included and it supports up to four BirdDog devices, and you can upgrade to the complete Comms Pro version at any later time. The camera is also compatible with the optional BirdDog Central software, which helps you decode NDI back to SDI (or HDMI). Also, the optional BirdDog PTZ Keyboard can be used over NDI or over RS-422/RS-232 in SDI mode.

As opposed to other types of NDI, such as NDI|HX, which is a compressed variant that reaches 12 Mb/s, the P100 features the visually lossless full NDI variable bit-rate iFrame codec that reaches up to 140 Mb/s at 1080p60.

Key Features

  • Entry-level Full NDI indoor PTZ camera
  • Up to 1080p60 resolution
  • 10x optical zoom ideal for small to mid-size environments
  • Simultaneous 3G-SDI and NDI outputs
  • Includes breakout cable with an Ethernet port (NDI), composite output, 3.5mm audio jacks, and RS-232/422/485 control ports
  • 128 presets
  • Up to 150°/s preset adjustment speed
  • 350º continuous pan
  • Auto, manual, and push focus
  • 0.5 lux minimum illumination
  • Includes BirdDog Comms Lite NDI audio intercom platform (Windows)
  • Optional BirdDog Central software supported for decoding NDI back to SDI
  • Optional BirdDog PTZ Keyboard supported
Write Your Own Review
You're reviewing:BirdDog Eyes P100 1080p Full NDI PTZ Camera (Black)
Your Rating

Items included :

  • 1x BirdDog Eyes P100
  • 1x IR Remote Controller (3V CR2032 Coin Lithium Battery Required)
  • 1x Camera Power Adaptor & Power Cord
  • 1x Bag of Mounting Screws
  • 1x USB port to 3.5mm audio jack adapter


More Information
Imaging Sensor Type 1/2.86"-Type CMOS Sensor
  Sensor Resolution Effective: 2.2 Megapixel
  IR Cut Filter Yes
  Built-In ND Filter None
  Focus Control Autofocus
Manual Focus
Exposure Control Shutter Type Electronic Rolling Shutter
  Shutter Speed 1/30000 to 1 Second
  Minimum Illumination 0.5 Lux
  Flip / Mirror Support Image Flip, Mirror (Vertical)
Lens Focal Length 4.7 to 47mm
  Optical Zoom Ratio 10x
  Max Digital Zoom 12x
  Field of View Horizontal: 60.9 to 6.43°
  Maximum Aperture f/1.6 to 3
Video Capture External Recording Modes SDI/BNC / HDMI / RJ45
1920 x 1080p at 25/29.97/50/59.94/60.00 fps
1920 x 1080i at 50/59.94/60.00 fps
1280 x 720 at 25/29.97/50/59.94/60.00 fps
  Broadcast Output NTSC
  IP Streaming NDI, TCP, UDP
1920 x 1080
1280 x 720
Control Presets 128
  Move Speed 150°/sec
  Movement Range Pan: 350° (-175 to 175°)
Tilt: 120° (-30 to 90°)
  Tally Light No
  Supported Control Protocols Pelco-D
Interface Video I/O 1 x BNC (3G-SDI) Output
1 x HDMI 1.4 Output
1 x RJ45 (NDI) Output
1 x USB-B Output
  Audio I/O 1 x 1/8" / 3.5 mm TRS Stereo Input
1 x 1/8" / 3.5 mm TRS Stereo Output
Power PoE Support PoE+ 802.3at
  Power I/O 1 x Barrel (12VDC) Input
  Power Consumption Device: 11.1 to 15.2 W
Environmental Operating Temperature 14 to 122°F / -10 to 50°C
  Operating Humidity 80%
General Certifications FCC Part 15
*as per Manufacturer
  Dimensions (W x H x D) 5.7 x 6.1 x 5.7" / 145 x 154 x 145 mm
  Weight 2.2 lb / 1 kg
Packaging Info Package Weight 5.2 lb
  Box Dimensions (LxWxH) 12 x 11 x 8"
