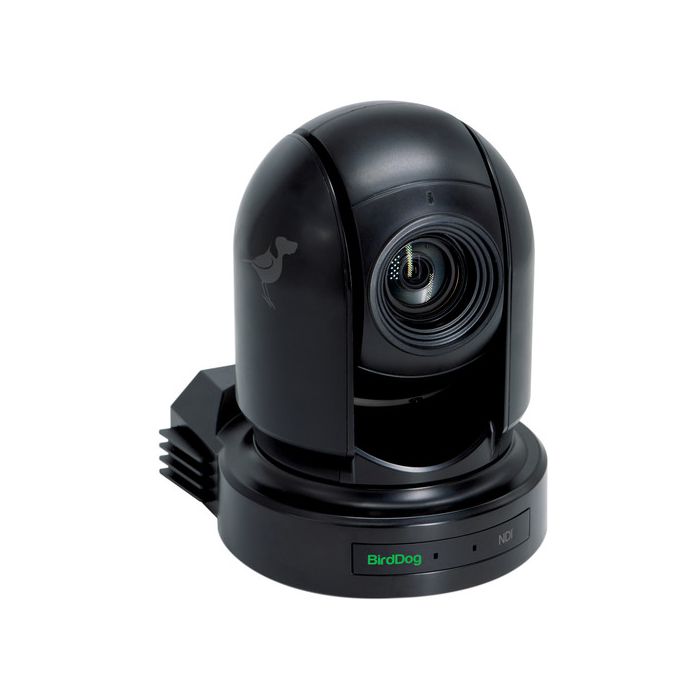

BirdDog Eyes P200 1080p Full NDI PTZ Camera (Black)

SKU
BDP200B
$1,995.00

Product highlights:

  • For Indoor Stadiums / Large Spaces
  • Fast 30x Optical Zoom and Autofocus
  • Suitable for Fast-Action Sporting Events
  • Custom NDI Silicon Chip (140 Mb/s)

Combining BirdDog's custom NDI silicon chip, 30x optical zoom, and Sony backlit sensor and image module, the BirdDog Eyes P200, in black, is a full NDI 1080p60 PTZ camera designed for large indoor spaces. Thanks to the fast autofocus and zoom ensured by the true Sony image module, the P200 is highly suitable for catching all the fast action in places such as sporting events. As opposed to other types of NDI such as NDI|HX, which is a compressed variant that reaches 12 Mb/s, the P200 features the visually lossless full NDI variable bit-rate iFrame codec that reaches up to 140 Mb/s at 1080p60.

Simultaneous live SDI, HDMI, and full NDI outputs complete the camera as a comprehensive solution. Between these connections, you can control the Eyes P200 live via your full NDI workflow or integrate RS-422, RS-485, and RS-232 serial control. Also, the optional BirdDog PTZ Keyboard can be used over NDI or over RS-422/RS-232 in SDI mode. The P200 can be powered by Power-over-Ethernet (PoE) or via the included power adapter.

The Eyes P200 also comes with the BirdDog Comms Lite audio intercom software, which supports up to four BirdDog devices. Comms Lite is Windows compatible and offers features such as director push to talk, mute camera operator, auto-detect NDI sources, monitor camera audio, and shortcut to Web console. For a more complete version of the application, an optional upgrade is available to Comms Pro. The camera is also compatible with the optional BirdDog Central software, which helps you decode NDI back to HDMI or SDI.

Key Features

  • Fast 30x optical zoom and autofocus thanks to the use of a true Sony image module
  • Highly suitable for capturing the fast action in sporting events
  • Designed for large indoor spaces such as sports stadiums, school auditoriums, and large meeting rooms
  • BirdDog custom NDI silicon chip; up to 140 Mb/s 1080p60 full NDI
  • Sony backlit sensor
  • Simultaneous, live SDI, HDMI, full NDI, and CVBS outputs
  • NDI and RS-422/RS-485/RS-232 control via dedicated RJ45 ports
  • Optional BirdDog PTZ Keyboard supported
  • Image stabilizer function when zoom is set to 30x ensures less screen blur
  • True WDR 130 dB
  • 128 presets at speeds up to 150°/sec (up to six presets can be stored in the included remote control
  • Audio input and output support with NDI streaming
  • Powered via Power-over-Ethernet (PoE) or the included power adapter
  • Includes BirdDog Comms Lite audio intercom software (Windows)
Write Your Own Review
You're reviewing:BirdDog Eyes P200 1080p Full NDI PTZ Camera (Black)
Your Rating

Items included :

  • 1x BirdDog Eyes P200
  • 1x IR Remote Controller (3V CR2032 Coin Lithium Battery Required)
  • 1x Camera Power Adaptor & Power Cord
  • 1x Bag of Mounting Screws
  • 1x RJ45 to RS232 Extension Cable
  • 1x RJ45 to RS422 Extension Cable
More Information
SPECS
Imaging Sensor Type 1/2.8"-Type CMOS Sensor
  Sensor Resolution Effective: 2.13 Megapixel
  Built-In ND Filter None
  Image Stabilization Digital
  Focus Control Autofocus
Manual Focus
Exposure Control Shutter Type Electronic Rolling Shutter
  Shutter Speed 1/10000 to 1 Second
  Minimum Illumination 0.01 Lux at 1/30 Shutter Speed
  Flip / Mirror Support Image Flip, Mirror (Vertical)
  White Balance 2000 to 10,000K
Presets: ATW, AWB, Indoors, Manual, Outdoors
Lens Focal Length 4.3 to 129mm
  Optical Zoom Ratio 30x
  Max Digital Zoom 12x
  Field of View Horizontal: 2.3 to 63.7°
  Maximum Aperture f/1.6 to 4.7
Video Capture External Recording Modes SDI/BNC / HDMI / RJ45
1920 x 1080p at 25/29.97/50/59.94/60.00 fps
1920 x 1080i at 50/59.94/60.00 fps
1280 x 720 at 25/29.97/50/59.94/60.00 fps
  Broadcast Output NTSC
  IP Streaming NDI, TCP, UDP
1920 x 1080
1280 x 720
Control Presets 128
  Move Speed 150°/sec
  Movement Range Pan: 350°
Tilt: 120° (-30 to 90°)
  Tally Light Yes
  Supported Control Protocols Pelco-D
VISCA
Interface Video I/O 1 x RJ45 (NDI) Output
1 x BNC (3G-SDI) Output
1 x HDMI 1.4 Output
  Audio I/O 1 x 1/8" / 3.5 mm TRS Stereo Input
1 x 1/8" / 3.5 mm TRS Stereo Output
  Other I/O 1 x RJ45 Control
2 x RJ45 (RS-232, RS-422, RS-485)
1 x Unspecified USB
Power PoE Support PoE+ 802.3at
  Power I/O 1 x Barrel (12VDC) Input
Environmental Operating Temperature 14 to 122°F / -10 to 50°C
  Operating Humidity 80%
General Mounting 1 x 1/4"-20 Female
  OS Compatibility Windows 10 or Later
*As of November, 2022: Check with manufacturer for the most up-to-date compatibility
  Certifications FCC Part 15
*as per Manufacturer
  Dimensions (W x H x D) 6.3 x 7 x 8.7" / 160 x 178 x 220 mm
  Weight 4.41 lb / 2 kg
Packaging Info Package Weight 7.25 lb
  Box Dimensions (LxWxH) 12.4 x 12.3 x 9.9"
