BirdDog Flex 4K HDMI In to Full NDI Encoder

SKU
BDFLEXENC
image-icon
$399.00
Add to Wish List Add to Compare
Email

Product highlights

  • Ultracompact Form with HDMI 2.0 Input
  • Supports up to UHD 4K30, 1080P60
  • PoE & DC Power Options
  • 15W DC Output to Power Monitor or Camera

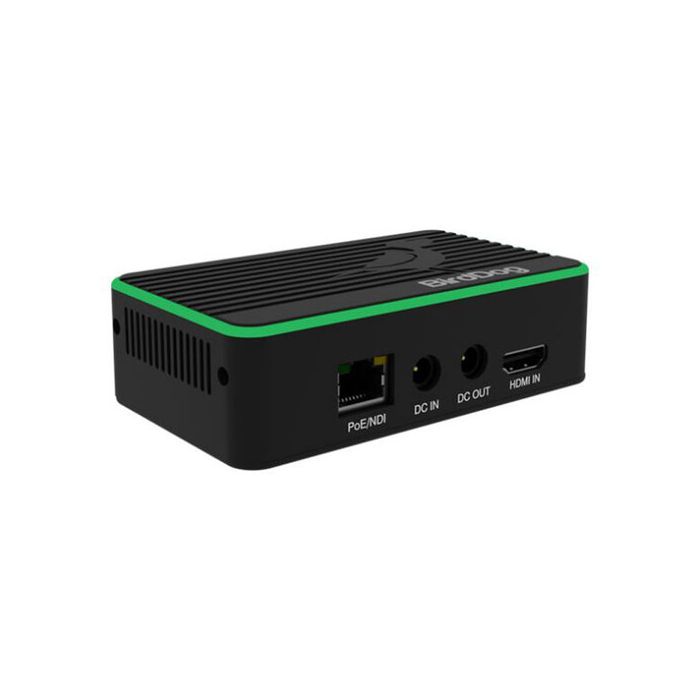

main product photo

The Flex 4K HDMI In to Full NDI Encoder from BirdDog is an ultracompact NDI interface for HDMI video sources. Connect your onboard monitor, camera, or other video source, and have it be instantly available on your NDI-enabled network. The BirdDog Flex In supports up to UHD 4K30 and 1080p60 resolution video.

Versatile power options include PoE or the included 12V power supply. A 15W DC output port enables you to power select monitors and cameras from your Flex 4K In power source. Tally information is displayed for both the talent and the operator and passed through to compatible equipment. Connect a separately available cable to the 2.5mm RS232 port for pass-through control of non-NDI PTZ cameras. Additional features include an adaptive bit rate, a cooling thermal design, and a headphone output for embedded HDMI audio.

Ultracompact Form

The Flex 4K In is slightly larger than a credit card and weighs just under five ounces

Single Cable Plus DC Power Out

A single Ethernet port funnels NDI, PoE, video, audio, tally, and audio intercom while a DC barrel output powers select monitors and cameras

Flexible Power Input Options

Power the Flex 4K In using PoE or via the DC input

PTZ Sidekick

Connect a PTZ control cable to encode NDI and add PTZ pass-through control for your non-NDI PTZ camera

Stay-Cool Design

A thermal design and quiet fans keep this unit cool even on the hottest days

Tally Support

A built-in tally display is available for viewing by both your talent and camera operator

Adaptive Bit Rate

Select the bit rate that best fits your 4K or HD production

Software Tools

Includes free BirdDog Central Lite, Dashboard, and Comms Lite software
Write Your Own Review
You're reviewing:BirdDog Flex 4K HDMI In to Full NDI Encoder
Your Rating

Items included:

  • BirdDog Flex 4K HDMI In to Full NDI Encoder
  • Power Adapter
  • Limited 1-Year Warranty

BDFLEXENC - Specification

More Information
Input
Video Input Connectors :1 x HDMI (HDMI 2.0)
Input Video Format :HDMI
UHD 4K: 25/29.97/30 fps
Audio Input Connectors :1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Stereo Analog Female
Embedded Audio Input :HDMI: 2-Channel
Output
Audio Output Connectors :1 x 1/8" / 3.5 mm TRS Stereo Analog Female
Embedded Audio Output :HDMI: 2-Channel
Connectivity
Other I/O :1 x 3.5 mm GPI Output
Expansion Slots :None
IP Streaming
Video IP Encoding :NDI: x
Power
Power Connector :1 x Barrel (12 VDC) Input
1 x Barrel (12 VDC) Output
PoE Support :PoE+ 802.3at

General
Dimensions:4.21 x 2.48 x 1.22" / 107 x 63 x 31 mm

Warranty Length :Limited 1-Year Warranty
tally light:yes
wifi support:yes
Packaging Info
Package Weight :1.425 lb

Box Dimensions (LxWxH) :7 x 6.3 x 4.3
