BirdDog KBD PTZ Controller with Integrated Screen

BirdDog
SKU
BDKBD
image-icon
Request for Price
Add to Compare
Email

Product Highlights:

  • PTZ Controller with 1280 x 720 Display
  • Monitor up to 4 Cameras Simultaneously
  • Effortless Camera Settings Sync
  • NDI|HX2 & NDI|HX3 Support
  • Integrated Tally Borders
  • Streamlined Access
  • Ocean-Bound Plastics & Aluminum Build

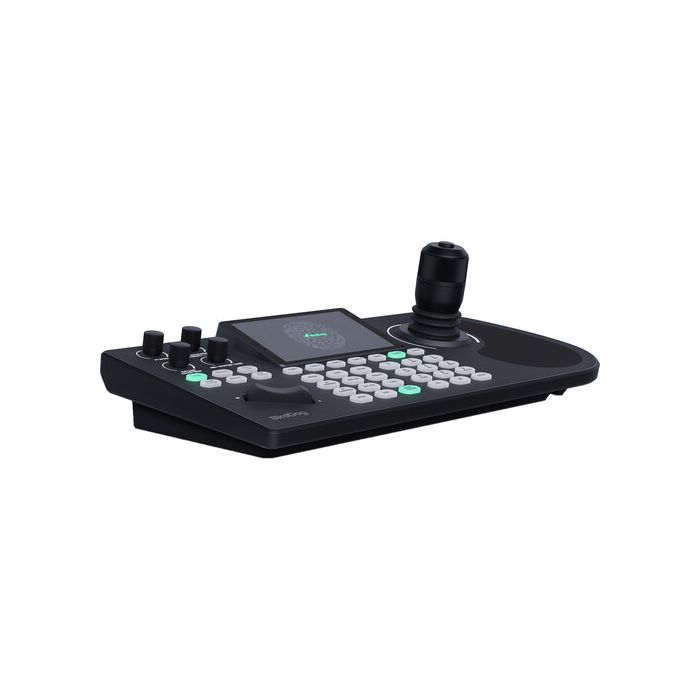

main product photo

Control your PTZ multicamera setup and monitor up to four cameras simultaneously with the KBD PTZ Controller with Integrated Screen from BirdDog. Built with ocean-bound plastics and recyclable aircraft-grade aluminum, the KDP boasts a rugged, ergonomic design with a large 1280 x 720 display to allow you to quickly pair and switch cameras with a single keystroke.

The new Effortless Camera Settings Sync function enables you to easily copy settings from one X-series device to another, and the integrated tally borders facilitate live switching with optional TriCaster or vMix platforms. The KDP offers NDI|HX2 and NDI|HX3 support as well as VISCA-IP, ONVIF, RS-232, and RS-422 for smooth workflow versatility. Balancing power, operational comfort, and eco-friendly innovation, the KDP is the ideal companion for studio production, live events, and mobile program acquisition applications.

All-Day Operational Comfort

Rugged, ergonomic design with a hand-rest area and tactile controls for seamless, extended use.

Expanded Screen Control

Monitor up to four cameras simultaneously or focus on one in full-screen mode. Pair and switch cameras with a single keystroke.

Super-Fine Control Mode

Fine-tune Mode provides 10x joystick sensitivity for precise on-air framing.

Streamlined Access

Access essential functions like pairing, switching, and setup instantly for a smooth, user-friendly experience.

Affordable Innovation

Refined through user insights, the KDP offers precision, comfort, and an eco-conscious design at an affordable price point.

Write Your Own Review
You're reviewing:BirdDog KBD PTZ Controller with Integrated Screen
Your Rating

Items Included:

  • BirdDog KBD PTZ Controller with Integrated Screen
  • Limited 5-Year Manufacturer Warranty



More Information
SPECS
Key Specs
Number of Supported Cameras
255 Channels via IP
Control I/O
1x D-Sub 9-Pin (RS-232) Input/Output
1x Phoenix (RS-422) Input/Output
1x RJ45 (IP Control, LAN) Input/Output
Controls
1x 3-Axis, Pan/Tilt, Programmable, Multifunction, Auto-Focus, Manual-Focus, Camera Movement Speed, Focus Speed, White Balance Joystick
Focus, Auto-Focus, Manual-Focus, Gain, Camera Selection, Preset Selection, Menu Buttons
Touchscreen
No
PoE Support
PoE 802.3af
Power Consumption
≤5 W
Security Lock Support
No
General
Number of Supported Cameras
255 Channels via IP
Supported Control Protocols
IP
NDI
NDI|HX2
NDI|HX3
ONVIF
Pelco-D
Pelco-P
RS-232
RS-422
VISCA
IP Streaming
NDIHX, ONVIF: UHD 4K
Control I/O
1x D-Sub 9-Pin (RS-232) Input/Output
1x Phoenix (RS-422) Input/Output
1x RJ45 (IP Control, LAN) Input/Output
Other I/O
1x USB-A Input/Output
Controls
1x 3-Axis, Pan/Tilt, Programmable, Multifunction, Auto-Focus, Manual-Focus, Camera Movement Speed, Focus Speed, White Balance Joystick
Focus, Auto-Focus, Manual-Focus, Gain, Camera Selection, Preset Selection, Menu Buttons
Presets
255 via IP, RS-232, VISCA, Pelco-P, Pelco-D
Display
Native Resolution
1280 x 720
Touchscreen
No
Power
PoE Support
PoE 802.3af
Power Connectors
1x Barrel / Coaxial
Power Consumption
≤5 W
Input Power
12 VDC
Physical
Operating Conditions
14 to 130°F / -10 to 54°C at 20 to 80% Humidity
Storage Conditions
14 to 130°F / -10 to 54°C at 0 to 90% Humidity
Security Lock Support
No
Dimensions
14.8 x 7 x 4.6" / 377 x 177 x 118 mm
Packaging Info
Package Weight
7.025 lb
Box Dimensions (LxWxH)
16.2 x 8.7 x 6.9"
