BirdDog P240 40X Full NDI PTZ Camera with HDMI/3G-SDI (Black)

SKU
BDP240B
image-icon
Request for Price
Add to Compare
Email

Product Highlights:

  • 1/2.5" Exmor R CMOS Sensor, 8.5MP
  • Full NDI 5.5 Support
  • 40x Optical Zoom
  • NDI/HDMI/3G-SDI Outputs
  • Balanced XLR Audio Output
  • XLR Audio Input with Phantom Power
  • Integrated ND Filter
  • OLED Display

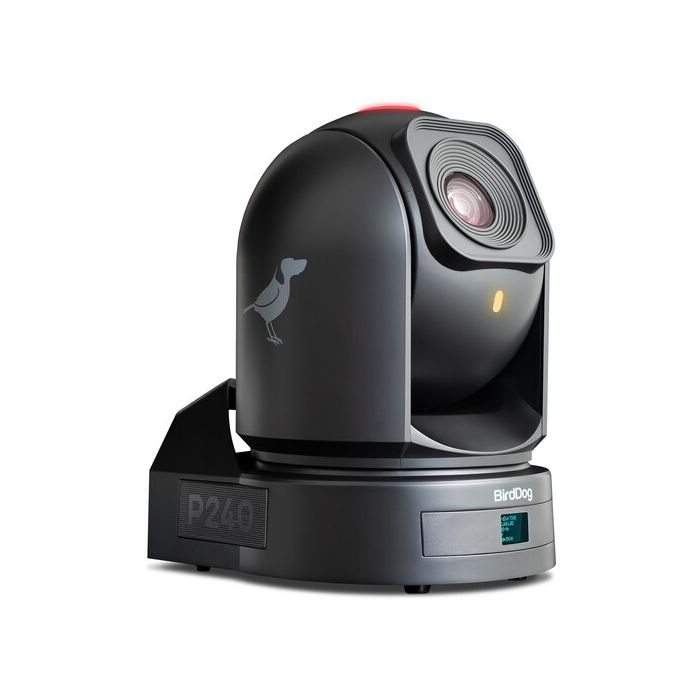

main product photo

The black P240 40X Full NDI PTZ Camera with HDMI/3G-SDI from BirdDog is a Full NDI PTZ camera that offers increased light sensitivity via its Sony Exmor 1/2.5" CMOS 8.5MP sensor while capturing sharp and vivid images in resolutions up to 1080p60. Output options include NDI, HDMI, and 3G-SDI as well as balanced XLR audio via the included breakout cable, which has a locking connector for added reliability and also has an XLR input option that provides phantom power. The camera features an integrated ND filter.

The IP output delivers Full NDI and other flavors of NDI, with optional BirdDog Cloud 3.0 integration unlocking access from globally connected, remote production locations. The IP address is visible via the integrated OLED display, which also displays the device name, stream name, resolution, and frame rate being used. The P240 supports Full NDI 5.5 for optimal compatibility across all NDI ecosystems.

NDI Video Scopes

The P240 can generate scopes to send out as NDI, NDI Proxy, or both. This allows for monitoring scopes on the NDI Proxy while sending a clean main NDI feed simultaneously. Choose from histogram, waveform, vectorscope, or RGB parade and the position on the NDI stream.

360° Mohawk Tally

The innovative Mohawk tally gives a full 360° view, so you'll never be caught out wondering which camera you need to be talking to.

NDI Genlock

Select an NDI source to be the timing master to provide more predictable timing in multi-camera environments.

FreeD for Free

FreeD is a protocol for sending PTZ positioning data to AR/VR systems including Unreal Engine, Brainstorm, Vizrt's Viz Virtual Studio, and it's all built right into the BirdUI.

Free Software Tools

Central Lite
  • Team up Central Lite with any NDI source, including all BirdDog hardware capable of creating NDI sources, and you can now drive your NDI streams to any BirdDog Studio NDI or Mini to decode NDI back to SDI or HDMI.

Cam Control

  • Cam Control allows easy access to all settings of all the BirdDog cameras on your network. Get the look you want on the full-screen output monitor and then copy across multiple cameras to color match in seconds.

Comms Lite

  • Comms Lite is your free audio intercom solution with support for four BirdDog devices, plus a director
Globally Connected, No Computers Needed

By adding an optional BirdDog Cloud subscription, you can now access the PTZ cameras and all features from anywhere in the world. No computers needed on the camera side.

Wide Format Support

Along with Full NDI, the P240 supports NDI|HX2, NDI|HX3, SRT, and h.264 for low-bandwidth requirements
Write Your Own Review
You're reviewing:BirdDog P240 40X Full NDI PTZ Camera with HDMI/3G-SDI (Black)
Your Rating

Items Included:

  • BirdDog P240 40X Full NDI PTZ Camera with HDMI/3G-SDI (Black)
  • Audio Breakout Cable
  • Limited 2-Year Warranty
BirdDog P240 - Catalogue (Size: 10.8 MB)
More Information
SPECS
Imaging Sensor Type 1/2.5"-Type CMOS Sensor
  Sensor Resolution Effective: 8.5 Megapixel
  IR Cut Filter Yes
  Built-In ND Filter Mechanical Filter Wheel with Clear ND Filters
  Focus Control Autofocus
Manual Focus
Exposure Control Shutter Type Electronic Rolling Shutter
  Shutter Speed 1 to 10,000 Seconds
  Signal-to-Noise Ratio 50 dB
  Minimum Illumination 0.4 Lux
  Flip / Mirror Support Image Flip, Mirror (Vertical)
Lens Focal Length 4.4 to 88.4mm
  Optical Zoom Ratio 40x
  Field of View Horizontal: 70.2 to 4.1°
  Maximum Aperture f/2 to 3.8
Video Capture External Recording Modes SDI/BNC / HDMI / RJ45
1920 x 1080 at 23.98/25/29.97/50/59.94 fps
1920 x 1080
1280 x 720 at 50/59.94 fps
  Embedded Audio HDMI/NDI
  Audio Recording Yes
  IP Streaming H.264, NDI|HX, RTMP, RTSP, SRT
1920 x 1080 at 23.98p, 25p, 29.97p, 50p, 59.94p
Control Presets 128 via IP, RS-232, VISCA, Pelco-D
  Move Speed Pan: 0.05 to 100°/sec
Tilt: 0.05 to 50°/sec
  Movement Range Pan: 175°
Tilt: -30 to 90°
  Tally Light Yes
  Supported Control Protocols IP
NDI
Pelco-D
RS-232
RS-422
VISCA
Interface Video I/O 1 x BNC (3G-SDI) Output
1 x HDMI Output
  Audio I/O 1 x LEMO 10-Pin Mic/Line (+48 V Phantom Power) Input/Output
1 x 1/8" / 3.5 mm TRS Stereo Input
1 x 1/8" / 3.5 mm TRS Stereo Output
  Other I/O 1 x RJ45 (NDI) Control/Video Input/Output
1 x RJ45 (RS-232) Input
1 x RJ45 (RS-422) Input
1 x USB-A (USB 2.0)
Power PoE Support PoE+ 802.3at
  Power I/O 1 x Barrel (12VDC) Input
  Power Consumption 22.5 W
Environmental Operating Temperature 14 to 104°F / -10 to 40°C
  Operating Humidity 80%
General Dimensions (W x H x D) 9.1 x 7.8 x 6.4" / 231 x 199 x 163 mm
  Weight 5.280 lb / 2.395 kg
Packaging Info Package Weight 8.88 lb
  Box Dimensions (LxWxH) 14.5 x 10.9 x 8.6"
