BirdDog X5 Ultra PTZ Camera with 20x Optical Zoom (Black)

BirdDog
SKU
BDX5UB
image-icon
Request for Price
Add to Compare
Email

Product Highlights:

  • Capture up to UHD 4K60 Resolution Video
  • 20x Zoom, AI Auto Tracking/Framing
  • Built-In NDI|HX3 Support
  • 12G-SDI, HDMI 2.0 & USB/UVC Outputs
  • 2 x Integrated 2.93" E-Ink Displays
  • Built-In Halo Tally, PoE+ Support
  • Color Matrix, High Quality in Low-Light
  • Transmit Directly to Zoom/Teams
  • Gigabit Ethernet

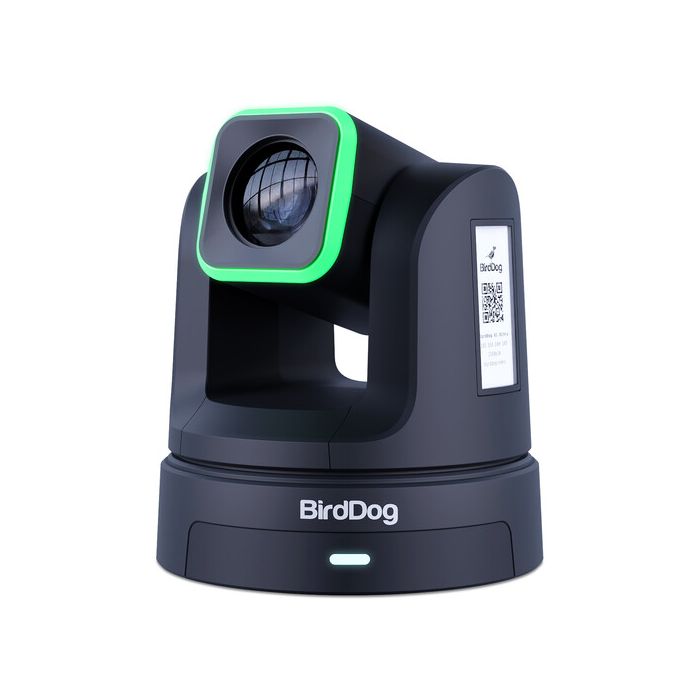

main product photo

Update your production to 4K and keep your subjects in frame with AI auto framing using this black BirdDog X5 Ultra PTZ Camera with 20x Optical Zoom. The X5 Ultra updates the X1 with 12G-SDI and HDMI 2.0 outputs for up to UHD 4K60 capture, Gigabit Ethernet, and PoE+ support as well as two 2.983" E-Ink displays. With a powerful 20x zoom and color matrix, the versatile X5 Ultra offers high-quality, low-light performance and support for NDI|HX3.

Integrated NDI Decoder

The camera features an NDI|HX decoder designed specifically for monitoring, return feeds, or teleprompter usage. All the connectivity is contained into a single cable, simplifying how you interface with your equipment.

AI Tracking

Keep your subject in focus with AI tracking technology, intelligently following your subject's movements in real-time. Whether you're orchestrating a live event, capturing spontaneous moments in a hybrid environment, or hunting down sports action, AI tracking helps you get well framed.

Connectivity Options

The X5 Ultra features 12G-SDI output, dual HDMI outputs, and support for multiple network formats, including NDI|HX3, SRT, RTMP and RTSP, and webcam connectivity over USB-C with UVC 1.1 support.

4K60 NDI|HX3 Integration

The X5 Ultra delivers superior network performance via integrated NDI|HX3. Reduce network impact while maintaining high-quality imagery across all video resolutions. NDI|HX2 is also supported in alternate resolutions.

Built-In Halo Tally Light

A visible and effective halo tally system is prominent with a large, daylight visible border, and an interchangeable, illuminated numbering system. Your cast and crew will always know where to look to keep your audience engaged and your look polished.

E-Ink Label

The dual, always-on e-ink label displays on the X5 Ultra allow easy access to controls and customizable logos to complement your brand image. This cool feature ensures that your setup is clear and that each camera is easily identifiable, even when the power is off.

BirdUI Advanced Features

BirdUI gives you access to every function of your X5 Ultra with an intuitive interface. As a browser-based application, it can be accessed from anywhere on the same network as the X5 Ultra. There is also a dashboard for monitoring the camera and light/dark modes to suit your production environment.
Write Your Own Review
You're reviewing:BirdDog X5 Ultra PTZ Camera with 20x Optical Zoom (Black)
Your Rating

Items Included:

  • BirdDog X5 Ultra PTZ Camera with 20x Optical Zoom (Black)
  • IR Remote Controller
  • 12 VDC Power Supply
  • USB-C Cable (5.9')
  • Limited 5-Year Manufacturer Warranty
User Manual - BirdDog X5 Ultra PTZ Camera (Size: 508.2 KB)
More Information
SPECS
Image Sensor
1/2.8"-Type CMOS
Sensor Resolution
Effective: 8.46 Megapixel (3840 x 2160)
Shutter Speed
1/1 to 1/10000 Second
Optical Zoom Ratio
20x
External Recording Modes
HDMI / RJ45 / USB
UHD 4K (3840 x 2160) at 25/29.97/30.00/50/59.94/60.00 fps
HD (1920 x 1080p) at 25/29.97/30.00/50/59.94/60.00 fps
1280 x 720 at 50/59.94/60.00 fps
Broadcast Output
NTSC/PAL
IP Streaming
H.264, H.265, NDI|HX3, RTMP, RTSP, SRT
1920 x 1080 at 25p, 29.97p, 30p, 50p, 59.94p, 60p
1280 x 720 at 50p, 59.94p, 60p
Supported Control Protocols
IP
NDI
RS-232
RS-422
VISCA
PoE Support
PoE+ 802.3at
Mounting
1x 1/4"-20 Female for Bracket/Tripod
Imaging
Image Sensor
1/2.8"-Type CMOS
Sensor Resolution
Effective: 8.46 Megapixel (3840 x 2160)
IR Cut Filter
No
Focus Control
Autofocus
Manual Focus
Exposure Control
Shutter Speed
1/1 to 1/10000 Second
Precise Scan Rate Control
No
Signal-to-Noise Ratio
50 dB
Lens
Focal Length
5.4 to 104mm
Optical Zoom Ratio
20x
Field of View
Horizontal: 56.6 to 3°
Vertical: 32.5 to 1.7°
Diagonal: 64.7 to 3.5°
Maximum Aperture
f/1.6 to 3.6
Video Capture
External Recording Modes
HDMI / RJ45 / USB
UHD 4K (3840 x 2160) at 25/29.97/30.00/50/59.94/60.00 fps
HD (1920 x 1080p) at 25/29.97/30.00/50/59.94/60.00 fps
1280 x 720 at 50/59.94/60.00 fps
Embedded Audio
HDMI/LAN (RJ45)/SDI
Broadcast Output
NTSC/PAL
IP Streaming
H.264, H.265, NDI|HX3, RTMP, RTSP, SRT
1920 x 1080 at 25p, 29.97p, 30p, 50p, 59.94p, 60p
1280 x 720 at 50p, 59.94p, 60p
Control
Presets
128
Pan/Tilt
Pan: 340° (-170 to 170°)
Tilt: 120° (-30 to 90°)
Tally Light
Yes
Supported Control Protocols
IP
NDI
RS-232
RS-422
VISCA
Interface
Video I/O
1x HDMI 2.0 Output
1x HDMI 1.4 Output
1x BNC (12G-SDI) Output
1x USB-C 3.0 / 3.1/3.2 Gen 1 Output
1x RJ45 (NDI) Input/Output
Audio I/O
1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input
Other I/O
1x RJ45 (RS-232, RS-422, VISCA)
Built-In Speaker
No
Power
PoE Support
PoE+ 802.3at
Power I/O
1x Barrel (12VDC up to 2 A) Input
Power Consumption
Device: 18 W
Environmental
Operating Conditions
32 to 104°F / 0 to 40°C at 20 to 80% Humidity
General
Mounting
1x 1/4"-20 Female for Bracket/Tripod
Dimensions (W x H x D)
7.9 x 7.3 x 6.8" / 200.9 x 185.7 x 171.9 mm
Weight
5.09 lb / 2.31 kg (Body Only)
Packaging Info
Package Weight
8.28 lb
Box Dimensions (LxWxH)
11.5 x 10.9 x 9.7"
