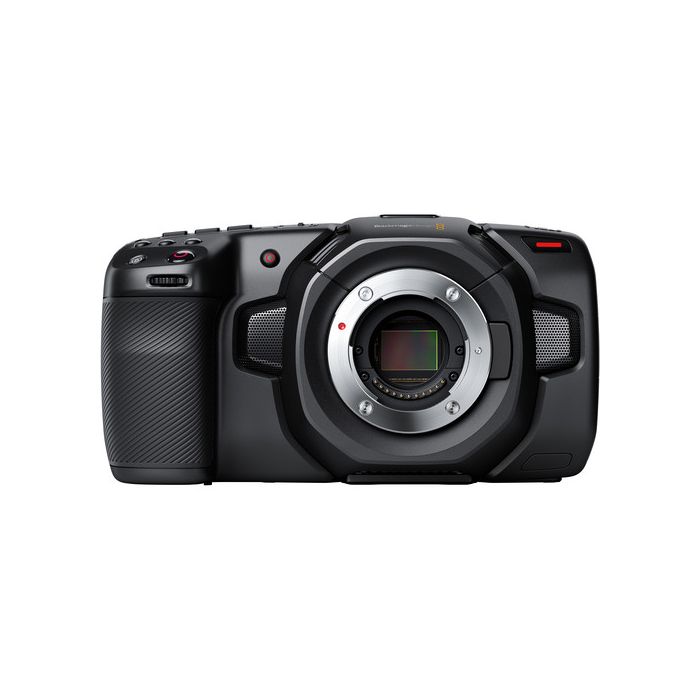

Blackmagic Design Pocket Cinema Camera 4K

SKU
Pocket Cinema Camera 4K
Request for Price
  • 4/3" Sized HDR Sensor
  • Record DCI 4K 4096 x 2160 up to 60 fps
  • Dual Native ISO to 25,600
  • 5" Touchscreen Display
  • Active Micro Four Thirds Lens Mount
  • Record up to 120 fps Windowed HD
  • CFast 2.0 & SD/UHS-II Card Slots
  • External Recording via USB Type-C
  • 13-Stop Dynamic Range, 3D LUT Support
  • Includes DaVinci Resolve Studio License

The Blackmagic Design Pocket Cinema Camera 4K features a 4/3" sensor for capturing up to 4096 x 2160 DCI 4K images at rates up to 60 fps in a variety of codecs including CinemaDNG Raw/Raw 3:1/Raw 4:1, and various ProRes 422 options. Slow-motion rates up to 120 fps are available in cropped Full HD. Its Micro Four Thirds lens mount accommodates the original, lightweight Pocket Cinema Camera lenses, and can be used with PL, C, EF, and other lenses with the use of separately available adapters. A dual-native ISO up to 25,600 is featured for low-light capture, and 13 stops of dynamic range provide rich HDR images.

Record using the internal CFast 2.0 and SD/UHS-II card slots, or employ the USB-C output for capturing longer clips to an external drive. The Pocket Cinema Camera 4K's 5" touchscreen LCD display reduces the need for an external, onboard monitor, while a full-sized HDMI port enables you to output a signal to a larger display. The menu and interface are the same as the ones found on the URSA Mini camera, and 3D LUTs can be applied for monitoring or for baking in your look when you're ready to commit.

Audio features include a mini-XLR input with phantom power for pro-style mics, a 3.5mm jack, and an internal stereo mic. Additional features include the same Blackmagic OS as the URSA Mini, and Bluetooth remote control. A license key for DaVinci Resolve Studio is included for versatile post-production control. The Pocket Cinema Camera 4K's carbon fiber polycarbonate build provides lightweight strength and durability, and power options include running off a Canon LP-E6 type battery or the included power supply.

4/3" Image Sensor / Dual Native ISO
The Pocket Cinema Camera 4K uses a 4/3" sensor, 13 stops of dynamic range, and a dual native ISO up to 25,600 to capture rich images at resolutions up to DCI 4K.
Active Micro Four Thirds Lens Mount
Use lightweight, electronically-controlled MFT lenses, or use separately available adapters to expand your lens choices to include PL, C, or EF-mount lenses.
CinemaDNG Raw and ProRes Options
Choose from CinemaDNG Raw and ProRes 422 files options depending on your project's needs.
Shooting Resolutions
4096 x 2160 (DCI 4K), 3840 x 2160 (Ultra HD 4K), 1920 x 1080 (HD)
5" Touchscreen Display
A large 5" touchscreen display reduces the need for an external on-board monitor, while a full-sized HDMI port enables you to output a signal to a larger display on your video village.
CFast 2.0, SD/UHS-II, and USB Type-C Capture
Internally record to CFast 2.0 or SD/UHS-II card slots, or capture longer clips using the USB-C output to an external drive.
Flexible Power Options
The Pocket Cinema Camera 4K can be powered using a rechargeable Canon LP-E6 type battery or the included power supply.
DaVinci Resolve Studio
An activation key for DaVinci Resolve Studio is included with the camera.
Write Your Own Review
You're reviewing:Blackmagic Design Pocket Cinema Camera 4K
Your Rating

Items Included:

  • Blackmagic Design Pocket Cinema Camera 4K
  • DaVinci Resolve Studio Activation Key
  • Canon LP-E6 Type Battery
  • 30W Power Supply with International Adapters
  • Dust Cap
  • Limited 1-Year Warrant

Pocket Cinema Camera 4K - Specification

More Information
Image Sensor
Image Sensor Size:18.96 x 10 mm (4/3")
Sensor Type:CMOS
Shutter Type:Rolling Shutter
ISO:100 to 25,600 (Expanded)
Advertised Dynamic Range:13 Stops
Camera
Lens Mount:Micro Four Thirds
Lens Communication:Yes
Built-In ND Filter:None
Built-In Microphone Type:Stereo
Recording Media:1 x CFast 2.0 Card Slot
:1 x SDXC UHS-II Card Slot
Internal Recording
Raw Recording:Raw:
4096 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps (21 to 203 MB/s)
4096 x 1712 at 23.98/24/25/29.97/30/50/59.94/60/75 fps
2880 x 2160 at 23.98/24/25/29.97/30/50/59.94/60/80 fps
2688 x 1512 at 23.98/24/25/29.97/30/50/59.94/60/75/120 fps
Recording Modes:ProRes 422HQ:
4096 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps (117.88 MB/s)
3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps (110 Mb/s)
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/120 fps (27.5 MB/s)
ProRes 422:
4096 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps (78.63 MB/s)
3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps (73.6 MB/s)
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/120 fps (18.4 MB/s)
ProRes 422LT:
4096 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (54.63 MB/s)
3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps (51 MB/s)
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/120 fps (12.75 MB/s)
ProRes 422 Proxy:
4096 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps (24.25 MB/s)
3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps (22.4 MB/s)
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/120 fps (5.6 MB/s)
External Recording
Video Output:4:2:2 10-Bit via HDMI:
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
Raw Output:USB:
4096 x 2160 12-Bit at 23.98/24/25/29.97/30/50/59.94/60 fps
3840 x 2160 12-Bit at 23.98/24/25/29.97/30/50/59.94/60 fps
1920 x 1080 12-Bit at 23.98/24/25/29.97/30/50/59.94/60 fps
Interfaces
Video Connectors:1 x HDMI Output
Audio Connectors:1 x Mini XLR Mic/Line Level (+48 V Phantom Power) Input
1 x 1/8" / 3.5 mm Stereo Mic/Line Level Input
1 x 1/8" / 3.5 mm Stereo Headphone Output
Other I/O:1 x USB Type-C Video Output
1 x 3.5 mm Timecode Input (Shared with 3.5 mm Mic/Line input)
Wireless Interfaces:Bluetooth Control
Display
Display Type:LCD
Screen Size:5"
Touchscreen:Yes
Screen Resolution:1920 x 1080
EVF
EVF:Optional, Not Included
Power
Battery Type:Canon LP-E6
Power Connectors:1 x Weipu SF610/S2 Input
Environmental
Operating Temperature:32 to 104°F / 0 to 40°C
Storage Temperature:-4 to 113°F / -20 to 45°C
Operating Humidity:0 to 90%
General
Accessory Mount:1 x 1/4"-20 Female
Tripod Mounting Thread:1/4"-20 Female
Material of Construction:Carbon Fiber
Dimensions:7 x 3.8 x 3.4" / 177.8 x 96.52 x 86.36 mm
Weight:1.5 lb / 680.38 g
