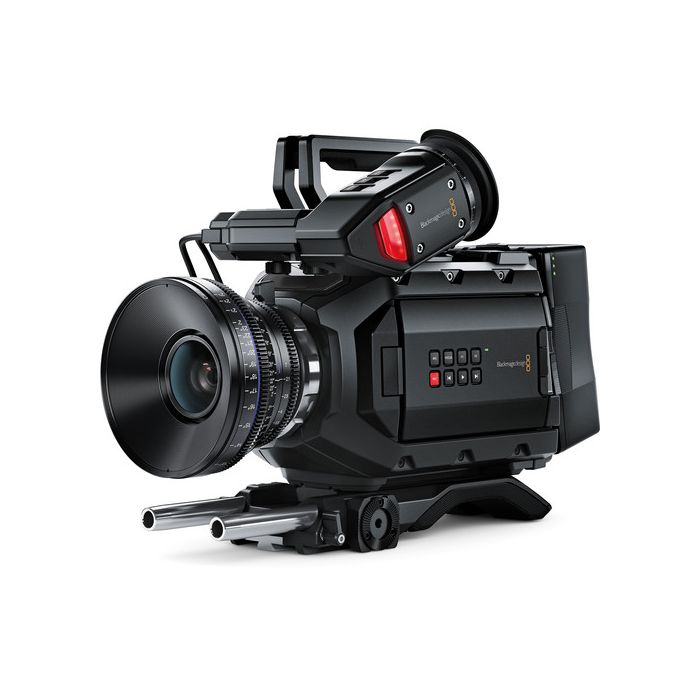

Blackmagic Design URSA Mini 4K EF

SKU
URSA Mini 4K EF
Request for Price
Product Highlights:
  • Super-35mm CMOS Sensor
  • 4000 x 2160 Video up to 60p
  • Compressed & Uncompressed Raw Recording
  • Ready-to-Edit ProRes 444 + 422 Recording
  • Dual CFast 2.0 Memory Card Slots
  • 12G-SDI Output, Timecode & REF Input
  • 1080p Flip-Out Screen
  • Touchscreen Interface
  • 2 x XLR Audio Inputs with Phantom Power
  • Magnesium Alloy Body

Now in a smaller, more handheld-friendly form factor, the URSA Mini 4K Digital Cinema Camera from Blackmagic Design can record cinematic images with its Super-35mm 4K, a global-shutter sensor with 12 stops of dynamic range. The ergonomic body design is balanced and can be used for many different styles of filmmaking. The EF-Mount is compatible with a plethora of popular lenses, opening different aesthetic options. A rosette on the side of the camera accepts the included side handle, which can control Start/stop via a LANC connection.

To produce cinematic images, the URSA Mini can record raw sensor data in the CinemaDNG format onto CFast 2.0 memory cards at up to 60 fps. The raw files preserve the full dynamic range and color tonality output from the sensor, so you can have greater control over the look in post-production. However, data-heavy uncompressed raw files aren't always easy to deal with on set, so in addition to uncompressed raw recording, the 4K URSA Mini provides compressed raw recording at a 3:1 compression ratio to save space while retaining post-production flexibility.

The URSA Mini also records UHD 4K (3840 x 2160) and 1080p video using ready-to-edit ProRes files in many different flavors within the 444 and 422 chroma subsampling variations, depending on your workflow. Starting at the high end, UHD footage can be recorded in ProRes 444 XQ at a rate of 312.5 MB/s all the way down to 1080p in a ProRes 422 Proxy file coming in at a relatively paltry 5.6 MB/s data rate. Since the camera accepts dual CFast cards, you can record for long periods of time by having the camera switch cards when one is full.

Power for the URSA Mini can be supplied via a 4-pin XLR jack at the rear of the camera. With an optional plate, the URSA will accept professional V-Mount or Gold Mount batteries on the back. Once connected to power, the URSA can even distribute power through a second 4-pin XLR jack.

URSA Mini 4K EF - Specification

More Information
Image Sensor
Image Sensor Size:25.34 x 14.25 mm (Super35)
Sensor Resolution:Effective: 4608 x 2592
Advertised Dynamic Range:15 Stops
Lens Communication:Yes
Built-In ND Filter:Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters
Recording Media:2 x CFast 2.0 Card Slots
:2 x SDXC UHS-II Card Slots
:4608 x 2592 at 23.98/24/25/29.97/30/50/59.94/60/120 fps
:4608 x 1920 at 23.98/24/25/29.97/30/50/59.94/60/120 fps
:4096 x 2304 at 23.98/24/25/29.97/30/50/59.94/60/120 fps
:3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60/120/150 fps
:3072 x 2560 at 23.98/24/25/29.97/30/59.94/60/120/150 fps
:2048 x 1152 at 23.98/24/25/29.97/30/50/59.94/60/120/150 fps
:2048 x 1080 at 23.98/24/25/29.97/30/50/59.94/60/120/150 fps
:1920 x 1080 at 23.98/24/29.97/30/50/59.94/60/300 fps
Recording Modes:ProRes 4444XQ 4:4:4 12-Bit:
:3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60/120 fps (312.5 MB/s)
:1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/120/240 fps (62.5 MB/s)
:ProRes 422HQ 4:2:2 10-Bit:
:4608 x 2592p at 23.98/24/25/29.97/30/50/59.94/60/80 fps
:4608 x 1920p at 23.98/24/25/29.97/30/60/80 fps
:4096 x 2304p at 23.98/24/25/29.97/30/50/59.94/60/80 fps
:4096 x 2160p at 23.98/24/25/29.97/30/50/59.94/60/80 fps
:3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60/120 fps (110 MB/s)
:3072 x 2560p at 23.98/24/25/29.97/30/50/59.94/60/80/120 fps
:2048 x 1152p at 23.98/24/25/29.97/30/50/59.94/60/80/120 fps
:2048 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/80/120 fps
:1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/120/240 fps (27.5 MB/s)
:4096 x 2592 at 60 fps
:3840 x 2160 12-Bit at 60 fps
:1920 x 1080 12-Bit at 30/60 fps
:2 x BNC (12G-SDI) Output
Audio Connectors:2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Output
:1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Input/Output
Other I/O:1 x USB Type-C Data
:1 x BNC Timecode Input
:1 x BNC Reference Input
:2 x 2.5 mm LANC Control Input
Screen Size:4"
Touchscreen:Yes
Power Connectors:1 x 4-Pin XLR Input
:1 x 12-Pin Molex Input/Output
:1 x 4-Pin XLR (12 VDC) Output
Storage Temperature:-4 to 113°F / -20 to 45°C
Operating Humidity:0 to 90%
:1 x Battery Plate Mount
Dimensions:8.2 x 8 x 5.8" / 21 x 20.1 x 14.7 cm
Weight:5.1 lb / 2.3 kg
Camera
Lens Mount:Canon EF
Internal Recording
Raw Recording:Raw 12-Bit:
External Recording
Raw Output:USB:
Interfaces
Video Connectors:1 x BNC (12G-SDI) Input
Display
Display Type:LCD
Power
Battery Type:None
Environmental
Operating Temperature:32 to 104°F / 0 to 40°C
General
Accessory Mount:1 x 1/4"-20 Female
