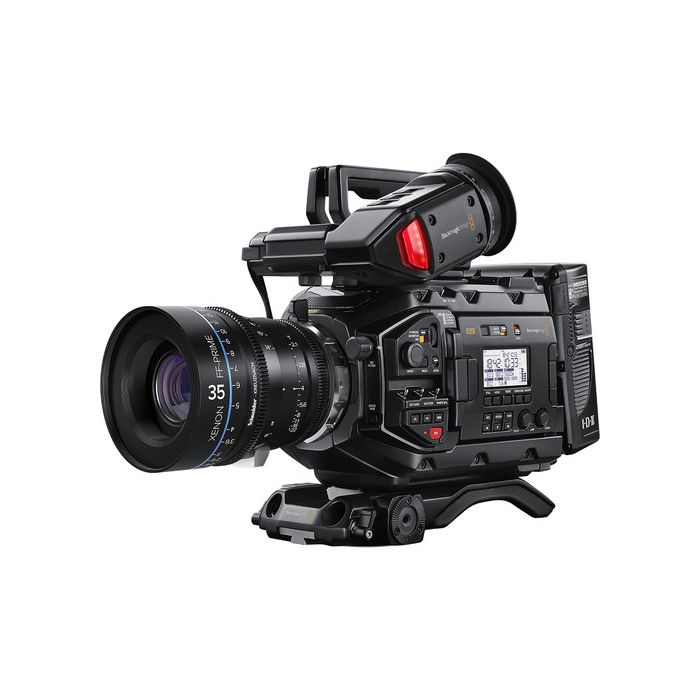

Blackmagic Design URSA Mini Pro 4.6K G2 Digital Cinema Camera

Request for Price
SKU
CINEURSAMUPRO46KG2

Product Highlights:

  • 4.6K Super 35 HDR CMOS Sensor
  • 4.6K up to 120 fps, 300 fps at 1080p
  • 15 Stops of Dynamic Range at 3200 ISO
  • USB-C Expansion Port for External Disks

Upping the electronics and recording capabilities of its Mini Pro predecessor, the Blackmagic Design's URSA Mini Pro 4.6K G2 Digital Cinema Camera brings expanded control set and even more functionality. The G2 introduces an updated Super 35 4.6K sensor featuring 15 stops of dynamic range at 3200 ISO, high frame rate recording up to 300 fps, and additional recording functionality.

First, the addition of external camera controls allows menus to be accessed to change exposure settings, activate slow/fast motion, or engage focus assist or other functions. The exterior of the camera also gains a monochrome LCD panel which displays essential shooting data at a glance. Another welcome pro feature is the built-in ND (neutral density) filter wheel. The four-position wheel switches between two, four, and six stops of neutral density, plus a clear filter for no exposure reduction.

Behind the display, two SD card slots beside the CFast 2.0 slots enable more affordable media to be used for less intensive recording formats. The G2 introduces a USB-C expansion port so you can record directly to external drives. The default electronic EF lens mount is user-interchangeable and adjustable to ensure proper flange focal distance.

At the heart of the camera is Blackmagic Design's acclaimed Super 35mm 4.6K sensor block, known for its ability to capture cinematic images with subtle gradients and large dynamic range rated at 15 stops. The G2 can now capture Blackmagic RAW footage in film and extended modes which makes it more versatile to meet your production needs. Probably the most impressive update with the G2 is the ability to capture 4.6K footage at 120 fps, 4K DCI at 150 fps, or even 1080p footage at 300 fps which is well suited for fast-action shooting.

Like the URSA Mini, the URSA Mini Pro G2 can record high-resolution raw sensor data in Blackmagic RAW format onto CFast 2.0 or SD memory cards at up to 60 fps. The raw files preserve the full dynamic range and color tonality output from the sensor, so you can have greater control over the look in post-production. However, data-heavy uncompressed raw files aren't always easy to deal with on set so in addition to uncompressed raw recording, the URSA Mini Pro provides compressed raw recording at 3:1 and 4:1 compression ratios to save space while retaining post-production flexibility.

CINEURSAMUPRO46KG2 - Specification

Specs
Image Sensor
Image Sensor Size:25.34 x 14.25 mm (Super35)
Sensor Resolution:Effective: 4608 x 2592
Advertised Dynamic Range:15 Stops
Camera
Lens Mount:Canon EF
Lens Communication:Yes
Built-In ND Filter:Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters
Recording Media:2 x CFast 2.0 Card Slots
:2 x SDXC UHS-II Card Slots
Internal Recording
Raw Recording:Raw 12-Bit:
4608 x 2592 at 23.98/24/25/29.97/30/50/59.94/60/120 fps
4608 x 1920 at 23.98/24/25/29.97/30/50/59.94/60/120 fps
4096 x 2304 at 23.98/24/25/29.97/30/50/59.94/60/120 fps
3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60/120/150 fps
3072 x 2560 at 23.98/24/25/29.97/30/59.94/60/120/150 fps
2048 x 1152 at 23.98/24/25/29.97/30/50/59.94/60/120/150 fps
2048 x 1080 at 23.98/24/25/29.97/30/50/59.94/60/120/150 fps
1920 x 1080 at 23.98/24/29.97/30/50/59.94/60/300 fps
Recording Modes:ProRes 4444XQ 4:4:4 12-Bit:
3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60/120 fps (312.5 MB/s)
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/120/240 fps (62.5 MB/s)
ProRes 422HQ 4:2:2 10-Bit:
4608 x 2592p at 23.98/24/25/29.97/30/50/59.94/60/80 fps
4608 x 1920p at 23.98/24/25/29.97/30/60/80 fps
4096 x 2304p at 23.98/24/25/29.97/30/50/59.94/60/80 fps
4096 x 2160p at 23.98/24/25/29.97/30/50/59.94/60/80 fps
3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60/120 fps (110 MB/s)
3072 x 2560p at 23.98/24/25/29.97/30/50/59.94/60/80/120 fps
2048 x 1152p at 23.98/24/25/29.97/30/50/59.94/60/80/120 fps
2048 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/80/120 fps
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/120/240 fps (27.5 MB/s)
External Recording
Raw Output:USB:
4096 x 2592 at 60 fps
3840 x 2160 12-Bit at 60 fps
1920 x 1080 12-Bit at 30/60 fps
Interfaces
Video Connectors:1 x BNC (12G-SDI) Input
2 x BNC (12G-SDI) Output
Audio Connectors:2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Output
1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Input/Output
Other I/O:1 x USB Type-C Data
1 x BNC Timecode Input
1 x BNC Reference Input
2 x 2.5 mm LANC Control Input
Display
Display Type:LCD
Screen Size:4"
Touchscreen:Yes
Power
Battery Type:None
Power Connectors:1 x 4-Pin XLR Input
1 x 12-Pin Molex Input/Output
1 x 4-Pin XLR (12 VDC) Output
Environmental
Operating Temperature:32 to 104°F / 0 to 40°C
Storage Temperature:-4 to 113°F / -20 to 45°C
Operating Humidity:0 to 90%
General
Accessory Mount:1 x 1/4"-20 Female
1 x Battery Plate Mount
Dimensions:8.2 x 8 x 5.8" / 21 x 20.1 x 14.7 cm
Weight:5.1 lb / 2.3 kg
    • Blackmagic Design URSA Mini Pro 4.6K G2 Digital Cinema Camera
      • Turret Dust Cap
        • Power Supply
          • DaVinci Resolve Full-Version License
