Broadcast series wireless transmitter with AZM-T(H)
-
188 Selectable DTV compliant UHF Freq
-
Digital LCD Display w/ Multi-function Readout
-
Attached metal belt clip
-
Hirose microphone connection
-
Powered by 2 “AA” Batteries (not included)
-
Power & audio on/off switches
-
Internal output level adjustment
-
Transmission Frequencies: 188 User Selectable, UHF (638.125 - 661.875 MHz)
-
Output Power: 25mW
-
Frequency Response: 50Hz-15kHz
-
Antenna: 1/4 Wavelength (internal)
-
Max Modulation Sensitivity: -4dBm
-
Noise Reduction: Compander (THAT)
-
MIC Level / Imped.: -56dBm / 2.2kΩ (± 5kHz Deviation)
-
Power Requirements: 3V DC (2 “AA” Alkaline) @ less than 150mA
-
Dimensions: 2.48 (W) x 3.86 (H) x 1.12 (D) inches
-
63 (W) x 98 (H) x 28.5 (D) mm
-
Weight: w/Battery 6.35 ounces ~ 180g

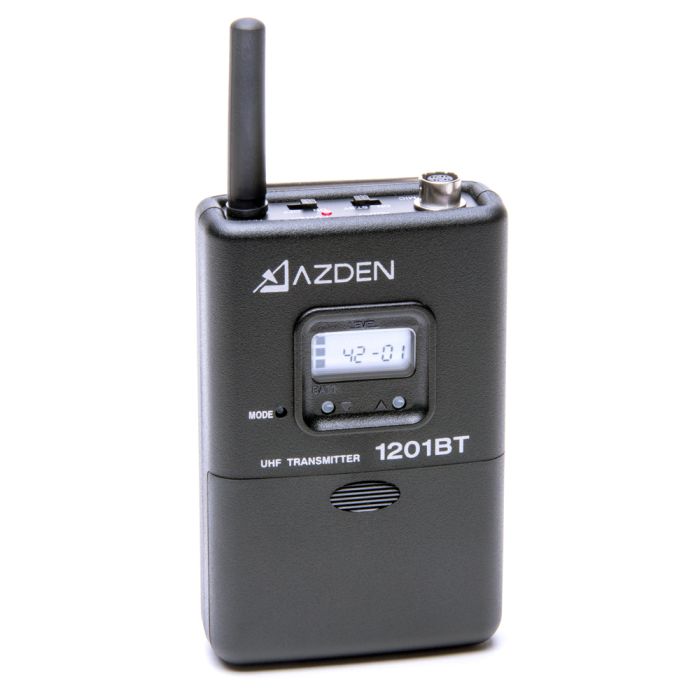

The Azden 1201BT Body-Pack Transmitter is designed for use with the 1201 Series receivers. The 1201 Series also offers 188 user selectable, DTV compliant frequencies. A Hirose connection accommodates compatible lavalier microphones. There is a multi-function digital display, and rugged construction ensures reliable use outdoors, on the road, etc. The transmitter is powered via 2-AA alkaline batteries for up to 8-hours.
