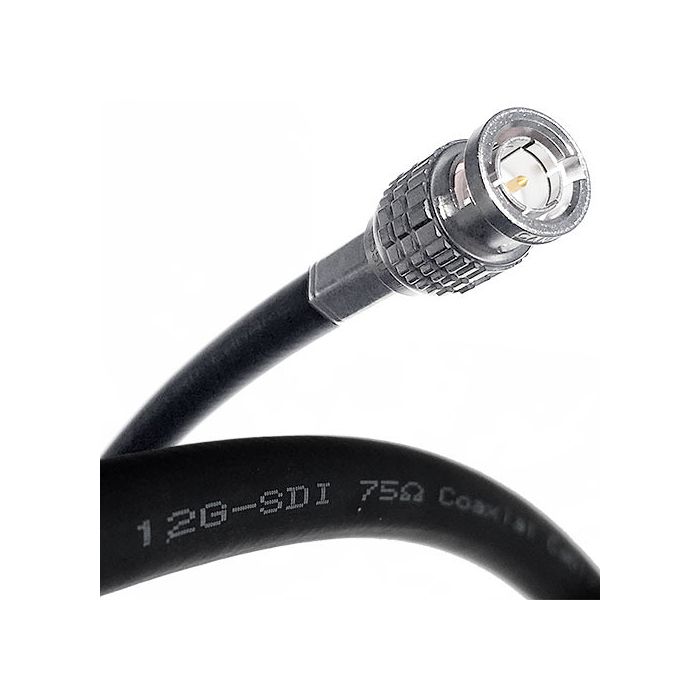

Canare 12G-SDI UHD 4K Single-Channel BNC Cable (15')

SKU
CAL55CUHD015
Request for Price



Key Features

  • Connect 12G-SDI Cameras and Equipment
  • Nickel Body 75-Ohm Connectors
  • Gold-Plated Contacts
  • Highly Foamed PE Insulation

Canare's 12G-SDI UHD 4K Single-Channel BNC Cable, 15' long, is designed for connecting 12G-SDI rated cameras and equipment and carrying a UHD 4K signal. The cable features nickel body 75-ohm connectors with gold-plated contacts and highly foamed PE insulation for optimal attenuation. It's suitable for studios, mobile trucks, and installations among virtually all other applications.

Key Features
  • 12G-SDI / UHD 4K coaxial cable
  • Canare 12G 75-ohm nickel body BNC connectors with gold-plated contacts
  • Solid annealed copper 16 AWG center conductor
  • Highly foamed PE insulation
Write Your Own Review
You're reviewing:Canare 12G-SDI UHD 4K Single-Channel BNC Cable (15')
Your Rating
  • Canare 12G-SDI UHD 4K Single-Channel BNC Cable (15')
More Information
SPECS
Connector 1
1x BNC
Connector 2
1x BNC
Cable Length
15' / 4.57 m
Conductor Material
Annealed Copper
Insulation Type
Polyethylene
Outer Diameter
0.303" / 7.7 mm
Shielding
91% Tinned-Annealed Copper (TAC) Braid
Wire Gauge
16 AWG
