Canare L-2T2S 200MBLK Twisted Pair Microphone Cable (656' / 200 m)

SKU

L-2T2S 200M BLK

Request for Price

Key Features

2-Conductor Cable
Braided Copper Shield
Rejects EMI & RFI

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

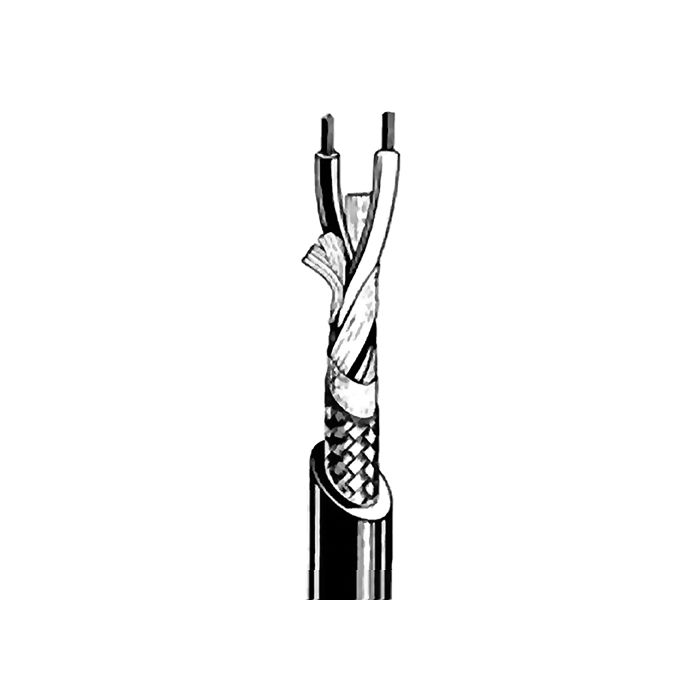

The Canare L-2T2S 200MBLK Twisted Pair Microphone Cable (656’ / 200 m) is a standard diameter 2-conductor microphone cable for general purpose audio applications. The high-density braided copper shield and 2 inner conductors, which are composed of 60 thin strands of copper wire, allow for maximum flexibility and reduced handling noise. The PVC outer jacket resists cracking and tearing even in sub-zero environments.

Braided copper shield

Flexible in extremely cold weather

Reduced handling noise

Black color cable

Reviews

Write Your Own Review

You're reviewing:Canare L-2T2S 200MBLK Twisted Pair Microphone Cable (656' / 200 m)

Your Rating

Rating

1 star 2 stars 3 stars 4 stars 5 stars

Nickname

Summary

Review

items Included

Canare L-2T2S 200MBLK Twisted Pair Microphone Cable (656' / 200 m)

Specification

More Information

SPECS

Applications	Microphones, portable applications, audio patch cords, and PA systems
Mechanical/Electrical
Outer Diameter	Nominal: 0.236" (6 mm)
Thickness	Jacket: 0.039" (1 mm) Insulator: 0.77" (19.7 mm)
Number of Conductors	2
Insulation	Type: IPE Note: Dielectric Strength: 500 VAC / per minute Insulation Resistance: 1000 MOhms per 3' (0.91 m)
Conductor D.C.R.	Less than 19.8 Ohms / 1000' (less than 6.5 Ohms / 100 m)
Shield D.C.R	Less than 9.4 Ohms / 1000' (less than 3.1 Ohms / 100 m)
Nominal Capacitance	Between Conductors: 22 pF / ft (70 pF / m) Between Conductors & Shield: 33 pF/ ft (106 pF / m)
Nominal Impedance	88 Ohms
Group Delay Time	1.83 ns / ft (6 ns / m)
Brittle Point	-56°F (-49°C)
Length	656' (200 m)
Weight	20 lb (9 kg)
