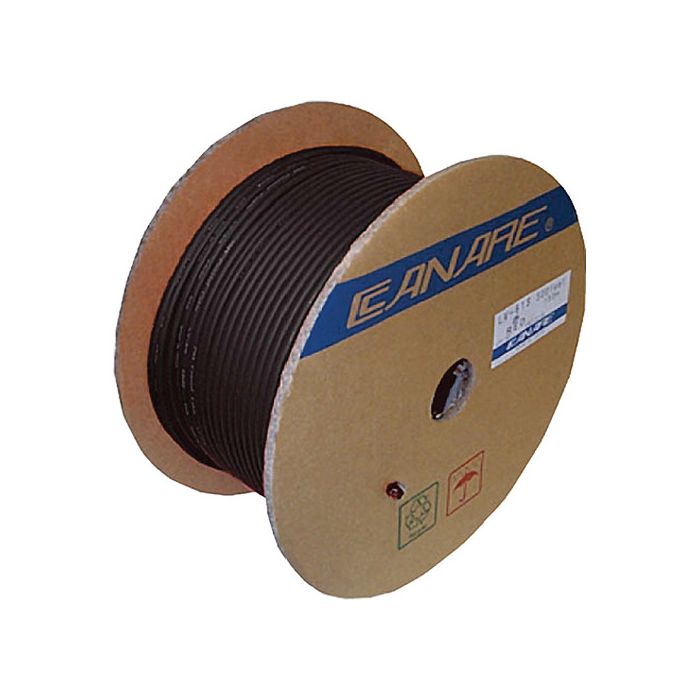

Canare L-4.5CHD Video Coaxial Cable (200', Black)

SKU

L-4.5CHD 200M BLK

Request for Price

Key Features

100% Sweep Tested
Supports SMPTE 259M, 292M & 424M
UL 1666 Riser Flame Test Conformant
Ideal for 3G-SDI / HD-SDI Distribution

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Styled in black, the L-4.5CHD Video Coaxial Cable from Canare is a 75-ohm precision digital video cable that measures 984.25'. It's designed for professional AV applications, meeting the needs of serial digital video transfers and adhering to HDTV standards. It supports SMPTE 259M, 292M, and 424M. The cable is suitable for 3G-SDI / HD-SDI distribution.

Highly foamed PE insulation for improved attenuation characteristics

Multi-layer insulation offers a different foaming ratio to each layer for increased strength

Tinned copper braid with aluminum foil for excellent shielding

L-2.5CHD is ideal for internal rack wiring

UL 1666 Riser flame test conformant

Ideal for HD-Serial digital video, satellite head ends, HDTV upgrades, broadband facilities, SMPTE 259M, 292M, and 424M format signal applications

Reviews

Write Your Own Review

You're reviewing:Canare L-4.5CHD Video Coaxial Cable (200', Black)

Your Rating

Rating

1 star 2 stars 3 stars 4 stars 5 stars

Nickname

Summary

Review

items Included

Canare L-4.5CHD Video Coaxial Cable (984.25', Black)

Specification

More Information

SPECS

Outer Diameter	Nominal: 0.27" / 7 mm Inner Conductor: 0.04" / 1.02 mm Insulation: 0.18" / 4.57 mm
Conductor	Inner Conductor Composition: 1/1.02A (18) Quantity/mm (AWG) Outer Conductor Shield Coverage and Composition (91% or More): 0.14TA mm, 6 Ends, 24 Carriers
Resistance	Inner Conductor: ≤23.3 Ohms/km Outer Conductor: ≤9.9 Ohms/km
Static Capacity	53 nF/km @ 1 kHz
Impedance	75 ±3 Ohms
Attenuation	17.4 dB/100 m at 750 MHz
Maximum Transmission Distance	Composite NTSC: 1807.74' / 551 m @ 143 Mb/s (SMPTE 259M) Composite PAL: 1653.54' / 504 m @ 177 Mb/s (ITU-R BT.601) Component (4:2:2): 1361.55' / 415 m @ 270 Mb/s (SMPTE 259M) Component (4:2:2) 16 x 9: 1184.38' / 361 m @ 360 Mb/s (SMPTE 259M) SDI: 961.28' / 293 m @ 540 Mb/s (SMPTE 344M) HD-SDI: 377.29' / 115 m @ 1.5 Gb/s (SMPTE 292M) HD 1080p: 259.18' / 79 m @ 3 Gb/s (SMPTE 424M)
Length	984.25' / 300 m
Weight	41 lb / 18.6 kg
