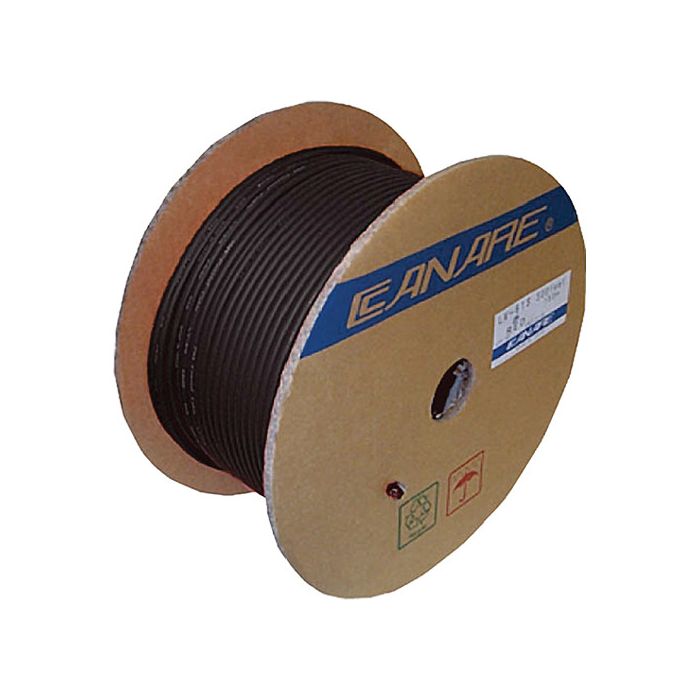

Canare L-4E6S Star Quad Microphone Cable

SKU

L-4E6S 100M BLK

Request for Price

Key Features

Spool of Cable 100' in Length
Standard Diameter, 21 AWG
Fits All XLR-Type Audio Connectors
Rejects EMI and RFI Interference
Cross Linked PE Insulation
For Use with Handheld Mics & PA Systems

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Colored in a Black matte jacket, Canare's L-4E6S provides 100' of standard diameter, 21 AWG cable to fit within in all kinds of XLR-type audio connection points. It's designed to be utilized with PA systems and handheld applications, and features 40 separate strands in each conductor to eliminate breakage, making the cable quite flexible.

Braided copper shield

Flexible in extremely cold weather

Cross linked PE insulation

Reduced handling noise

Rejects EMI and RFI

Black matte color jacket

Reviews

Write Your Own Review

You're reviewing:Canare L-4E6S Star Quad Microphone Cable

Your Rating

Rating

1 star 2 stars 3 stars 4 stars 5 stars

Nickname

Summary

Review

items Included

Canare L-4E6S Star Quad Microphone Cable (100', Black)

Specification

More Information

SPECS

Applications	Microphones, portable applications, audio rack wiring, PA systems, and audio patch cords
Outer Diameter	0.2" / 6 mm, nominal
PVC Jacket Thickness	0.04" / 1.1 mm, nominal
Number of Conductors	4 (2 blue and 2 white)
Insulation	Type: IPE Thickness: 0.6" / 15.7 mm Dielectric Strength: 500 VAC/minute Insulation Resistance: 1,000 MOhms per 3' / 0.9 m
Conductor	AWG (AC): 24 (40/3.15 quantity/mm) Cross Sectional Area: 310 mm² AWG (Quad): 21
Pitch Twist Quad	0.8" / 20 mm
Shield Coverage	>95% TAC Braid
Conductor D.C.R.	<29.9 Ohms/1,000' / <9.8 Ohms/100 m
Shield D.C.R	<9.1 Ohms /1,000' / <3 Ohms/100 m
Nominal Capacitance	Between Twin Blue & White Conductors: 46 pF/ft / 150 pF/m Between Conductors & Shield: 57 pF/ft / 185 pF/m
Nominal Impedance	44 Ohms
Nominal Attenuation	0.9 V/1,000' / 0.3 V/100 m
Group Delay Time	1.80 ns/ft / 5.9 ns/m
Brittle Point	-56°F / -49°C
Length	1000' / 305 m
Weight	35 lb / 16 kg
