Canare LV-77S Video Coaxial Cable (500' / 152.4 m, Black)

Canare
SKU
LV-77S 153M BLK
image-icon
Request for Price
Add to Compare
Email



Key Features
  • Offers Good Signal Protection
  • For Broadcast Transmission
  • Solid Polyethylene Dielectric
  • 0.30" (7.7mm) Outside Diameter
  • Copper Braid Shield
  • Long-Lasting, Reliable, & Durable

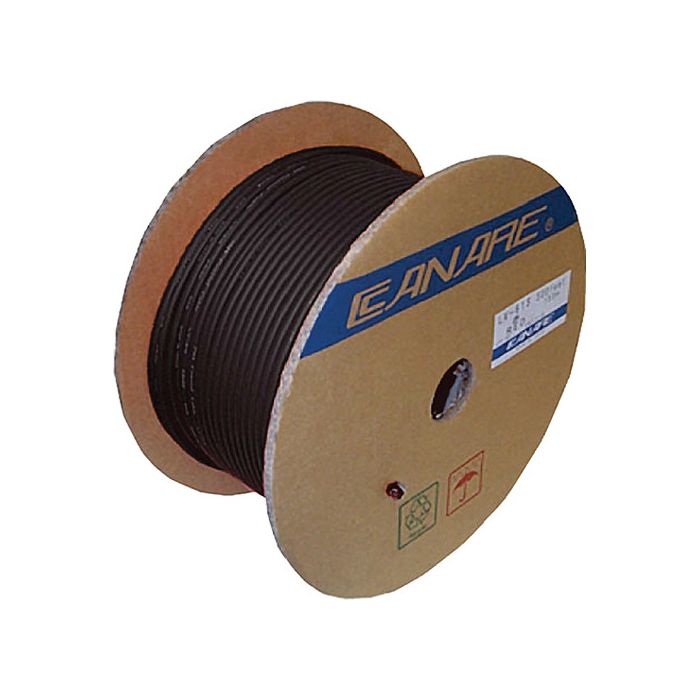

main product photo

The Canare LV-77S Video Coaxial Cable (500’ / 152.4 m, Black) is a professional-standard cable that offers good signal protection and is used for broadcast transmission and inter-rack wiring. This long-lasting and reliable cable has a solid polyethylene dielectric construction and is made of copper. The cable is double shielded for durability.

Long-lasting, reliable, and flexible cable for digital and analog broadcast transmission
ENG / EFP, inter-rack wiring
Offers good signal protection
Copper braid shield
Solid polyethylene dielectric construction
Double shielded for durability
0.30" (7.7mm) outer diameter
Black finish
Write Your Own Review
You're reviewing:Canare LV-77S Video Coaxial Cable (500' / 152.4 m, Black)
Your Rating
  • Canare LV-77S Video Coaxial Cable (500' / 152.4 m, Black)
More Information
SPECS
Length
500' (152.4 m)
Outer Diameter
Nominal: 0.30' (7.7 mm)
Conductor: 0.03" (0.7 mm)
Insulator: 0.18" (4.8 mm)
PVC Jacket Thickness
0.03' (0.9 mm)
Brittle Point
-22°F (-30°C)
Conductor
AWG (AC): 22 (7/10.24 quantity/mm)
Shield Material Coverage
AC >92% (inner), AC >95% (outer)
Conductor D.C.R.
At 1000': <15.3 Ω
At 100 m: <5 Ω
Shield D.C.R
At 1000': <1.8 Ω
At 100 m: <0.6 Ω
Nominal Capacitance
At 1KHz: 21 pF/ft (67 pF/m)
Impedance
75 Ω
Return Loss
>20 dB (DC to 2 GHz)
Length
SD Transmission Length at 270 Mb/s: 66%
Nominal Attenuation
At 10 MHz: 1 dB/1000' (3.4 dB/100 m)
At 67.5 MHz: 2.7 dB/1000' (8.8 dB/100 m)
At 100 MHz: 3.3 dB/1000' (10.8 dB/100 m)
At 143 MHz: 3.9 dB/1000' (12.9 dB/100 m)
At 220 MHz: 4.9 dB/1000' (15.9 dB/100 m)
At 360 MHz: 6.2 dB/1000' (20.4 dB/100 m)
At 440 MHz: 6.9 dB/1000' (22.6 dB/100 m)
At 750 MHz: 9 dB/1000' (29.4 dB/100 m)
At 900 MHz: 9.9 dB/1000' (32.3 dB/100 m)
At 1 GHz: 10.4 dB/1000' (34 dB/100 m)
Weight
32 lb (14.5 kg)
