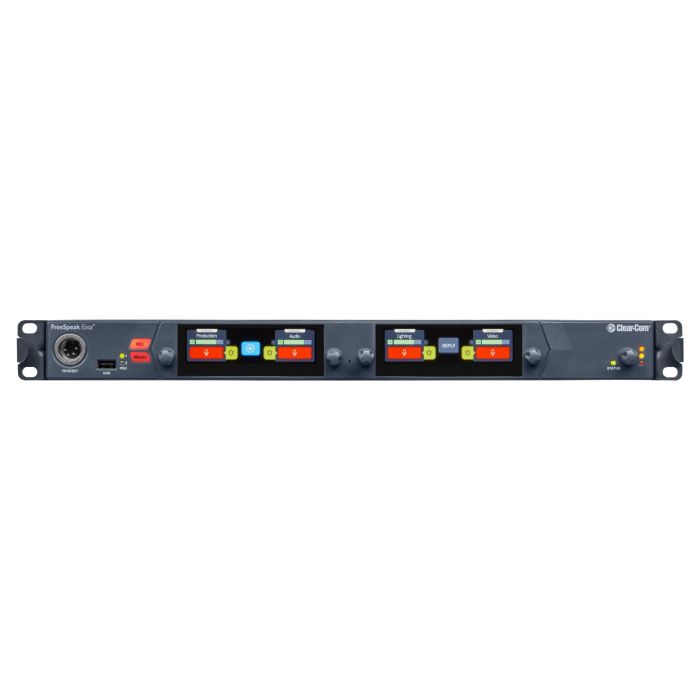

Clear-com FreeSpeak Edge Base Station

The FreeSpeak Edge base station is a standalone 1RU device that provides extensive connectivity to a wide range of Clear-Com endpoints along with third-party Dante devices. Built primarily to deploy 5 GHz transceivers and beltpacks, the base station also provides support to FreeSpeak II splitters, 1.9 GHz E1 and IP transceivers/beltpacks*, and 2.4 GHz E1 transceivers/beltpacks.

Please refer to the Clear-Com AoIP Network Recommendations guide for additional switch settings and network characteristics.

*Note: A 1.9 GHz beltpack cannot roam between and E1 1.9 GHz transceiver and an IP 1.9 GHz transceiver. Beltpacks on each system can communicate through the base station.

Capacity

• Supports up to 6 IPT or FSE transceivers and up to 10 E1 transceivers (1.9 or 2.4GHz)
• Supports up to 100 channels

Base Station

• Standard 1 rack unit (RU) device
• High quality 12kHz audio to FS Edge beltpacks
• 2 large full-color touch screen TFT displays
• 4 rotary encoders for gain and menu operation
• Headset connection
• Stage Announce and Prog. Audio cable included
• Functions as PTP Leader Clock

Connectivity

• Wireless 5GHz Edge transceivers and beltpacks
• Wireless 1.9GHz and 2.4GHz FSII splitters, transceivers and beltpacks
• Dante enabled audio devices
• AES67 devices via Dante controller
• 4-wire ports (8 ports RJ45)
• 2-wire ports (4 XLR-3F)
• GPIO (D-type 9 pin)
• LAN – 2 x RJ45, 2 x SFP

Configuration

• CCM browser-based configuration tool
• Direct management with encoders and display
