Clear-Com U-BOX-RJ45 4-Wire Enclosure for use with EB7-4W

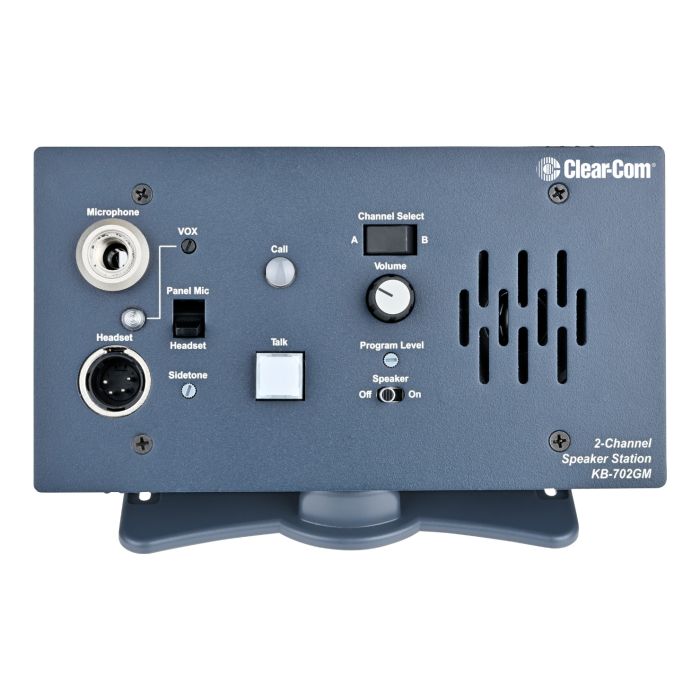

The U-Box is a highly versatile, robust enclosure to convert any Clear-Com KB 4-Gang sized speaker station into a desktop, shelf or wall mount unit for portable or permanent installation.
The etherCON RJ45 connector on the side of the U-Box is wired to connect to the internal EB7-4W option module and a generic external 4-wire device. A Power connector and wiring are provided for use with the external power supply (Part Number: PSU-EXT-003) which must be ordered separately.
To connect the station, plug the terminal block onto the pins on the station / daughterboard circuit board. All internal levels, jumpers or dip switches must be set according to the relevant User Guide before securing it in the U-Box Enclosure.
