Clear-Com U-BOX-X3 Encore Surface Mount

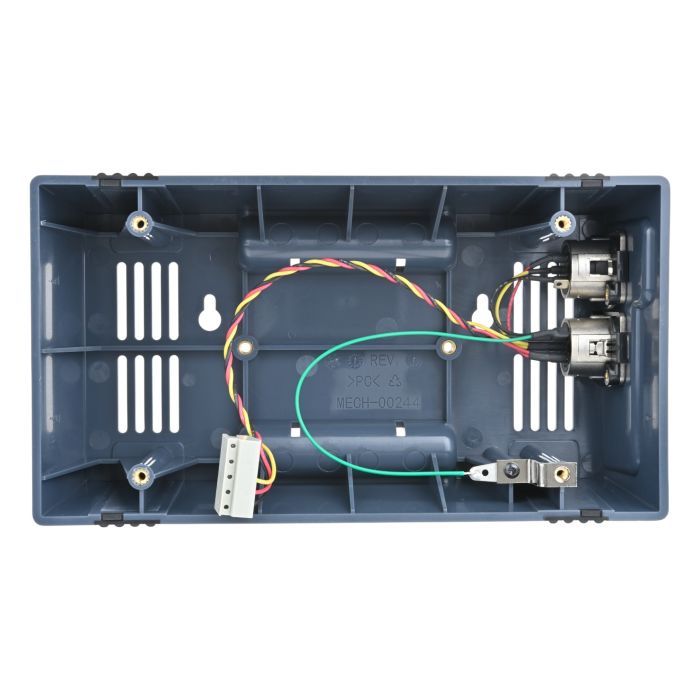

The U-Box is a highly versatile, robust enclosure to convert any Clear-Com KB 4-Gang sized speaker station into a desktop, shelf or wall mount unit for portable or permanent installation. The 3-pin male and female XLR connectors on the side of the U-Box are wired in parallel, which means the station can be series connected in a cable run with other Clear-Com stations. Typically, the female connector connects to the cable running from a main station or power supply and the male connector connects to other stations. Note: The U-Box-X3 connector harness wires Dual channel KB to Channel B of the intercom line for single channel KB compatibility. Moving the pin 3 wire to pin 2 of the terminal block connector wires the intercom line to Channel A on dual channel KB.
