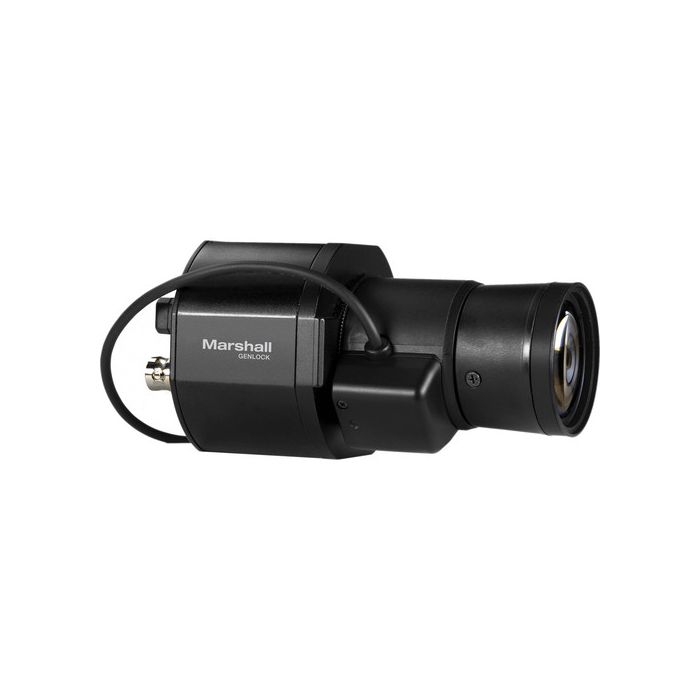

Marshall Electronics CV365-CGB 2.5MP Compact Genlock 3G-SDI / HDMI Camera

SKU
CV365-CGB
Request for Price
  • 1/3" 2.5MP CMOS Sensor
  • C/CS Mount with DC Auto-Iris Support
  • 3G/HD-SDI and HDMI Outputs
  • 1080p, 1080i, & 720p Output up to 60 fps
  • Breakout Cable with OSD Menu Joystick
  • Genlock Tri-Level Sync Input/Output
  • TRS Audio Input with 2.5V Power
  • RS-485 Control Interface
  • WDR, BLC, and 3D Noise Reduction
  • Privacy Masking and Motion Detection

Using Tri-Level Sync the CV365-CGB locks 3G/HD video signals (genlock) up to 1920x1080p @ 59.94/50/60 frames per second, as well as 1920x1080i @ 59.94/50/60fps and 1280x720p @ 59.94/50/60fps. Also featuring a 3.5mm TRS Mic-Level or Line-Level Input with 2.5V and broadcast convenient HDSDI/3GSDI (BNC) with additional HDMI (v.1.3) output. Marshall's Compact GENLOCK Camera Sync adds the convenience of Tri-Level Sync up to 1080p59.94/50fps at camera level to ensure seemless switch transitions. Built around next generation chipsets and higher performing sensors CV365 improves on every aspect of previous models. Capturing broadcast quality HD video from 2,476,296 pixels (2.5MP) of clear, crisp video at full-HD resolutions of 1920x1080i, 1920x1080p, 1280x720p & frame-rates of 60/59.94/50/30/29.97/25fps.

New proprietary pixel technology offers the lowest noise ratio on the market today capturing sharp, vivid color images in very low light conditions. Industry leading low power consumption draws very low power in full-HD resolutions. CV365-CGB PRO-Series POV Cameras continue to offer Field-of-View flexibility with interchangeable lenses. Expanded RS-485 protocols offer remote camera control (RCP) communication via VISCA and PELCO where commands can be sent without OSD Menu. Marshall PRO-Series Cameras continue to establish a broadcast standard for POV cameras with ease of use and broadcast centric feature sets.

CV365-CGB - Specification

More Information
Imaging System
Image Sensor:2.5 MP 1/3" CMOS
Effective Pixels:1920 x 1080
Horizontal Resolution:1,000 TVL
Min. Illumination:0.2 lux (Day), 0.1 lux (Night), 0.005 lux (DSS on)
Sync System:Internal
Lens Mount:C/CS with DC-Auto Iris
Video Output
Video Output Connectors:1 x 3G/HD-SDI (BNC)
:1 x HDMI 1.3a (Type A)
Output Formats:3G-SDI SMPTE 424M (2.97 Gbps)
:1920 x 1080p 50/59.94/60 fps
:
:HD-SDI SMPTE 292M (1.485 Gbps)
:1920 x 1080p 25/29.97/30 fps
:1920 x 1080i 50/59.94/60 fps
:1280 x 720p 25/30/50/59.94/60 fps
:
:HDMI
:1920 x 1080p 25/29.97/30/50/59.94/60
:1920 x 1080i 50/59.94/60
:1280 x 720p 25/30/50/59.94/60
Audio Input
Audio Input Connectors:1 x 3.5 mm TRS (on breakout cable)
Level:1 Vrms (2.5 V mic bias)
Bit Depth:16, 20, 24, 32 bit
Sampling Rate:48 kHz
Gain:-12 dB to 59.5 dB
Genlock Sync
Sync Input:Tri-level
Sync Output:Tri-level reference out
Control
RS-485:PELCO-P/D, SONY-VISCA protocol
:8-bit data, one stop bit, no parity, 2,400 to 115,200 bps
Functions
Exposure:Auto / manual
White Balance:Auto (3000 to 8000K)
:ATW (1900 to 11000K)
:Manual
Electronic Shutter:NTSC: 1/30 to 1/30,000
:PAL: 1/25 to 1/30,000
General
Power Requirement:12 VDC (7 to 15 VDC)
Maximum Power Consumption:6 W
Operating Temperature:14 to 122°F (-10 to 50°C)
Dimensions:2.36 x 2.36 x 2.2" (60 x 60 x 56 mm)
Weight:6.3 oz (180 g), without lens and I/O breakout cable
Packaging Info
Package Weight:1.295 lb
Box Dimensions (LxWxH):9.4 x 5.05 x 2.7"
Audio Input Audio Input Connectors
1 x 3.5 mm TRS (on breakout cable)
Video O/P Video Output Connectors
1 x 3G/HD-SDI (BNC)
1 x HDMI 1.3a (Type A)
  • Marshall Electronics CV365-CGB 2.5MP Compact Genlock 3G-SDI / HDMI Camera
  • Breakout I/O Cable
  • Limited 1-Year Warranty
